Renewables - Distributed Generation
-
Network Analysis for Renewable Systems
Integrated Power Flow, Short Circuit, Arc Flash analysis and more
-
-
DC Systems
DC Load Flow, DC Short Circuit, DC Arc Flash, Battery Sizing & Discharge Analysis
-
Dynamics & Transients
Transient Stability, Generator Startup, WTG Analysis, User-Defined Dynamic Models, Parameter Estimation, EMT software
-
-
Microgrid Energy Management System
Integrated software solution to monitor, predict and manage diverse power sources and multiple operating conditions.
-
-
Ground Grid Systems
Fast, accurate design and analysis of ground grid system & earthing mat
-
PV Array & Solar Panel
Model unlimited solar panels individually or in groups to form a solar array
-

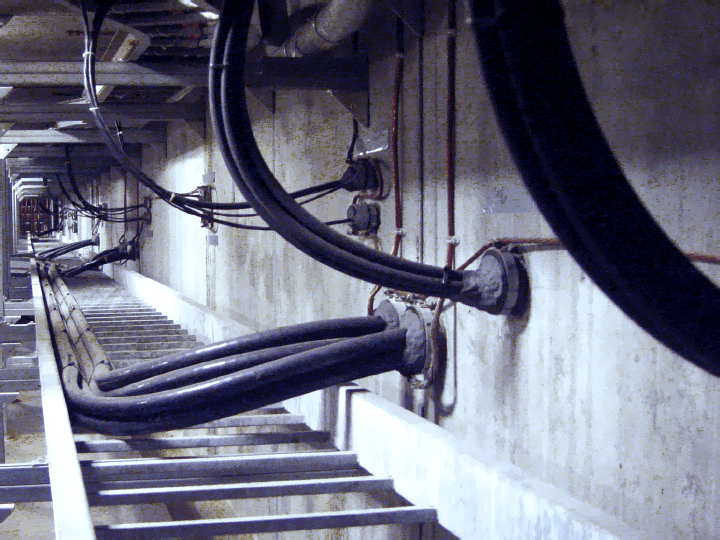

Cable Thermal Analysis
Design, analyze, and size cables in underground raceway systems
-
Battery Energy Storage Systems
The integration of Battery Energy Storage Systems (BESS) improves system reliability and performance.
Prediction of system response to operator actions
- Design, Analyze & Operate Green Energy Power Systems
- Perform Wind penetration studies
- Optimize Grid interconnection studies
- Generation Management System
- Wind turbine performance monitoring
- Solar panel & inverter performance monitoring
Related Renewable Products
Videos
Reactive Power based LCOE Analysis
High penetration of solar PV energy fed into an electrical grid brings its share of challenges making the grid volatile which requires stabilizing variable energy. This presentation addresses one such challenge, of voltage profile improvement with reactive power compensation at the point of interconnection. A solar PV plant is rated in terms of power (either AC or DC) and is typically not rated for their reactive counterparts (MVAr). IEEE 1547/UL 1741 compliant inverters will typically not have reactive power capability and operate with a unity power factor. Although modern inverters have a capacity to supply reactive power in the range of +0.9 lead/-0.9 lag, the PV plant is rated based on the AC power supplied by the inverter at unity PF. Operational data sourced from various plants in India suggest that a typical utility-scale PV plant provides reactive energy in the range of 7% to 10%. This leads to an inherent error in the per-unit cost calculation, as when the inverter providing the reactive power, the active power is hampered. This paper showcases a cost-to-benefit analysis of various scenarios, such as unity power.
Using ETAP to Evaluate Ground Fault Trips in a Microgrid
Adding distributed generation sources to existing power distribution systems and the implementation of islanding microgrid capability introduce protection and control challenges if not properly designed. Each new generator may present a new source ground fault current to the system, which can result in unanticipated breaker operation. Energy Systems Group, was using ETAP to model the system and check coordination of local and remote breakers can reduce downtime and troubleshooting.
Microgrid Design & Analysis
Microgrid Analysis & Design is an essential step for Microgrid Implementation. Upfront design and analysis of the target microgrid system, whether for brownfield or green-field Microgrid implementation, can help drive both technical and financial benefits, including determining optimized generation assets required to meet the microgrid objectives as well as a projection of return on investments. Analysis & design from safety, reliability, and financial perspective are critical for successful microgrid implementation to minimize the impact and rework during the installation phase. This presentation will provide recommendations on best practices for Microgrid Analysis & Design.
Stability Studies for Power Systems with DERs
As more Distributed Energy Resources (DERs) are added and mixed into the grid, the need to effectively evaluate and validate the dynamic response of power systems has become essential for grid resiliency, reliability, and security. In this webinar, learn how ETAP Transient Stability Analysis addresses needs and challenges of stability studies for power systems with integrated DERs.
Battery Energy Storage Systems
This webinar demonstrated how the integration of battery energy storage systems improves system reliability and performance, offers renewable smoothing, and can increase profit margins of renewable farm owners.
Photovoltaic Array & Solar Panel
An overview to photovoltaic array modeling and simulation using the ETAP software for solar panel sizing and grid impact analysis.

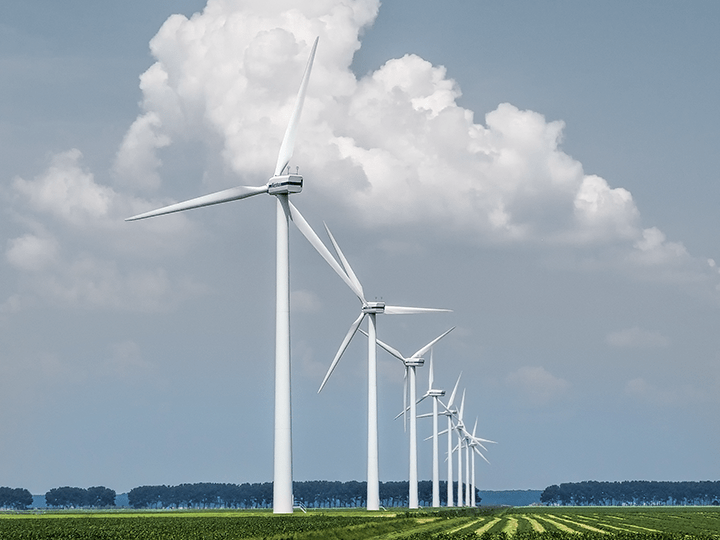

Wind Turbine
An overview of wind farm modeling and simulation using the ETAP Renewable module.
.png?sfvrsn=a242487c_11)
Intelligent Microgrid Management - Part 2
This webinar examines the microgrid controller’s architecture, hardware deployment workflow, and a range of advanced monitoring tools. Learn how ETAP Digital Twin platform enables the design and deployment of ETAP's Intelligent μGrid™ solution.
Intelligent Microgrid Management - Part 1
ETAP's μGrid™ solution combines model-driven microgrid controller hardware with advanced power management software to unlock system resiliency, optimized cost, security, and sustainability. This webinar focuses on microgrid design and software-based validation.
Generation Optimization for Microgrids
This webinar demonstrates how ETAP can help you optimally utilize limited power generation resources in an islanded or grid-tied microgrid environment.
Literature
ETAP Energy Storage Systems
ETAP Battery Energy Storage Systems solution helps improve system reliability and performance, offers renewable smoothing, and can increase the profit margins of renewable farm owners.
