Renewable System Analysis

Renewable Studies

Network Analysis for Renewable Systems

Integrated AC & DC Systems
Set of analytical tools that allow for analysis, prediction, design and planning of renewable energy system behavior utilizing an intelligent one-line diagram and the flexibility of a multi-dimensional database.

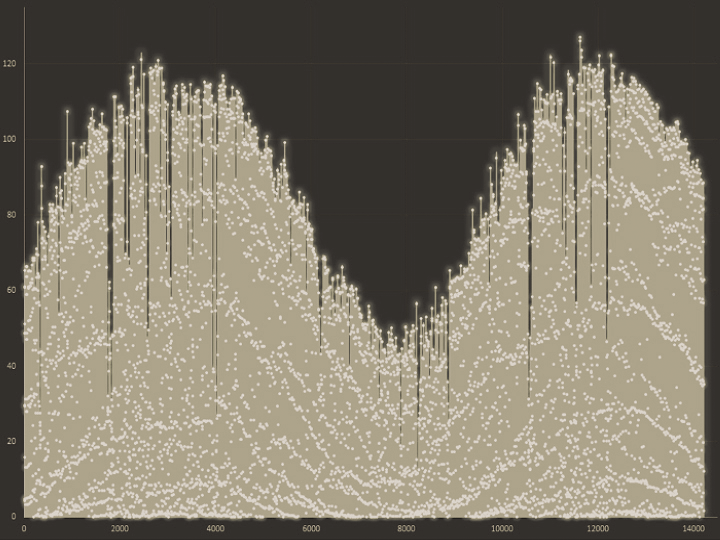

  • Time Series Unified Power Flow

    Time Series Unsymmetrical Unified AC & DC Power Flow

  • Short Circuit

    The Short Circuit module determines fault currents and automatically compares them against manufacturer ratings.

  • ArcSafety™ - AC Arc Flash

    Arc Flash software identifies and analyzes high risk arc flash areas in AC systems.

  • DC Arc Flash

    DC Arc Flash module calculates the incident energy for direct current networks.

  • DC Short Circuit

    Evaluate system fault conditions and assess protective device ratings for direct current systems

  • Harmonics

    Simulate harmonic current and voltage sources, reduce nuisance trips, and report distortion limit violations.

  • Situationally Intelligent Power Plant Controller

    The ePPC interfaces with the renewable inverters, battery energy storage systems, power conditioning devices & capacitor banks.
