Solve multiple power flows and compare results at a glance
Integrated and unified AC & DC network power flow
Define & analyze component outage and failure scenarios
The Short Circuit module determines fault currents and automatically compares them against manufacturer ratings.
Most comprehensive unsymmetrical system fault simulation module including simultaneous faults

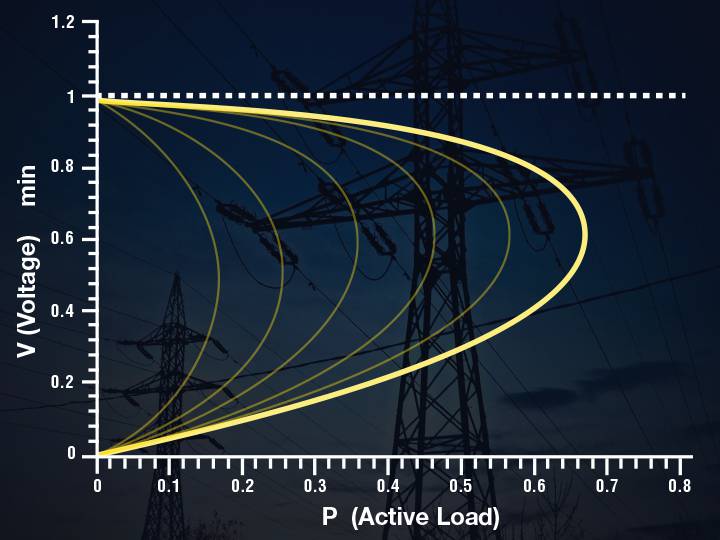

Accurately identify the system maximum load carrying capacity limits and reactive power compensation requirements
Grid Code Compliance Assessment evaluates compliance with utility grid code requirement
Learn how utility engineers use ETAP’s transmission & distribution system analysis and optimization solutions to optimize capacity planning and improve reliability and safety using schematic or geospatial views. ETAP Grid™ transmission system software integrates transmission network planning with detailed substation models, network topology processing, transmission system analysis, electric SCADA and real-time transmission network energy management system. For integrated distribution network analysis, system planning and operations solution it offers a progressive geospatial platform for simulating, analyzing, operating and optimizing the performance of Utility Smart Grids.
Managing electrical networks is a complicated balancing act between equipment from various vendors, new sources of power, and the increasing need for high-quality power. The digitalization of energy systems is key to providing efficient, reliable, and safe energy. The Electrical Digital Twin represents the physical components of the electrical network. Connected to field devices, the digital twin allows engineers and operators to manage assets throughout the project lifecycle, run what-if scenarios assessing equipment response under specific conditions and analyze & optimize settings and procedures in a safe virtual environment.
Arc flash analysis extends well beyond the scope of IEEE 1584 and NFPA 70E methodology for transmission, distribution, industrial and renewable energy systems. For many years, the industry has been lacking an ‘all-in-one’ solution for performing AC and DC arc flash analysis on LV, MV, and HV systems.
ETAP ArcFault™ analysis software is used for performing Arc Flash Analysis in compliance with OSHA’s requirements in OSHA 1910.269 Appendix E for electric transmission & distribution utilities and renewable energy power system, specifically for calculating arc fault incident energy for 15 kV and above.
