ETAP 2024, offers new digital twin modeling and simulation with an impressive new set of integrated power analysis modules, model-driven automation, and situationally intelligent operations solutions. To be more aligned with the release year, we are changing our naming convention to the year of the release and in addition proving you with the latest version number as well, so you can be assured you didn’t miss any of ETAP’s valuable releases and point releases. Supporting our customers technology and best practices in this release, you will find new and enhanced features to improve your safety, increase your reliability and efficiency, ensure compliance, and facilitate sustainability. ETAP 2024 is ready for use on Mission Critical applications, including Data Centers, Transportation, and Utilities, including Nuclear Power Generation.
Learn moreVersion | Release Date | Literature |
---|---|---|
2024.0.1 Nuclear / High-Impact / Commercial Edition | Nov 20, 2024 | View |
2024 Commercial Release | Jul 11, 2024 | |
2024 Beta Release | Aug 23, 2023 |
Design Solutions
-
Sustainability Analysis
Sustainability Analysis
Improve electrical designs with a new dimension
- Carbon emission footprint analysis (scope 2)
- Inspect the CO2 emissions of electrical network operations
- Specify emissions baselines
- Specify utilities across different world regions
- Select custom regions for islanded power systems
- Use real-time emission factors from ETAP’s cloud
- Combine historical data (time series) emission factors (marginal and average) with time-domain load flows
- Use static emission factors to simplify calculations
- Show rich dashboards for presentations
- Generate camera-ready Word reports
- Access raw results files in CSV
- Compare the footprints of several studies
-
AC Arc Flash
AC Arc Flash
Reduce risk, improve safety & enforce compliance
- ArcFault™ with Incident Energy Subtraction method
- Updated shock protection boundaries based on NFPA 70E – 2024 & CSA Z462 - 2024
- New NEC® label templates
- Improved AC & DC analyzer layout saving capability
- Enhanced AC & DC arc-flash calculators
-
DC Arc Flash
DC Arc Flash
Reduce risk, improve safety & enforce compliance
- Conductor erosion and DC Arc Flash arc elongation effects
- Transient DC AF for Stokes & Oppenlander and DGUV-I 203-077 methods
- Transient plots for arc current, arc energy, arc voltage, and incident energy
- DC arc-flash calculator transient plots (IEC-61660)
- Auto-update maximum and minimum DC Arc Flash bolted fault currents
- Enclosure reflectivity MF for Maximum Power method
-
Lightning Risk Assessment
Lightning Risk Assessment
Graphical lightning risk assessment
- Lightning risk assessment per IEC 62305-2 2010
- Graphical equivalent area analysis for complex structures
- Losses, risks, and economic assessment for multiple zones
- Consider the risk effect of surge protective devices, lightning protection systems, and equipotential bonding
- Considers buildings, structures, and valuables for economic loss
- Updated lightning frequency maps and flash density data sources
- Comprehensive LRA Excel reports
- Internal and external structure multi-zone validation
- LRA building project templates based on IEC 62305-2
- Consider multiple power lines, telecom lines, adjacent structures, and user-defined high and low-risk zones
- Scalable drawing area for larger structures up to 6 sq. km.
-
Unbalanced Network Frequency Scan
Unbalanced Network Frequency Scan

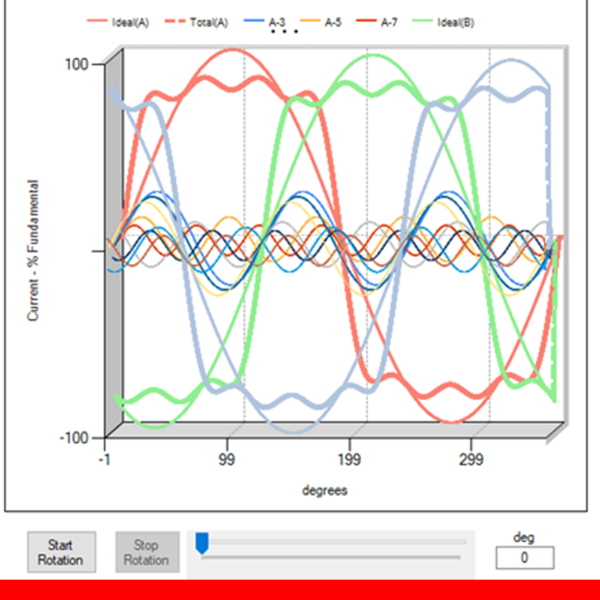

Comprehensive per-phase unbalanced network harmonic analysis
- Phase and sequence harmonic frequency impedance plots
- 1-Phase unbalanced harmonic analysis
- Unbalanced harmonic waveform & vector visualizer for "what-if" scenarios
- Short and long line modeling, skin effect, harmonic distortion limits evaluation per phase, plots per phase
- Includes harmonic mitigation & unbalanced correction using active & passive harmonic filters
-
Harmonic Analysis
Harmonic Analysis
Ensure compliance and improve power quality & reliability
- Simulate and analyze harmonic distortions for Inverter Based Resources (IBRs) based on:
- Total Rated Distortion and Reference Point of Applicability based on IEEE 1547 and IEEE 2800
- Compliance Rulebooks based on IEEE 1547 and IEEE 2800
- IEEE 519-2022 Compliance Limits and Harmonic Derating Evaluation for transformers & cables based on ANSI/IEEE C57.110-2012
- Transformer K-Factor evaluation based on C57.110-2018
- Enhanced Interharmonic Spectrum library capabilities
- Simulate and analyze harmonic distortions for Inverter Based Resources (IBRs) based on:
-
AC Control Circuit Diagram
AC Control Circuit Diagram
Simulation of AC single-phase circuits in control panels
- CPT or direct connection to one-line diagram
- All elements for AC Control Circuits
- Voltage drop calculations determining pickup and dropout voltages, power flows, and losses
- Operation logic event viewer and graphic simulation
- Sequence of Operation
- Detailed reports
- Engineering library data of Control Relay, Solenoid, and Contacts
-
Feeder Hosting Capacity
Feeder Hosting Capacity
Simulation and analysis of renewable energy hosting
- AI-based optimization method for fast hosting capacity
- Maximum and minimum hosting capacity
- Smart inverter's effect on hosting capacity
- Mitigation of minimum hosting capacity
- Host capacity limiting devices
- Hosting capacity graph
- DER impact
-

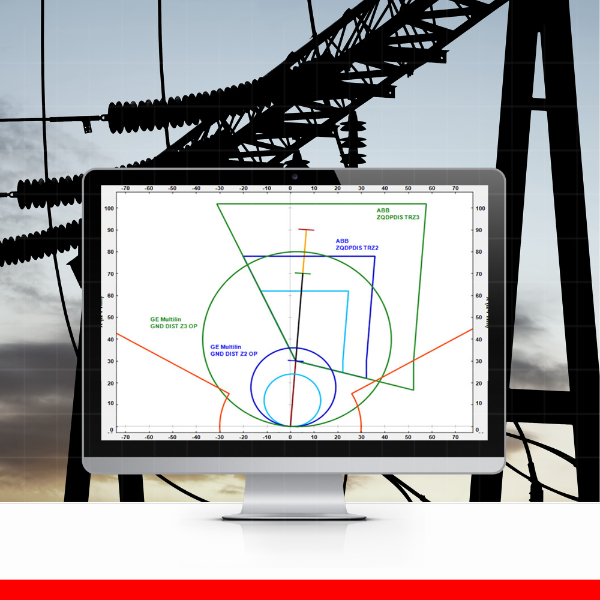

Unified Dynamics and Protection
Unified Dynamics and Protection
Simulate all protective devices in transient stability such as overload, overcurrent, differential, and distance functions
- Solve transient stability for all symmetrical components
- Simulates all protective devices supported in Star and StarZ
- Unified simulation to avoid complex configurations of separate protection and transient stability tools
- Relay performance evaluation during power swings, loss of excitation, cascading events, and many more
- Study wide area protection and control
-
Transient Stability
Transient Stability
Simulate and analyze the dynamic behavior of power systems under transient conditions
- Generator prime mover action
- Consider mutual coupling for transmission line
- Plots for Power Grid, 3W Transformer and Static Load
- Display current and voltage angles on a one-line diagram
- Calculate and report symmetrical components for grid code analysis
-
Alkaline Electrolyzer UDM Model
Alkaline Electrolyzer UDM Model
Simulate and analyze the transient effect on hydrogen production and storage
- Electrochemical Cell Behavior
- Electrolyzer Heating Process Thermal Characteristics
- Hydrogen Production and Storage
- Hydrogen Compression Components
-

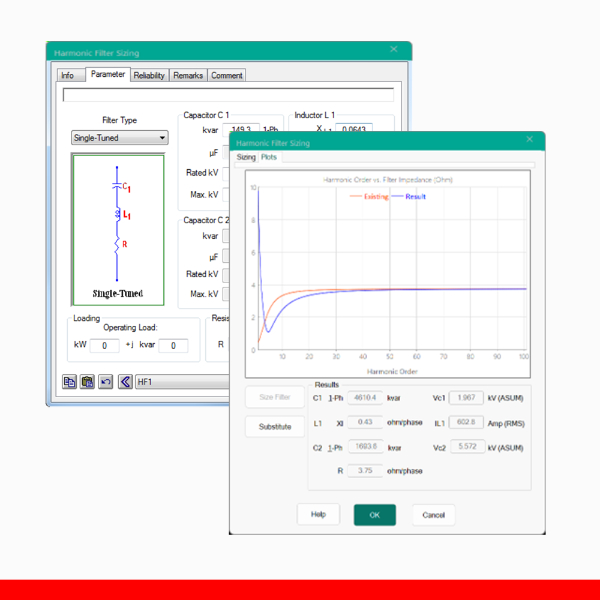

Passive Filter Sizing
Passive Filter Sizing
Improved harmonic distortion mitigation simulations
- Size High-Pass Damped, Third-Order C-Type & Damped Static Filters based on IEEE 1531-2020
- Existing and calculated filter impedance plots
- Size static filters based on power factor correction
-
Active Harmonic Filters
Active Harmonic Filters
Improve efficiency while improving power quality
- Digital twin modeling & simulation of active harmonic filters (AHF) or power conditioning systems (PCS)
- Model generic or vendor-specific active filters
- Establish harmonic targets based on current or voltage total harmonic distortion (THD)
- Fundamental power conditioning based on power factor targets, optimization, and load-balancing modes
- Automatically computes the harmonic injection based on control inputs from power and current transformers
-

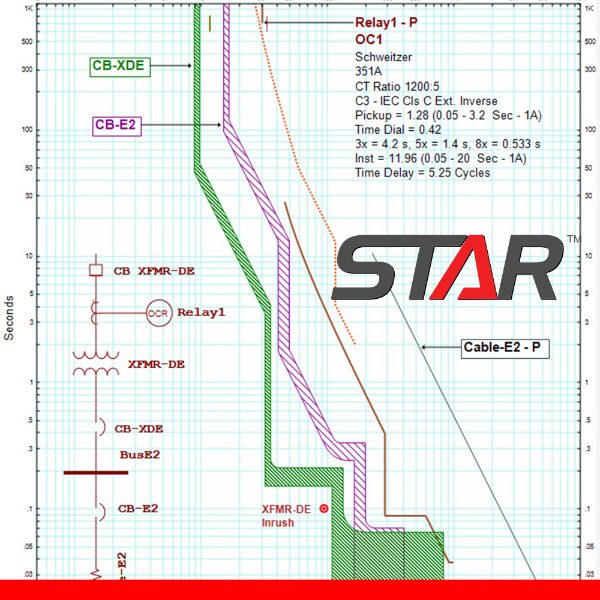

Star™ Protection & Selectivity
Star™ Protection & Selectivity
Fast paced and automated Protection & Coordination
- Energy & current limiting characteristics viewer
- Addition of energy & current limiting curves to MCCB
- Display of cable energy withstand capability
- Visual verification of cable size selection & protection
- Display of current limiting curves for fuse
- Selection and display of characteristics on the same graph
- Auto-Evaluation of cables based on let-through energy
- Evaluation of cable withstand vs MCCB let-through energy
- Verification of permitted voltage drop based on rule book
- Enhanced SQOP to support IEC 60909 steady state fault current
- Support of LL & LLG fault types and display in Star View
- Identification of Current Limiting Fuse and LV Breaker in editors
- Identification of Trip Units with ZSI capability in LV Breaker editor
- Energy & current limiting characteristics viewer
-
Engineering Library Models
Engineering Library Models
Verified & validated equipment libraries
- Energy and current limiting capability for MCCB
- 17000+ New Protective Device models
- 1000+ Fuses
- 500+ HV Circuit Breakers
- 14500+ LV Circuit Breakers & Trip Units
- 200+ Relays
- 1000+ Current Limiting MCCBs
- 3000+ New Cable, Harmonic Source, PV Array, and Coil models
- 1000+ Cables
- 2000+ PV Array
- 75+ Harmonic Distortion
-
Unbalanced Network Load Flow
Unbalanced Network Load Flow
Unified AC & DC unsymmetrical system power flow
- Compare and analyze results from multiple unbalanced load flow scenarios
- Protective device overload alerts on the one-line diagram and alert view
- Enhanced unbalanced network load flow result analyzer
- Algorithm enhancement for easier convergence of special systems
-
DC Capacitors
DC Capacitors
Waveform smoothing and energy storage
- Digital Twin modeling of DC Capacitors
- Rating per
- Cell
- Pack
- Bank
- Applied to DC system load flow, short circuit and arc flash studies
- Compliant with IEC 61660
-
Autotransformers
Autotransformers
Efficient voltage regulation where variable voltage is required
- Digital Twin modeling of Autotransformers for Two-Winding and Three-Winding transformers
- Impedance adjustment user-defined or based on tap position
- No load power loss and buried delta winding
- Eddy current loss consideration
- Fixed tap and automatic load tap changer settings
- Various grounding types
- Harmonic source and K factor modeling
-
ETAP License Manager
ETAP License Manager
Quick and reliable license access management
- Over 30 enhancements towards improved Cybersecurity profile
- Foundational updates to harden against Common Vulnerabilities and Exposures (CVEs)
- Enhanced reliability of automated license key exchange for easier and effortless installation
- Ensures that ETAP license management can be installed and present alongside other licensing services
-
GridCode™
GridCode™
Automated grid code compliance
- Automated grid code evaluation of
- Real and reactive power capability
- Harmonic distortion and resonance
- Capability Curve for wind turbine generators & inverters
- Power Plant Editor
- Define power plant active and reactive assets
- Reference point of compliance applicability
- Grid Code Rulebooks
- P-Q capability & equipment control
- Voltage ride through
- Voltage regulation
- Consider alerts during Grid Code PQ Capability analysis
- Global or individual assignment of
- Power dispatch priority
- Equipment capability curves
- Automated grid code evaluation of
-
GridCode™ Smart Inverters
GridCode™ Smart Inverters
Ensure compliance with grid code with modern smart inverter modeling & simulation
- Makes autonomous decisions to keep grids stable and reliable as more DERs come online
- Multiple modes of operation and control
- Volt – Var Control
- Volt – Watt Control
- Watt – Power Factor Control
- Reference Point Power Factor Control (leading & lagging)
- Passive Charging
- Supports rulebook and user-defined control curves
- Supports bi-directional flow and BESS systems
- Real or reactive power priority modes
- Includes smart inverter constraints
- Maintains compliance per IEEE 1547 and California Rule 21
-
Reliability Assessment
Reliability Assessment
Analyze the availability and cost of distribution systems
- Makes autonomous decisions to keep grids stable and reliable as more DERs come online
- Reliability library data based on
- IEEE 493-2007
- IEEE 3006.8
- Unbalanced load flow constraints for alternative sources
- Power supply capability of distributed generation
- All branch capability limits
- Load point minimum voltage requirements
- New system indices: NIEPI, TIEPI, ASIDI, and ASIFI
-
Techno-Economic Analysis
Techno-Economic Analysis
Complex analysis of the investment, operations, and financing of electrical power systems including reliability indices
- NPV or TLCC analysis methods
- Cost: Installation, Loss of energy and System power losses
- Straight line or declining balance depreciation
- Discount Rate, Inflation Rate and Tax Rate
- Report Cost-Benefit results through Internal Rate of Return (IRR)
- System or individual feeder analysis
-
eTraX™ Railway Power Systems
eTraX™ Railway Power Systems
Validated, user-friendly, and flexible software tools for designing, analyzing, and managing AC and DC railway infrastructure
- Zone and train mean useful voltage indices based on BS EN 50388-1: 2022 Annex B
- Informative and analytical substation and train summary reports
- Reports and plots supporting different unit systems
- Enhanced algorithm for better convergence and shorter simulation time
- Catenary and return conductor's mutual coupling
- Enhanced user-friendly interface
-
Cable Systems
Cable Systems
Calculate optimal and alternative cable sizes
- Enhanced Cable Manager capabilities
- Additions to the cable library
- Complies with the latest NEC standard
- Extended raceway dimensions beyond the Neher-McGrath method
-
Ground Grid
Ground Grid
Comprehensive, efficient, and safe approach to designing and analyzing electrical grounding systems
- Substation grounding design based on EN 50522 European Standard
- Enhanced conductor & rod library
Application Solutions
-
ETAP User Experience
ETAP User Experience
Modern ribbon, unifying intent & command
- Enhance productivity with personalized shortcuts, customized quick access buttons, and a fully adaptable user environment tailored to your unique preferences and requirements
- Colorize your way and switch between various color palettes to suit your working environment
- Big, bold ribbon interface simplifies feature navigation, surpassing traditional menus, including a centralized backstage area for file management, settings, and essential functions
- Component toolbox search and customizable favorites
-
ETAP Electric Copilot™
ETAP Electric Copilot™
Employ an AI engine to gain efficiency
- First version of Electric Copilot™
- Integrated AI Engine
- Natural language search
- Input data queries
- Load Flow Result analyses
-
ETAP Application
ETAP Application
Improved compatibility & security compliances
- Performance improvements
- Document tagging for linking and storing equipment information such as maintenance information, specifications, etc.
- Effortlessly drag and drop files and images directly into the one-line diagram
- Advanced context option to export energized component list
- Simplified component copy & paste via clipboard
- New shape annotations
- Convert text boxes into embedded QR Codes allowing dynamic access to annotations or links via mobile devices
- Animated GIF support
-
Digital Twin Elements
Digital Twin Elements
Foundation for network visualization of electrical networks
- DC Capacitor Digital Twin modeling & analysis for renewable energy systems and other applications
- Autotransformers (two-winding and three-winding) for transmission system applications
- Power grid single phase type selection for specific network phases
- Long line modeling of transmission lines and cables for transmission and submarine systems
- Enhanced smart inverter control capabilities for renewable energy systems
-
Intelligent Controllers
Intelligent Controllers
Renewable energy control systems including microgrids & power plant controllers
- Controller element for renewable energy modeling
- Microgrid & power plant controllers
- Hybrid and master power plant controller
- Inverters & energy storage controllers
- Import and automatic parameterization of 'black-boxed' DLLs
- Renewable energy control system modeling & analysis
- Ready to use controllers with user-defined parameters
- Renewables – Solar, Wind, Energy Storage System
- STATCOM, Fuel Cell, and Synch Check Relay
- Grid-following & grid-forming inverters
- Operator Training Simulator
- Interface to DNP3 server
-
etapAPI™
etapAPI™
ETAP RESTful API for interoperability
- Interact with ETAP using its built-in REST API
- Securely connect to ETAP from any device on a network
- Get ETAP project data and trigger ETAP commands and studies
- Interactive Swagger page allows testing API endpoints from a browser (no code necessary)
- Secure https connection
- A RESTful Python client is included in etapPy
- Create ETAP automations using scripting or your own programs against the ETAP REST API
- Reference documentation includes working examples for every endpoint
- New endpoints added in each release
-
etapPy™
etapPy™
Scripting & study automation using Python™
- Feature-rich ETAP-Python API and IDE for creating and executing python scripts
- Integration of ETAP and Python scripting language
- Run ETAP studies remotely and in parallel across machines
- Detailed reference documentation (descriptions, example code)
- Includes the ETAP API Python client
- Built-in Python REPL (shell) inside ETAP
- Working examples for every feature
- Run scripts from the ETAP UI or externally outside ETAP
-
Engineering Libraries
Engineering Libraries
Verified & validated equipment libraries
- Industry-standard for the most comprehensive V&V engineering equipment libraries. The latest library updates are included with this release & available for download from ETAP Help Center™
- Expanded engineering libraries – Over 20,000 new models
- New protective device models
- New cable models
- New solar panel models
- New harmonic distortion models
-
DataX™
DataX™
Accelerate digitization and data exchange through built-in conversions
- Schneider Electric ArcFM CIM Format File Import
- ArcFM network import to ETAP GIS View by using CIM format XML
- Automatic network generation in ETAP GIS View
- Intelligent default element/property mapping in Universal Mapping
- eXCAD – AutoCAD DWG Exchange
- Support for AutoCAD 2024
- Improved connections, scaling, fonts & alignment in exported DWG
- Added Peterson coil grounding symbols and new elements including UPS, DC Capacitor, 2-Winding Auto Transformer, and 3-Winding Auto Transformer
- Autodesk Revit Exchange
- Support for Autodesk Revit 2024
- AVEVA Data Exchange
- Support AVEVA Electrical 12.2 and AVEVA Engineering 15.7
- Enhanced load flow walking logic to handle multiple sources
- ESRI ArcGIS Data Import
- Support ESRI ArcGIS 10.8.1
- Enhanced intelligent connections for components
- Implemented phase & voltage propagation for missing data
- Excel Data Exchange
- Combined Excel Open Format and Excel Fixed Format import
- Enabled partial export to one-line diagram
- PSSE RAW Format Data Import
- Improved one-line diagram layout by reducing remote connectors
- SKM Import
- Enhanced built-in conversion from SKM PowerTools® to ETAP
- Improved automatic one-line diagram generation
- Enhanced library mapping
- EasyPower / ESA Import
- Built-in conversion from EasyPower to ETAP
- Enhanced automatic one-line diagram generation
- Enhanced library mapping and interface beautification
- New mappings for Synchronous Machine and Motors
- Schneider Electric ArcFM CIM Format File Import
Operation Solutions
-
eOTS™
eOTS™
Operator Training Simulator
Improve and augment operator and dispatcher training for electrical systems through real-world practical learning to support decision-making via "what-if" simulations for steady-state and dynamic system conditions.
- Efficient power system analysis by comparing graphical results from multiple studies
- Advanced high-speed Python Framework
- Available for all modules with plot-based reports
- Automatic sizing & sub-plot arrangements
- Tooltip & cross-hair based value tracking
- Interlock enforcement
-
AFAS™
AFAS™
Automated Fault Analysis Software
Operational and decision-support analysis software to analyze and locate the source of power disturbances and faults.
- Automatic fault information retrieval – COMTRADE
- Fault type, impedance & location identification
- Detect permanent versus temporary faults
- Graphical visualization & reporting of fault location
- Field data sequence of operation by relay, bay, substation & zone
- Compare sequence of operation between “as designed” and “as operated” cases
- Single-ended and double-ended fault location
- Line positive and zero sequence estimation
- Voltage Dip, Motor Start, Motor Stop, and Motor Acceleration detection
- Customizable detection logic for industrial applications
- Phasor, RMS, harmonics, power & frequency estimation
- Relay setting assistance via Python Scripting
- Automatic event report generation with model-based & rule-based root cause analyses
- Incident labels
- Integrates with ETAP eProtect™, eAPM™ & Outage Management System (OMS)
-
FLISR
FLISR
Fault Location Isolation & Service Restoration
- Network components capacity evaluation
- Forecasted affected area based on trouble calls
- Fault location based on trouble calls, FPI Signals, protective device data and COMTRADE files
- Integrated with ETAP AFAS engine
- Automated isolation, partial restoration, and full restoration switching steps
- Control inhibition on affected feeders
- Integrated switching order management
- SLD and GIS graphical Web/Workstation displays
- Distribution and industrial systems configuration
-
eSI™
eSI™
Proactive Situational Awareness
- Identifies potential problems under current conditions
- Predicts system contingencies before operator actions
- Validates continuous process changes and indicates out of normal conditions
-
eAPM™
eAPM™
Integrated Maintenance Management
- Access asset information via mobile device
- Manage maintenance with predefined maintenance groups and maintenance dashboards
- Create and manage work orders
- Integrated with ETAP Switching Order Management
- Centralized maintenance and work order calendar
- Integrated with ETAP Digital Twin
- Include procedures, test, and maintenance documentation
- SCADA visualization of scheduled maintenance works
-
etap ADMS
etap ADMS
Model-driven Planning, eSCADA, DMS & OMS Solution
Unlock the power of advanced distribution management with ETAP ADMS and empower grid resilience. Enhances grid reliability, responsiveness, and efficiency with real-time data, analytics, and control, ensuring a smarter and more resilient electrical distribution network.
- Volt/Var Optimization
- Advisory and supervisory modes
- HTML5 visualization dashboard
- Reporting and validation charts
- Outage Management System
- Crew management
- Dispatch app
- CIS integration
- SOM integration
- Reclosure support
- FLISR integration
- DMS Integration with Operating Conditions
- Feeder balancing
- Switching optimization
- Predictive simulation with distribution systems
- Situational intelligence with distribution systems
- AMI Integration
- Collection of AMI data
- Creation of profiles from AMI data
- Planning with AMI data
- Distribution Load Shedding
- Rolling brownouts
- Frequency and overload-based load shedding
- Event-based load shedding
- Volt/Var Optimization
-
eSCADA™
eSCADA™
Model-driven Electrical System Control and Data Acquisition
The gateway to intelligent electrical system control! Harness the power of your ETAP Digital Twin design by integrating real-time data to monitor and control your electrical infrastructure with an advanced, user-friendly solution, ETAP eSCADA. Effortlessly monitor, manage, and optimize your electrical infrastructure, ensuring not only reliability but also unmatched efficiency.
- HTML5 Web Client
- BIM visualization
- Load shedding events and monitor
- Enhanced trending
- Enhanced performance
- Energy accounting viewer and reports
- Complete alarm management
- Enhanced cybersecurity
- Enhanced GIS view
- Waveform viewer
- OMS outage details
- Crew management integration
- Alarm Management
- Email and SMS notification & acknowledgment
- Web-based interface
- Role-based authorization
- Intelligent alarm reasons
- User Defined Reports
- Predefined templates
- System level
- Shift change
- Alarm reasons
- Outage summary
- Python-based customization report
- Energy generation and usage reports
- Predefined templates
- HTML5 Web Client
-
ETAP DERMS
ETAP DERMS
Distributed Energy Resource Management System
Monitor, manage and optimize distributed energy resources to enhance the performance and reliability of the electrical network.
- Integrated hosting capacity analysis
- Microgrid central controller (MGCC)
- Integrated with ETAP ADMS for grid awareness, utility-scale DER management, operation & optimization
- Manage interconnections between DERS and the grid with a Hybrid Plant Controller
- Predictive analytics to anticipate potential issues and optimize resource allocation proactively
- Integrated with flexibility services & prosumer engagement platforms, including AutoGrid™ for program design, customer acquisition, enrollment infrastructure, notification dispatch, measurement and verification
Automation Solutions
-
µGrid™ Controller
µGrid™ Controller
Model-driven Microgrid Control & Management
An integrated model-driven design software and control hardware solution to develop, simulate, optimize, validate, and control microgrids.
- Rule-based & optimal dispatch of microgrid resources
- Grid-connected and islanding control & management
- Secondary voltage and frequency control in islanded operation
- Automatic and user-defined black-start
- Support soft energization of BESS during black-start
- Generation & load forecasting
- Performance testing & validation
- Model-driven configuration and testing software tool
- Multi-networked and nested microgrids
-
ePPC™
ePPC™
Model-driven Power Plant Controller
Model-driven renewable power plant control and management with SCADA visualization, predictive analysis, optimization, and forecasting.
- Control & manage hybrid power plants
- Active & reactive power control for multi-networked power plants
- Dispatch based on priority by device type or zone selection
- Energy storage management
- Power smoothing
- Supports software-in-the-loop (SIL) and hardware-in-the-loop (HIL) testing and simulation
- Design & operate for grid code compliance
- Performance testing & validation
- Model-driven configuration and testing software tool
Cloud Solutions
-
eProtect™
eProtect™
Centralized Web-based protection & asset management
Solution for relay settings change management to manage location, information, and settings throughout the lifecycle of protective relays and substation assets.
- Increased data quality & access management
- Automatic notification, processing & relay settings file generation
- Protection setting synchronization between a physical relay & ETAP Star protective device coordination
- Integrated with ETAP Automated Fault Analysis Software (AFAS)
- Station level reporting and settings grouping
- Bulk settings importing and relay settings validation
- Workflow management
-
NetPM™
NetPM™
Network project management for collaborative tasks
NetPM allows for the simultaneous work of multiple engineers and teams on a shared project, enabling efficient coordination and project execution. ETAP NetPM is particularly beneficial for large, complex projects involving multiple stakeholders and disciplines. It enhances the efficiency and accuracy of power system analysis, design, and operation, ensuring that large teams can work together effectively while minimizing errors and optimizing project outcomes.
- Improved performance and optimization for distribution systems
-
eWeb™
eWeb™
Web-based simulation, monitoring, and reporting
Enhancements to ETAP’s Web-based simulation, monitoring, and reporting provide a new era of flexibility, efficiency, and productivity in your electrical engineering projects. Harness the full potential of your electrical systems from anywhere, anytime.
- HTML5/JS based Web interface
- Unbalanced load flow simulations
- Asset management, relay management, and AFAS interface
- Real-Time Dashboard integration
- Crew management, scheduling, and dispatching
- Reports and work orders
-
Cybersecurity
Cybersecurity
Modern internet-facing application security
Improved hardening and protection of application security, including encryption of passwords, messages, memory corruption vulnerabilities, and transport security.
- ETAP License Manager
- Mobile Field Data Collection & Synchronization (etapAPP)
- Network Project Management (NetPM)
- ETAP Real-Time eSCADA HMI Viewer
- ETAP Real-Time eWeb Dashboards
Mobile Solutions
-
etapAPP 8.0
etapAPP 8.0
Mobile field data collection & synchronization
Increase accessibility to ETAP projects for data collection and verification with the updated version of etapAPP™, a tablet application made for field engineers.
- Effortless Sharing with One-Line Diagram Export
- Flexibility to choose the format (PDF, PNG, SVG, JPG, etc.) that best suits your needs, whether you want to share a high-resolution image, a vector-based diagram, or a standard PDF file. It's all at your fingertips.
- Undo Changes – It's all covered
- Effortlessly reverse any changes made during your project. Whether adding, deleting, connecting, disconnecting, rotating, relocating elements and annotations, resizing buses, or modifying element property data.
- Image Capture & Assignment - Made Easy
- Capture multiple images in one go, import them in batches, display them in a carousel, and even let our system automatically assign names to make organization a breeze.
- User Interface Improvements
- Simplified user experience including ergonomic button layout, text box search, conduit size selections based on English and Metric units.
- Also Available on:
- Effortless Sharing with One-Line Diagram Export
ETAP 2023 version 22.5, offers new digital twin modeling and simulation with an impressive new set of integrated power analysis modules, model-driven automation, and situationally intelligent operations solutions. To be more aligned with the release year, we are changing our naming convention to the year of the release and in addition proving you with the latest version number as well, so you can be assured you didn’t miss any of ETAP’s valuable releases and point releases. Supporting our customers technology and best practices in this release, you will find new and enhanced features to improve your safety, increase your reliability and efficiency, ensure compliance, and facilitate sustainability. ETAP 2023 version 22.5 is ready for use on Mission Critical applications, including Data Centers, Transportation, and Utilities, including Nuclear Power Generation.
Learn moreDesign Solutions
-
Unbalanced Network Harmonic Analysis
- 3-Phase unbalanced harmonic power flow and compliance indices​
- 1-Phase unbalanced harmonic analysis​
- Includes balanced & unbalanced library distortion sources
- Unbalanced harmonic waveform & vector visualizer for "what-if" scenarios
- Short and long line modeling, skin effect, harmonic distortion limits evaluation per phase, plots per phase​
- Includes harmonic mitigation & unbalanced correction using Active Harmonic Filters​
-
Active Harmonic Filters
- Digital twin modeling & simulation of active harmonic filters (AHF) or power conditioning systems (PCS)​
- Model generic or vendor specific active filters ​
- Establish harmonic targets based on current or voltage total harmonic distortion (THD)​
- Fundamental power conditioning based on power factor targets, optimization and load balancing modes​
- Automatically computes the harmonic injection based on control inputs from power and current transformers​
-
Energy Reducing Line Side Isolation - ArcBlok™
- Digital Twin modeling of Energy Reducing Line Side Isolation devices (ArcBlok™)​
- Reduce the possibility of an arc flash by isolating the line-side electrical conductors ​
- Limit the impact of line side arcs ​
- High-speed arc extinguishing response​
-
Arc Suppression or Peterson Coil
- Digital Twin modeling of Arc Suppression / Peterson / Ground Fault Neutralizing Coil
- New grounding type
- Two-winding
- Three-winding power transformers
- Zigzag grounding transformers
- Automatically determines the ground fault impedance (zero sequence) to reduce arc resistance and extinguish arc
-
Cable Manager
- Cable Manager with expanded reporting capabilities​
- Ability to handle more than 9 cables per conduit or location​
-
Star - Graphical ZSI
- Zone Selective Interlock (ZSI) Manager and graphical display​
- Display interlocks for selected protective devices​
- View ZSI graphical interlocks in single or multiple single line presentations ​
- Customization of graphical interlocks using ETAP Theme Manager: Output Restraint Signal, LV Breaker Box, Terminals and Remote Interlocks​
- Customize line style, width, color, annotation and font styles​
-
Unbalanced Network Load Flow
- AutoRun™ feature when system or study setting is changed
- Added support for 1 phase systems in PlotAnalyzer™
- Enhanced GIS calculation and display
- Improved networks under VFD - no-load, parallel and meshed network
- Now supports capability curve for renewable sources
- Optimized performance for solar panel and inverter control, now converges better and faster
- Now supports user-defined python report in report manager
- Unbalanced Network Load Flow Result Analyzer
- Analyze multiple unbalanced load flow scenarios in MS Excel
- Bus and branch loading analysis
- Protective device loading analysis compared to pickup settings/ratings
-
ArcSafety™
Evaluate Arc flash based on IEC 60909-2016 Std.
- ArcFault based on IEC 60909-2016
- IEC Arc flash Decay
- IEC Single Phase Arc Flash
AC & DC Arc flash based on DGUV-I203-077 Std.
- Schau. H; Halinka. A
- DGUV-I203-077 (Worst-case)
DC Arc Flash
- Generation Categories
- Single-Diode/Two-Diode I-V, PV Systems
Arc Flash Auto™
- Single pole effect on 3-Phase fault transforming to a LL fault until deenergized
- Global Rulebook option to automatically skip nodes
Arc Flash Calculators
- DC Arc flash
- Arc elongation for PV Systems
- Arc erosion for various conductor sizes
- Transient DC Arc Flash Plots
- German Arc flash
- Iterative method
- DGUV-I203-077 (Worst-case)
- Arc elongation effect for PV systems
- Arc erosion for various conductor sizes
Arc Flash Ease of Use
- Completely Redesigned Study Case
- Result Analyzer with TCC Analysis Tools
-
Localized Shock Risk Assessment
Regional electrical worker safety standards:
- USA NFPA
- Canada
- Mexico
- Brazil
- Russia
- China
- Australia
- Europe IEC
- Austria
- France
- Greece
- Germany
- Italy
- Spain
-
eLabelMaker™ for AC & DC Arc Flash Labels
- Graphical tool for creating Arc Flash Label templates
- Create modern Arc Flash Labels
- Include QR codes
- Localized labels
-
Lightning Risk Assessment
- Identify & assess risks for a structure due to lightning flashes
- Comply with standards for Lightning Protection Systems
- NFPA 780 2014
- Lightning Density / Frequency Maps
- Occupancy & protection assessment
- Predefined structure
-
Time Domain Load Flow (TDLF)
- Supports Smart Inverter, STATCOM, SVC, VFD
- Graphical Results & Plots for SVC, STATCOM & VFD, Induction & Synchronous Motors
- Expanded AC/DC element plot parameters
- Millisecond time scale enhancement
- Improved networks under VFD - no-load, parallel and meshed network
- User-defined Python report
-
GridCode™
- Automated Grid Code Evaluation
- Analyze and Verify
- Real & reactive power capability
- LV & HV Ride-Through
- Frequency Ride-Through
- Dynamic Voltage & Frequency Support
- Rulebooks
- Grid Code PQ, VQ Capability
- Equipment voltage-dependent PQ Capability
- Equipment Control – Voltage & Frequency Droop
- Ride-Through Curves
- Country Codes
- ENA EREC G99 2021 (UK)
- ENA EREC G5/5 2020 (UK)
- IEEE 1547 2018
- PRC-024-2 (North America)
- Enedis-PRO-RES_64 2020 (France)
- RTE_DTR 2020 (France)
- Guida Tecnica - Allegato A.68 - Rev.03 12/2019 (Italy)
- Guida Tecnica - Allegato A.17 - Rev.02 12/2019 (Italy)
-
Smart Inverters
- Autonomous logic-driven decision making
- Multiple modes of operation & control
- Volt – Var
- Volt – Watt
- Watt – Power Factor
- Control Curves or Static Var Support
- Real or Reactive Power Priority Modes
- Include smart inverter constraints
- Maintain compliance per IEEE 1547 and California Rule 21
-
Intelligent Controllers
- Short, medium to long-term planning and assessment
- Primary, secondary and tertiary controls
- Dynamic modeling of equipment controllers
- Vendor Black-Box DLL interface
- Ready-to-use with configurable parameterization
- Wind Turbine, Solar Inverters, Energy Storage Systems, STATCOM
- Hybrid Power Plant / Station Controller for secondary control
- Grid Following & Grid Forming Inverters
- Microgrid Controller, Gateway, Synch Check Relay
- Operator Training Simulator
- Grid Code Analyzer
-
Reliability Assessment
- Improved visualization with Datablocks
- Enhanced plotting with GIS Diagram
- Enhanced handling for STATCOM, SVC, UPS, and Wind Turbine
-
Unbalanced Network Short Circuit
Unbalanced Network Short Circuit Analysis International Standards:
- IEEE Standard – C37 Series
- IEC Standard – IEC-60909, IEC-61660 & IEC/IEEE 62271-37-013
- GOST Standard - GOST R 52735 & GOST 28249
Unsymmetrical Three-phase & Single-Phase AC System and Unified AC & DC System Modeling
- Phase domain representation of 3-phase & single-phase systems
- Modeling of unsymmetrical 3-phase lines & cables, etc.
- Modeling of coupled 3-phase and single-phase lines
- Modeling of special distribution transformers (open-delta, Scott-T & booster XFMRs, etc.)
- Unified AC & DC systems combined with rectifiers/converters
- Analysis of a fault in DC system automatically includes effect of AC system components and vice versa
Short-Circuit Simulation for Shunt Fault Types
- Fault types - 3Ph, 3PhG, LG, LL, LLG
- Fault phases – ABC, ABCG, AG, BG, CG, AB, BC, CA, ABG, BCG, CAG
- Simultaneous shunt faults of different fault types & phases at different locations
Short-Circuit Simulation on GIS System
- Fault calculations on user specified shared buses
- Fault calculations along user specified feeders
- Feeder fault calculation on all junction points or multi-connection junction points
- Device evaluation for protective devices in GIS systems including ones specified in edge editors
AC & DC Device Duty Evaluation
- ANSI/IEC AC device duty evaluation based on all fault types - 3-phase, LG, LL, & LLG
- ANSI/IEC AC device duty evaluation based on all available fault phases
- IEC-61660 DC device duty evaluation considering rise-time constant and peak or quasi steady-state current
- ANSI DC device duty evaluation based on user specified worst case modeling
ANSI & IEC Standard AC Short Circuit Analysis
- Complying with latest version of ANSI & IEC standards
- Simulation of all possible types and phases shunt faults
- Simulation of single shunt or simultaneous shunt faults of different fault type & phase and at different locations
- Device duty evaluation based on all fault types and phases
- Alerts generated in device duty evaluation for any parameter violation based on all fault types and phases
GOST Standard AC Short Circuit Analysis
- Complying with GOST R 52735 (AC HV) & GOST 28249 (AC LV)
- Adjust cable resistance due to fault current
- Induce effect of arc resistance at fault location
- Consider contact resistance and relay coil impedance in LV system calculations
- Provide various options for AC decay of synchronous and induction machines
- Generate fault current waveforms as function of time
DC System Short Circuit Analysis per IEC-61660
- Calculate current waveforms for the total fault current and individual contributions
- Fault calculations include peak current, quasi steady-state current, time to peak and rise-time constant
- Device duty evaluation on rise-time constant and fault current, peak or quasi steady-state current at users’ choice
- Capable of handling radial and looped systems with multiple sources
Generator Circuit Breaker Duty Evaluation
- Duty evaluation per IEC/IEEE 62271-37-013 if the IEC/IEEE standard option selected from editor
- Duty evaluation per IEEE C37.013 if the ANSI standard option selected from editor
Short Circuit Result Report & Visualization
- Short-Circuit results displayed in both OLV & GIS views
- Datablock for rating information and results displayed in both OLV & GIS views
- Underrated devices alerted by color in OLV and for shared devices in GIS view
- Current waveforms generated for GOST AC system fault calculations
- Current waveforms generated for IEC-61660 DC system fault calculations
- Reports generated for all short circuit analysis with detailed results
-
Power System Optimization
Switching Sequence Management (SSM)
- Validation of switch plans using Unbalanced Power Flow
- Simulate switch plans on One-line or GIS Diagram
- Export sequence plans to MS Excel
- Export plans to online Sequence Management Viewer
Switching Optimization
- Alert & visual display on One-line & GIS Diagram
- Enhanced modeling for switched capacitor banks
- Enhanced Feeder Balancing & Optimize Voltage objectives
- New Phase Load Balancing objective
Volt/Var Optimization
- Alert visualization on GIS Diagram
- Enhanced modeling for switched capacitor banks & distribution transformers
Fault Management & Service Restoration
- Improved Minimize Overloading & Optimize Voltage objectives
- Voltage vs Distance plot for each phase
-
FlickerMeter
- Instantaneous, Short-Term (Pst) & Long-Term Flicker (Plt) indices
- Electromagnetic compatibility (EMC) - IEC 61000-4-15
- Signal processing capability
- COMTRADE / CSV input
- Analyze 20 simultaneous signals
- 500 million data points (6.5 GB file size)
-
Harmonic Analysis
- Total and Displacement power factor
- Transformer derating considering Eddy Current losses (ANSI/IEEE C57.110-1986)
- Cable Derating based on Harmonic Distribution Factor
- Capacitor Overload Alerts based on IEEE 18-2012
- Enhanced Harmonic Library Editing Functions
- Zero sequence Harmonic Frequency Scan
- Harmonic Emission Limits:
- AS61000: National Electricity Rules
- AS61000: Victorian Electricity Distribution Code
- ENA EREC G5/5 2020: British Harmonic (updated)
- ENA EREC G5/5 2020: British Harmonic: Compatibility Levels (updated)
-
Star™ Protection & Selectivity
- Automated Coordination Evaluation beyond Min Time
- Protective Device User-Defined Fields
- Template Editor with Import & Export Capability
- Data Manager with editing capability of any device in any revision data
- Report Manager with preview & comparison of UDF values and creation of Excel Report
- Star Sequence of Operation Slider
- Ignore Maintenance Switch in Sequence of Operation
- Star View TCC Enhancements
- Motor Line & Terminal acceleration curve
- Minimum Time Area
- Visible/Invisible Curves from right-click menu
- Find Min Time Difference in Normalized View
- Visibility and display enhancements
-
StarZ™ Distance Protection
- Simulate protection impact based on Unbalanced Faults - AG, BG, CG, AB, BC, CA, ABG, BCG, and CAG
- Integration with eTraX™ for railway system protection simulation
- Create and Manage Star Views / TCCs in StarZ mode
- Normalized TCC based on StarZ Single-fault report
- Enhanced library including user-defined comparators & digital source stencil
- Vendor specific transformer/bus/line differential relay
- Single phase distance relay for special application, eTraX
-
Current Transformer Saturation
- Export to Excel
- Result Plots
- Transient Short Circuit Plots
-
Dynamics
Transient Stability
- Unbalanced faults (LG, LL, & LLG) for Branches
- Fault impedance for Bus and Branch faults
- Utility new voltage actions for Voltage Ride Through – LVRT & HVRT
- Generator frequency action
- New frequency estimation method, with voltage blocking for frequency relay action
- Improved convergence speed
- Inverter charging/discharging state
eMTCoSim™
- Co-simulate Phasor and Electromagnetic Transients with ETAP eMT 5.0
User-Defined Dynamic Models™
- UDM for Inverter with Norton / Thevenin Network Interface
- Renewable Energy and Grid Forming Inverter Models
- Enhanced UDM Model Library with Renewables
-
Cable Systems
- Protective & Neutral Conductor Sizing tables:
- BS 7671
- IEC 60364
- NF C15-100
- Cable model forms
- BS 7671:2018+A2:2022
- Energy capability K2S2 for each conductor (Phase, Neutral, PE)
- Max. possible energy based on short circuit & device settings
- New conduit types and enhanced annotations for Underground Raceway Systems
- Protective & Neutral Conductor Sizing tables:
-
Transportation, Railways
Design, Analysis & Operation of AC & DC Systems
- Multiple train type categories & speed limits
- Lock track length in a geospatial view
- Speed limit error check for multiple train types
-
Data Exchange
Legacy Conversion Tools
- SKM Import
- Enhanced built-in conversion from SKM PowerTools® to ETAP including DC Systems
- Improved automatic single-line diagram generation
- Power Analytics / EDSA Import
- Built-in conversion from Power Analytics® / EDSA®
- Automatic single-line diagram generation
- EasyPower / ESA Import
- Built-in conversion from EasyPower to ETAP including support of MCC Loads
- Automatic single-line diagram generation
DataX™ AVEVA® with AVEVA® Data Exchange
- Data exchange with AVEVA Engineering 15.1
DataX™ ESRI ArcGIS® with ESRI ArcGIS® Data Import
- ESRI ArcGIS import in Universal Mapping
eXCAD™ – AutoCAD® DWG™ Exchange
- Accelerate design & generate digital design deliverables from ETAP to AutoCAD
- Improved automatic single-line diagram generation from AutoCAD to ETAP
- SKM Import
-
iSLD™ – Intelligent Single-Line Diagram
- Result Animation
- AutoComplete™
- Network Manager
- Equipment Resizing
- Composite Networks
- Create & Expand Composite Networks
- Hide & Show Elements
-
Geospatial Electrical Diagram
- Substation Diagram
- Relay & Instrumentation with iSLD Synchronization
-
etapPy™ – Scripting & Study Automation using Python™
- Integration of ETAP and Python scripting language
- Run ETAP studies remotely and in parallel across machines
- API expansion, including automation of
- Switching Optimization
- Unbalanced Short Circuit
- Contingency Analysis
- API expansion, including automation of
- Detailed reference documentation (descriptions, example code)
-
etapAPI™ – ETAP RESTful API for Interoperability
- Connect to ETAP from any device, any platform
- ETAP services over REST API
- Secure connection (https) to DataHub™
- Readily implemented as a Python client in etapPy
- Run scenarios, studies, get project data, all from your tools
-
Improved Compatibility & Security Compliances
- Updated Equipment Editors
- Improved high-resolution display support
- More responsive and performance improvements throughout
- Username & access role display on the application title
- Copy textbox to clipboard for other applications
-
Digital Twin Elements
- Enhanced Controller to include Inverter dynamics
- Transformer grounding impedance for 2-W, 3-W, and Zigzag grounding transformers
-
Verified & Validated Models
Verified & Validated Equipment Libraries
- New Protective Device models (8,500+)
- LV Circuit Breakers
- LV Trip Devices
- Fuses
- Relays
- Solar Panel models (4,000+)
- Cable Models
- New Protective Device models (8,500+)
-
Protective Devices
Digital Twin Elements for Modeling Network Protection
- Medium Voltage Circuit Breaker
- Generator Breaker category - IEC/IEEE 62271-37-013 Std.
- Quick-Pick with sorting & filtering
- Low Voltage Circuit Breaker
- Expanded short circuit ratings
- Slash Rating for ANSI molded case breakers
- Individual-Pole Interrupting Rating for ANSI & IEC
- Display of ZSI availability in Quick-Pick
Operation Solutions
-
eOTS™ – Operator Training Simulator
Operator Training Simulator
- Ensure operator readiness & foreplan contingencies
- Increase operator competency & audit productivity
- Improve system safety & security through real-world simulations
- Validate design using steady-state & dynamic simulation
- Faster startup & shutdown times
- Reduce planned turnaround time
- Minimize outages due to operator errors
-
AFAS™ – Automated Fault Analysis System
Automated Fault Analysis System
- Operational and decision-support analysis software to analyze and locate the source of power disturbances and faults.
- Automatic fault information retrieval – COMTRADE
- Enhanced COMTRADE handling: variable sample rate, a secondary factor of zero
- Fault type, impedance & location identification for branches including lines and cables
- Fault type, impedance & location identification for other branches including transformers, generic impedance, etc.
- Detect permanent versus temporary faults
- Graphical visualization & reporting of fault location
- Field data sequence of operation by relay, bay, substation & zone
- Compare sequence of operation between “as designed” and “as operated” cases
- Double-ended fault location for AC traction system, single circuit and double circuit lines
- Line positive and zero sequence estimation
- Phasor, RMS, harmonics, power & frequency estimation
- Considers CVT transient filter for different fault location techniques
- Relay setting assistance via Python Scripting
- Automatic event report generation with model-based & rule-based root cause analyses
- Incident Labels
- Integrates with ETAP eProtect™, eAPM™ & Outage Management System (OMS)
-
FLISR™ – Fault Location, Isolation & Service Restoration
Fault Location, Isolation & Service Restoration
- Network components capacity evaluation
- Forecasted affected area based on trouble calls
- Fault location based on trouble call, FPI Signals and protection devices data
- Integrated with etap AFAS engine
- Automated isolation, partial restoration, and full restoration switching steps
- Control inhibition on affected feeders
- Integrated Switching Order Management
- SLD and GIS Graphical Web/Workstation Displays
-
eSI™ – Situational Intelligence for Actionable Decision Making
Situational Intelligence for Actionable Decision Making
- Identifies potential problems under current conditions
- Predicts system contingencies before operator actions
- Continuous validation & identification of abnormal conditions
-
eAPM™ – Asset Management & Maintenance
Asset Management & Maintenance
- Access Asset information via Mobile devices
- Manage maintenance
- Create and manage work orders
- Integrated with ETAP Model
- Include procedures, test, and maintenance documentation records
-
etap ADMS – Digital Twin Driven Planning, SCADA, DMS & OMS Integrated Solution
Volt/Var Optimization
- Advisory / Supervisory Modes
- HTML5 Visualization Dashboard
- Reporting and Validation Charts
Outage Management System
- Crew Management
- Dispatch App
- CIS Integration
- SOM Integration
- Reclosure support
-
eSCADA – Electrical System Control and Data Acquisition
- Electrical SCADA
- Large Tag Handling (100K+) with ICCP Driver
- Alarm Management
- Email and SMS Notification & acknowledgement
- HTML5 Interface
- User Defined Reports
- System Level
- Shift Change
- Alarm Reasons
- Outage Summary
-
etap DERMS – Distributed Energy Resource Management System
Distributed Energy Resource Management System
- Wind, Solar & Energy Storage
- Grid Code Compliance
- Integrated Hosting Capacity Analysis
- Grid Operation & Optimization
- DER Forecasting
-
eTraX™ – Solution for AC & DC Railway Systems
- Traction SCADA for Railways
- Monitor Train Speed, Tractive Effort, Position & Power Consumption
-
µGrid™ – Digital Twin Driven Microgrid Controller & EMS
Microgrid Controller & Energy Management System
- Grid-Tied, Off-Grid & Networked Microgrids
- Grid-Connected and Islanding Control & Management
- POI Active & Reactive Power Control
- Planned & Unplanned Islanding
- Optimal & Rule-based Dispatch of Microgrid Resources
- Black Start & Reconnect
- Generation & Load Forecasting
- Performance Testing & Validation
-
ePPC™ – Digital Twin Driven Power Plant Controller & EMS
Renewable Power Plant SCADA & Controller
- Control & Manage Hybrid Power Plants
- POI Active & Reactive Power Control
- Generation Optimization
- Power Smoothing
- Energy Storage Management
- Performance Testing & Validation
- Software-in-Loop (SIL)
- Headware-in-Loop (HIL)
Cloud & Mobile Solutions
-
eWeb™ – Web Based Thin Client Visualization & Management
Web Based Thin Client Visualization & Management
- HTML5/JS based Web Interface
- Load Flow & Short-Circuit Simulations
- Asset Management Interface
- Real-Time Dashboard Integration
- Reports and Work Orders
-
Cybersecurity – Modern Internet Facing Application Security
Modern Internet Facing Application Security
- ETAP License Manager
- Mobile Field Data Collection & Synchronization (etapAPP)
- Network Project Management (NetPM)
- ETAP Real-Time eSCADA HMI Viewer
- ETAP Real-Time eWeb Browser Based Dashboards
-
etapAPP™ 7.0 – Mobile Field Data Collection & Synchronization
Mobile Field Data Collection & Synchronization
- Ergonomics
- Interface layout optimized for tablet usability
- Improved Dark Mode on the Android Platform
- Custom colors for one-line diagram equipment
- Comment Summary
- Searchable list of textbox comments
- New Element – Smart Inverter
- Capture information for inverters and smart inverters and synchronize with ETAP.
- Analysis Results
- Validate collected data and get load flow results displayed graphically on the app.
Download for free
- Ergonomics
The new ETAP 21 release offers an extensive set of innovative, time-saving capabilities to monitor, control, train, and utilize situational intelligence in electrical power systems. Advanced protection analysis and asset management tools support the digital twin-driven automation and renewable energy power management applications. The integrated DataX™ import & conversion modules now offer a Power Analytics® / EDSA® built-in conversion tool and several enhancements to the universal data mapping utility.
Learn moreVersion | Release Date | Literature |
---|---|---|
21.0.2 Nuclear / High-Impact / Multi-Language Edition | May 09, 2022 | View |
21.0.1 Nuclear / High-Impact / Commercial Edition | Nov 12, 2021 | -- |
21.0 | Sep 24, 2021 | -- |
21.0 Release Candidate | Aug 24, 2021 | -- |
Design Solutions
-
AC Arc Flash – Australian Std. ENA NENS 09-2014
Reduce Risk, Improve Safety & Enforce Compliance based on Australian Std.
- Calculation based on Australian Std. Energy Networks Association's ENA NENS 09-2014 (Sweeting Method)
- Maximum and Minimum Arc Current Incident Energy Results
- User-Definable Arc Current Determination Factors
- 3-Phase/1-Phase, Electrode material, and Distance Exponent Factors
- PPE Breakthrough ATPV Multiplier factor
- Batch calculation for 1000's of locations
- Edit, customize, and Print Labels from the Calculator
- Arc-Flash Boundary and Shock Risk Assessment Plots
- IE vs. Arc Duration and Working Distance Plots
- Enclosed and Open-Air Typical Input Data (per IEEE 1584)
- Arc-Flash Label Templates per ENA NENS 09
-
Arc-Flash Plot View
Transient Arc-Flash Result Graphical Comparison
- New plots with a quick overview of multiple scenario results
- Incident Energy vs. Working Distance and Arc Duration Lookup Chart
- Worst-Case Arc-Flash Boundary vs. Electrode Configuration Plot
- Transient Arc Current and Incident Energy Plots
- Generic Transient Short-Circuit Bolted Fault Current Input Parameters (Generated)
- Import Transient Short Circuit results to Integrate final Incident Energy Exposure
- Ability to include asymmetrical current in Energy Integration
- PlotView feature includes fully customizable plots including 3D Views
- Unlimited Plot Customization ETAP Plot SnapShots™ to record and save unlimited plot views
- Result Tooltips to aid in Result Visualization
-
DC Arc Flash – German Std. DGUV-I 203-077
Reduce Risk, Improve Safety & Enforce compliance based on German Std.
- DC Arc Flash Calculator with Two Methods:
- DGUV-I 203-077 – Worst Case (Max Power)
- General (Iterative) – Based on Stokes
- Shunt and Series DC Arc Fault Types
- Batch Import and Export for 1000's of Locations
- DC Arc Flash Custom Label Generation
- PPE Evaluation based on VDE 0682-306-1-2 or User-Defined Energy Levels
- Typical Input Data for Diff. Equipment Types
- Electrode Material Correction Factors
- Boundary Plots & Intuitive Easy-to-Use Interface
- Export Results to CSV and MS Excel
- DC Arc Flash Calculator with Two Methods:
-
Reliability Assessment
Assess the availability and quality of power supply at each customer service entrance
- Analyze complete system or targeted feeders only
- Display assessment results directly on GIS Diagram
- Enhanced plot selection
-
Switching Optimization
Automatically determine the optimal system configuration to achieve user-specified objectives
- Alert & Visual Display on ETAP One-line & GIS Diagram
- Enhanced modeling for switched capacitor banks
-
Switching Sequence Management
Ensure safety by graphically building, simulating & testing switching sequence plans
- Validation of switch plans using Unbalanced Power Flow
- Simulate switch plans on One-line or GIS Diagram
- Export sequence plans to MS Excel
- Export plans to online Sequence Management Viewer
-
Time Domain Load Flow – Quasi Dynamic Simulation
Automatically & sequentially vary load and generation and solve steady-state power flows over time
- Quasi-Static Load Flow (QSLF) with Controller dynamics simulation
- Smart Inverter simulation and analysis
- Time-domain profiles for VFD, induction, and synchronous machines
- Plot response from Controllers and SVC/STATCOM
- Total Active & Reactive Power Plots
- Time Slider & Alerts for GIS Diagram
- Interpolation between time steps smaller than profile resolution
- Higher resolution time step external data support and simulation
-
Signal Scope Analyzer
Signal analyzer allows plotting and analysis of signals from various ETAP modules in multi-module studies
- Analysis and filtering capability for undamped, overdamped, and underdamped signals
- Study Plot Lists capability which allows the user to conveniently select specific plots to be generated and analyzed for their project
- Comparison Signal Instruction files in XML format to support ETAP users with any regional settings
- Unlimited plot customization with ETAP Plot SnapShots™ for single and comparison charts to record and save unlimited plot views
-
Volt/Var Optimization
Minimize VAR Losses and Improve Distribution Grid Efficiency
- Alert visualization on GIS Diagram
- Enhanced modeling for switched capacitor banks & distribution transformers
-
StarZ™ Distance Protection
Gain insight into line protection, relay performance & evaluate system-wide protective device operation
- Simulate protection impact based on Unbalanced Faults -AG, BG, CG, AB, BC, CA, ABG, BCG, and CAG
- StarZ™ integration with eTraX™ for railway system protection simulation
- Create and Manage StarView TCCs in StarZ mode
- Normalized TCC based on StarZ Single-fault report
-
Transient Stability
Accurately simulate power system dynamics and transients
- Frequency calculation for grid-forming inverter
- Improved frequency estimation algorithm for dynamic simulation
-
Cable Systems – Australian & New Zealand Stds. AS / NZS 3008
Calculate optimal and alternative cable sizes for phase & ground conductors
- Selection of cables based on Australian Standard AS/NZS 3008.1.1 up to and including 0.6/1 kV
- Selection of cables based on New Zealand Standard AS/NZS 3008.1.2 up to and including 0.6/1 kV
- Built-in ampacity/capacity & derating factor tables based on methods of installation
- Sizing of phase conductor based on loading, voltage drop, short-circuit, and harmonics
- Batch cable management & dimensioning from Cable Manager
- Updating Equipment Cable SC kA from Load Terminal Fault
- Cable pulling upgraded to a 64-bit application
-
Line Ampacity – IEEE 738-2012
Calculate the current-temperature characteristics for overhead lines
- Comply with IEEE 738-2012 standard
- Study conductor ampacity vs. temperature characteristics
- Determine maximum transmission & distribution line operating temperature under various loading conditions
- Calculate transmission and distribution line derated ampacity based on temperature limit
- Consider effects and adjustments due to weather, solar heat, & geographical location effects
-
DataX™ – Accelerate digitization and data exchange through built-in conversions
Accelerate digitization and data exchange through built-in conversions
SKM Import
- Enhanced built-in conversion from SKM PowerTools® to ETAP, including conversion of DC system
- Improved automatic single-line diagram generation
Power Analytics / EDSA Import
- Built-in conversion from Power Analytics® / EDSA®
- Automatic single-line diagram generation
Common Information Model Import
- Import & automatic GIS diagram generation from CIM XML
- Incremental data exchange with intelligent component property comparison
- Automatic file ingestion using file watcher and scheduler with job logging
- Automatic device warehouse creation
- Automatic single-line diagram updates for the modified area without impact to non-changed areas
- Automatic synchronization from GIS to single-line
NTF Format
- Built-in conversion using NTF file format for transfer of geospatial information (BS 7567)
- Import data from Distribution Network Information System (DINIS) using NTF format
-
ETAP Application – Improved Compatibility & Security Compliances
Improved Compatibility & Security Compliances
- Improved high-resolution display support
- More responsive and performance improvements throughout
- Username & access role display on the application title
- Copy textbox to clipboard for other applications
-
iSLD™ – Intelligent Single-Line Diagram
Foundation for network visualization of electrical networks
- Modify device ID directly on the single-line
- Modify & apply multi-meter styles from Theme Manager
- Lock component physical location on single-line
- Toggle result position
- Information annotation alignment tools – Left, center, right & vertical spacing
-
GridCode – Smart Inverters
Ensure compliance with grid code with modern Smart Inverter modeling & simulation
- Makes autonomous decisions to keep grid stable and reliable as more DERs come online
- Multiple modes of operation & control
- Volt – Var
- Volt – Watt
- Watt – Power Factor
- User-Defined Control Curves or Static Var Support
- Real or Reactive Power Priority Modes
- Include smart inverter constraints
- Maintain compliance per IEEE 1547 and California Rule 21
-
Intelligent Controllers
Renewable energy control system including microgrids & power plant controllers
- Controller Element for Renewable Energy Modeling
- Microgrid & Power Plant / Station Controllers
- Inverters & Energy Storage Controllers
- Graphical selection of monitoring and controlled devices
- Import and automatic parameterization of 'black boxed' DLLs
-
etapAPI™ – ETAP RESTful API for Interoperability
etapAPI™ ETAP RESTful API for Interoperability
- Connect to ETAP from any device, any platform
- ETAP now exposes its services over a REST API
- Readily implemented as a Python client in etapPy
- Run scenarios, studies, get project data, all from your tools
-
etapPy™ – Scripting & Study Automation using Python™
Scripting & Study Automation using Python™
- Integration of ETAP and Python scripting language
- Run ETAP studies remotely and in-parallel across machines
- API expansion, including automation of
- Short Circuit
- Star Sequence of Operation
- Detailed reference documentation (descriptions, example code)
-
Engineering Libraries – Verified & Validated Equipment Libraries
Verified & Validated Equipment Libraries
- Enhanced LV Circuit Breaker modeling capability
- New Protective Device models (1,100+)
- LV Circuit Breakers
- LV Trip Devices
- Fuses
- Relays
Operation Solutions
-
eOTS™ – Operator Training Simulator
Instructor & Trainees System with Dynamic Power System Response
- Efficient power system analysis by comparing graphical results from multiple studies
- Advanced high-speed Python Framework
- Available for all modules with plot-based reports
- Automatic sizing & sub-plot arrangements
- Tooltip & cross-hair based value tracking
-
FLISR - Fault Location, Isolation & Service Restoration
Fault Location, Isolation & Service Restoration
- Network components capacity evaluation
- Forecasted affected area based on trouble calls
- Fault location based on trouble call, FPI Signals and protection devices data
- Integrated with etap AFAS engine
- Automated isolation, partial restoration, and full restoration switching steps
- Control inhibition on affected feeders
- Integrated Switching Order Management
- LSD and GIS Graphical Web/Workstation Displays
-
eSI™ – Situational Intelligence
Continuous Validation of Operation Actions and State
- Identifies potential problems under current conditions
- Predicts system contingencies before operator actions
- Validates continuously process changes and indicates out of normal conditions
-
eAPM™ – Integrated Maintenance Management
Integrated Maintenance Management
- Access Asset information via Mobile devices
- Manage maintenance
- Create and manage work orders
- Integrated with ETAP Model
- Include procedures, test, and maintenance documentation records
-
etap ADMS – Digital Twin Driven Planning, SCADA, DMS & OMS Integrated Solution
Volt/Var Optimization
- Advisory / Supervisory Modes
- HTML5 Visualization Dashboard
- Reporting and Validation Charts
Outage Management System
- Crew Management
- Dispatch App
- CIS Integration
- SOM Integratio
- Reclosure support
-
eSCADA™ – Electrical System Control and Data Acquisition
Alarm Management
- Email and SMS Notification & Acknowledgement
- HTML5 Interface
User Defined Reports
- System Level
- Shift Change
- Alarm Reasons
- SOM Integration
- Outage Summary
-
etap DERMS – Distributed Energy Resource Management System
Distributed Energy Resource Management System
- Wind, Solar & Energy Storage
- Grid Code Compliance
- Integrated Hosting Capacity Analysis
- Grid Operation & Optimization
- DER Forecasting
-
etap μGrid™ – Digital Twin Driven Microgrid Controller & EMS
Model Driven Microgrid Control & Management
- Optimal Dispatch of Microgrid Resources
- Grid-Connected and Islanding Control & Management
- Demand Side Management
- Energy Storage Management
- Generation & Load Forecasting
- Performance Testing & Validation
-
ePPC™ – Digital Twin Driven Power Plant Controller & EMS
Model Driven Power Plant Controller
- Control & Manage Hybrid Power Plants
- Generation Optimization
- Power Smoothing
- Energy Storage Management
- Performance Testing & Validation
- SIL and HIL Testing and Simulation
- Design & Operate for Grid Code Compliance
Cloud & Mobile Solutions
-
eProtect™ – Centralized Protection & Asset Management
Centralized Web-Based Protection & Asset Management
- Increased data quality & access management
- Automatic notification, processing & relay settings file generation
- Protection setting synchronization between a physical relay & ETAP Star Protective Device Coordination
- Integrated with Advanced Fault Analysis System (AFAS)
-
eWeb™ – Web Based Thin Client Visualization & Management
Web Browser based Simulation, Monitoring, and Reporting
- HTML5/JS based Web Interface
- Load Flow & Short-Circuit Simulations
- Asset Management Interface
- Real-Time Dashboard Integration
- Reports and Work Orders
-
etapAPP™ 6.0 – Mobile Field Data Collection & Synchronization
Mobile Field Data Collection & Synchronization
- Now available on Google Play Store for Android Platform
- Now available on Google Play Store for Android Platform
ETAP 20 Series is a Continuous Intelligent Digital-Twin Solution to Plan, Design, Automate, Operate, and Optimize Electrical Power Systems. The new release offers an impressive set of innovative, time-saving electrical safety capabilities, advanced renewable energy modeling & simulation tools, leading-edge co-simulation technology, expert scripting & program application interfaces, and model-driven real-time network management solutions. ETAP 20 is available in eight languages.
Learn moreDesign Solutions
-
DC Arc Flash - Reduce Risk, Improve Safety & Enforce Compliance based on German Std.
Reduce Risk, Improve Safety & Enforce Compliance based on German Std.
- DC Arc Flash Calculator with Two Methods:
- DGUV-I 203-077 – Worst Case (Max Power)
- General (Iterative) – Based on Stokes
- Shunt and Series DC Arc Fault Types
- Batch Import and Export for 1000’s of Locations
- DC AF Custom Label Generation
- PPE Evaluation based on VDE 0682-306-1-2 or User-Defined Energy Levels
- Typical Input Data for Diff. Equipment Types
- User-Defined Power Coefficient kP
- Electrode Material Correction Factors
- Boundary Plots & Intuitive Easy-to-Use Interface
- Export Results to CSV and MS Excel
Design, Calculate & Evaluate Safety for DC Systems
- Incident Energy Subtraction Method
- DC Arc Flash Calculator batch analysis
- Update ‘worst-case’ scenario from Result Analyzer to DataBlocks
- DC arc current reference TCC plot
- DC Arc Flash Calculator with Two Methods:
-
Magnetic Field Exposure
Public Safety Magnetic Field Exposure Evaluation
- Based on CIGRE JTF 36-0121
- Exposure to Surface Magnetic Fields from Underground Conductor Installations
- Evaluates Field Intensity Limits Per IEEE C95.6-2002, ICNIRP – 2010 and ACGIH – 2002
- Handles Conductor & Sheath AC & DC Currents
- Allows user-defined Permeability CF
- Raceway cable location depth view
- Graphical data visualization with single and multiple plots
- Integrated with Underground Raceway Systems, Load Flow and Unified Load Flow modules
-
GridCode - Automated Grid Code Compliance
Automated Grid Code Compliance
- Automated grid code evaluation of harmonic distortion and resonance
- Compliance per ENA Engineering Recommendation G5/5 (United Kingdom)
-
Star™ - Fast Paced and Automated Protection & Coordination
Fast Paced and Automated Protection & Coordination
- Improved deliverables quality
- Protective device Comments in Device Settings Report
- Enhanced transformer inrush simulation and TCC plot
- TCC plot with Datablocks for embedded one-line
- Enhanced simulation and plot of solid-state trip device
- Device settings Datablock with settings unit selection
- Device Design Assessment for breaker and recloser
- Scenario Wizard with Sequence of Operation
- Enhanced Current Transformer Saturation
- New Typical Data
- Integrated with Short Circuit current calculations
Assess & Resolve Protection & Coordination Data Quality Issues at a Glance, Auto Fit TCCs
- Protective device functions & logic assessment tool
- Quickly identify missing information, disabled functions & more
- Auto Fit TCCs based on resolution & available display area
-
Transient Stability
Accurately Simulate Power System Dynamics & Transients
- Transformer inrush RMS plot
- Equation-based inrush current analysis for Grid Code compliance
- API to interface solar/ESS inverter & wind turbine dynamic models via user/manufacturer supplied DLL
- Plot Analyzer for graphical plot results comparison & evaluation
- Multi-axes 3D Plots – Voltage, angle & time
- Improved progress bar status & view elapsed & remaining time
- Grid following inverter modeling
- Transformer inrush with remnant or residual flux
-
AC Arc Flash - Reduce Risk, Improve Safety & Enforce Compliance
Reduce Risk, Improve Safety & Enforce Compliance
- Global & Individual typical data for enclosure editor
- Arc-Flash Calculator enhancements
- 1-Phase Arc-Flash “Worst-Case” Pole / Phase Identification
- AC & DC Arc Flash PPE & Boundaries updated to comply with NFPA 70E-2021
- NFPA 70E 2021 Article 360 & Appendix R – Capacitor Hazards Evaluation
- Hearing Protection Boundary
- Lung Protection/Collapse Boundary
- Stored Energy Arc-Flash Hazard Calculation
- NEC 2020, CSA C22.1-18, IEC 60831-2014, IEEE-18-2012 & NFPA70E-2021 Safe Discharge Voltage Standards
- Capacitor Hazard Evaluation Results in AFRA, Datablocks, Excel Reports
- Capacitor Hazard Warning Label Templates
- Enhanced batch import from Excel for all Arc Flash Calculators
- Print custom Arc Flash Labels from all Arc Flash Calculators
- German Arc Flash Calculator Labels based on DGUV-I 203-077
- User-Defined i.e. Reflectivity Factors for ArcFault & DGUV Methods
- Enhanced AF Auto Evaluation Interface
- Enhanced Enclosure Editor Filter from One-Line Selections
- Custom Label - Metric templates
-
eMTCoSim™ - CoSimulation of Electromagnetic & Phasor Transients
CoSimulation of Electromagnetic & Phasor Transients
- Single-domain or multiple-domain co-simulation
- Watch your transient simulations in action with Live Charts for multiple components & variables
- Simulate large networks in high-fidelity
- Multiple CoSim elements per bus
- Multiple CoSim buses
- Accounts for transformer phase shifts on the RMS network
- Graphically boundary data charting using rich Python-based plots
- Support for CoSim from ETAP Study Wizards
-
Dynamic Models
Dynamic Models using UDM or Manufacturer Black Box Modeling
- WECC distributed and small PV plants generic model (PVD1)
- WECC Energy Storage System Phase II Models – REGC_A, REEC_C, REPC_A
- WECC 2nd Generation Type 3 & 4 Wind Turbine Models – WTGT_A, WTGAR_A, WTGPT_A, WTGTRQ_A
- Solar Turbines Battery Energy Storage System (BESS)
- CIGRE Gas Turbine and Steam Turbine in Combined Cycle Power Plants (Report 238)
- User API to incorporate DLL based Dynamic Models
- Analyze plots from related modules in UDM Scope PlotView
- UDM Scope Plot output to SQLite & CSV
- Generic Static Var System Models based on WECC
-
PVPro™ - Solar Parameter Estimation
Solar Parameter Estimation
- Estimate solar panel P-V & I-V curves using manufacturer ratings
- Utilize one or two diode model for solar performance estimation
- Include solar performance based on user-defined or estimated curves
- Auto-update the model parameters into the solar library
- Automatically recalculate solar panel characteristics
-
Motor Starting
Improved Visualization, Deliverables & Reporting
- Plot Analyzer for graphical plot results comparison & evaluation
- Improved progress bar status, view elapsed & remaining time
- Expanded time slider with motor starting events
-
eTraX™ - Solution for AC & DC Railway Systems
Solution for AC & DC Railway Systems
- Improved performance of current limiting models under low voltage operating conditions
- Plot Analyzer for graphical plot results comparison & evaluation
- Live One-Line Diagram plots for graphical results
- Custom Python based plots – Routes & timetables
- Multi-axes 3D plots – Day, timetable & plot parameter
- New keyboard shortcuts for multiple device selection in study case plot tab & PlotView
- New selection for plotting STATCOMs & SVCs in study case
- Improved progress bar status & view elapsed & remaining time
- New dynamic events list in Traction Time Slider
- Enhanced reports with DC rail results (currents & voltage drops)
- Updated user guide with process flowchart & FAQs
- Enhanced handling of node grounding in DC train systems
- Added rectifier model names to OLV Data Manager
-
Harmonics
Identify Harmonic Problems, Design Filters, & Report Harmonic Limit Violations
- Plot Analyzer for graphical plot results comparison & evaluation
- Combine voltage & current distortion in a single plot for branches & buses
- G5/4-1 Planning & compatibility harmonic limits rulebook
-
Cable Modeling, Sizing & Manager
- New physical layers
- Support cycling cable transient load profile
- Standard table-based overload protection I2 calculation
- Induced voltage alert for NF 13-200 standard
- New capabilities in Cable Manager
- Report correction factors & corresponding tables
-
Time Domain Load Flow
Time Series Unsymmetrical Network Unified AC & DC Load Flow
- Plot Analyzer for graphical plot results comparison & evaluation
- Live One-Line Diagram plots for graphical results
- Improved progress bar status, view elapsed & remaining time
-
Underground Raceway Systems
Design Cable Systems to Operate to their Maximum Potential
- Cable Magnetic Field Calculator
- Evaluates the magnetic flux density at any point for compliance with relevant EMI/EMC standards
- Plot magnetic flux density versus position
- Snap to grid & snap to guides
- Plot Analyzer for graphical plot results comparison & evaluation
- Transient temperature calculation using complete 24-hour time profiles
-
Arc Flash Auto-Evaluation
Automated Arc Flash Evaluation
- Automated arc flash energy evaluation
- Constant Energy Boundary Area – C-area plots
- Arc Energy Damage Point – Arc-Resistant Switchgear (C37.20.7)
- Risk analysis based on multiple operating conditions and current variation
- Arc Flash Evaluation Rulebook
- Automatically evaluate Line, Bus, and Load-side faults
- Global filters for new IEEE 1584-2018 rules and special conditions
- Automated arc flash energy evaluation
-
eMT™ - Electromagnetic Transients Program
ETAP Electromagnetic Transients Program
- ETAP EMT Powered by PSCAD
- Switching transient
- Insulation coordination
- Lightning surges
- Renewable energy generation
- Sub-synchronous oscillations
- FACTS and electronic converters
-
PlotView™ - Live Plots & Graphical Result Visualization
Live Plots & Graphical Result Visualization
- Live Plots overlay with previous study results
- Embedded Live Plots on One-Line Diagram
- Utilize with all major ETAP modules
- Individual or Subplot views
- Export to Excel, Zoom, Pan, Hairline Based Value Tracking and more
-
etapPy™ - Scripting & Study Automation using Python™
Scripting & Study Automation using Python™
- Integration of ETAP and Python scripting language
- API to batch run studies and generate output data reports
- Run studies remotely and in parallel across machines
- Built-in Python Script IDE or Editor
-
Battery Energy Management
Battery Charging & Discharging
- Lithium-Ion battery modeling
- Battery charge & discharge control modes
- Multiple battery State of Charge (SoC) categories
- Battery operating mode based on voltage or power Generation
- Utilize in Load Flow (AC, DC, Unified, Time Series) and eTraX modules
-
Battery Parameter Estimation
Estimate battery charge and discharge parameters
- Lead-Acid and Lithium-Ion (multiple chemistries) battery types
- Auto-update model parameters into battery library
- Automatically recalculate battery characteristics
-
NF C13-200 - Cable Sizing
Ensure Compliance using Trusted Calculations
- Complete current carrying capacity calculation
- Under-ground and Above-ground cable sizing
- Display Correction Factors applied per cable using Cable Manager
-
Short Circuit - Faster Result Analysis & Project Deliverables
Faster Result Analysis & Project Deliverables
- Update ‘worst-case’ Device Duty evaluation from Result Analyzer to component DataBlocks
- Compare Device Duty results with equipment ratings in Result Analyzer
- PlotView for IEC 61363 graphical results
-
Solar Parameter Estimation
Estimate Solar Panel Characteristics Based on Nameplate Data
- Estimate solar panel P-V & I-V curves using manufacturer ratings
- Utilize one or two diode model for solar performance estimation
- Include solar performance based on user-defined or estimated curves
- Auto-update the model parameters into the solar library
- Automatically recalculate solar panel characteristics
-
Engineering Libraries
Verified & Validated Equipment Libraries
- New Lithium-Ion Battery models
- Expanded Circuit Breaker and Relay models
- New Protective Device models
- Updated Reliability Failure Rate data
- Updated Cable Libraries per cable regulation types
-
ETAP Application
GIS & One-Line Diagram Foundations
- Project & Study Wizard Toolbar
- AutoComplete Search
- Full-Screen Mode
- New Installation Framework
- Updated SAP Crystal Report (v25), MongoDB 4.2 & SQLCE 4.0
- Support for MS Windows Server 2019
-
eProtect™ - Centralized Web-Based Protection & Asset Management
Centralized Web-Based Protection & Asset Management
- Increased data quality and access management
- Automatic processing and relay settings file generation
- Protection setting sync between a physical relay and ETAP Star PDC
- Integrated with Advanced Fault Analysis System, AFAS
-
eOTS™ - Operator Training Simulator
Operator Training Simulator
- ETAP-in-the-Loop system simulation
- Training Simulator for SCADA, PMS, EMS, ILS, DMS, and OMS
- Instructor to multi-trainee environment with Ad hoc & pre-defined scenarios
- Evaluation of trainee performance and continuous learning environment
-
Advanced Fault Analysis System
Accurate Fault Location & Outage Management
- Fault information retrieval – COMTRADE
- Fault type, impedance, and location identification
- Phasor and Frequency estimation
- Graphical visualization and reporting or fault location
- Integrates with eProtect & OMS
-
µGrid™ Controller - Model-Driven Microgrid Management & Control System
Model-Driven Microgrid Management & Control System
- Generation Optimization
- Generation and Load Forecasting
- Grid Power Interchange Control
- Black start and system restoration
- Islanding Management
- Optimize, tune, and hot-swap logic
- Control validation via real-time simulation
-
ePPC™ - Power Plant Controller
Power Plant Controller
- Design and operate to balance Grid Code Compliance and power plant performance
- Active power, reactive, and energy storage management
- Intelligent and centralized renewable farm control
- Renewable energy SCADA and dashboards
-
NetPM™ - Network Project Modeling & Management
Network Project Modeling & Management
- Collaborative GIS model management
- Efficient queue management for graphics
- Data Undo using local queue
-
etapAPP™ 4.0 - Mobile Field Data Collection & Synchronization
Mobile Field Data Collection & Synchronization
- Pin favorite data fields and properties
- Element disconnect capability
- Enhanced One-Line Diagram editing
- Improved Geo-tagging, Zoom, and equipment search tools
Operation Solutions
-
eProtect™ - Centralized Web-Based Protection & Asset Management
Centralized Web-Based Protection & Asset Management
- Increased data quality and access management
- Automatic processing and relay settings file generation
- Protection setting sync between a physical relay and ETAP Star PDC
- Integrated with Advanced Fault Analysis System (AFAS)
-
eOTS™ - Operator Training Simulator
Operator Training Simulator
- ETAP-in-the-Loop system simulation
- Training Simulator for SCADA, PMS, EMS, ILS, DMS, and OMS
- Instructor to multi-trainee environment with Ad hoc & pre-defined scenarios
- Evaluation of trainee performance and continuous learning environment
-
AFAS™ - Advanced Fault Analysis with Accurate Fault Location
Advanced Fault Analysis with Accurate Fault Location
- Fault information retrieval – COMTRADE
- Field data sequence of operation by relay, bay, substation & zone
- Fault type, impedance & location identification
- Line positive and zero sequence estimation
- Phasor, RMS, harmonics, power & frequency estimation
- Model verification
- Automatic event report generation with model-based & rule-based root cause analyses
- Graphical visualization & reporting of fault location
- Integrates with ETAP eProtect™ & Outage Management System (OMS)
Automation Solutions
-
µGrid™ Controller - Model-Driven Microgrid Control & Management
Model-Driven Microgrid Control & Management
- Optimal and rule-based dispatch
- Grid active and reactive power interchange control
- High speed intelligent adaptive load shedding for seamless islanding
- Planned islanding
- Black start & system restoration considering inrush currents
- Active and Reactive power control to meet grid codes
- Optimize, tune & hot-swap logic
- Generation & load forecasting
- Control validation via real-time simulation
- Generation Optimization
- Grid Power Interchange Control
- Black start and system restoration
- Islanding Management
- User-friendly control logic designer
-
ePPC™ - Power Plant Controller
Power Plant Controller
- Design & operate to balance grid code compliance & power plant performance
- Active power and reactive power control
- Mange capacitor banks, switch capacitor, statcom & energy storage
- Soft start & stop, renewable curtailment & renewable smoothing
- Intelligent & centralized renewable farm control
- Renewable energy SCADA & dashboards
Cloud & Mobile Solutions
-
NetPM™ - Model & analyze projects simultaneously from anywhere
Model & analyze projects simultaneously from anywhere
- Improved synchronization of composite network elements
- Automatic synchronization of OLV with Split Bus across multiple projects
- Synchronization of project settings
- Optimized supervisory control for split bus
- Improved synchronization including annotations & graphics
- Revert data using NetPM local change queue
-
etapAPP™ 6.0 - Mobile Field Data Collection & Synchronization
Mobile Field Data Collection & Synchronization
- Improved international character set support
- Improved locating next segment for split bus
- Find elements based on property value & device type
- Auto backup and recovery
- Filter element properties based on Datablock templates from ETAP
- Text box style templates
- Improved device search by type
- Picture sorting
Unified Digital Twin Application Platform
-
ETAP Application
Improved Compatibility & Security Compliances
- Improved High-resolution display support
- Compatibility with MS SQL Server 2012 SP4
- etapPy API compatibility with Python 3.8.4
- Greater responsiveness & performance improvements throughout
- Notifications & auto service pack updates
GIS & One-Line Diagram Foundations
- Project & Study Wizard Toolbar
- AutoComplete Search
- Full-Screen Mode
- New Installation Framework
- Updated SAP Crystal Report (v25), MongoDB 4.2 & SQLCE 4.0
- Support for MS Windows Server 2019
-
One-Line Diagram
Foundation for network visualization of electrical networks
- Color coding of elements with engineering data revisioning
- Graphically display Lock symbol per Element based on Data Lock
- Datablock color fill
- Improved circuit tracing
- Page Break preview directly on the one-line diagram
- Transfer switch mirror connections and auto insertion of nodes
- Enhanced Device Info Annotation
- Optimal default position
- Annotation rotation – undo/redo
- Alignment tools – Left, center, right & vertical spacing
- Graphically split buses for improved diagram layout & organization
- Graphically select all components of the same type
- Set in/out of service based on device type
- Enhanced Datablocks
- Display metadata links such as pictures, manuals, etc.
- Display switching device configuration status
- Quickly search & use device properties
- Apply display style individually or based on a theme
-
PlotView™ - Live Plots & Graphical Result Visualization
Live Plots & Graphical Result Visualization
- PlotView for Voltage Stability Analysis
- P-V Curves
- V-Q Sensitivity
- Embedded PlotView for live insight on a one-line diagram for:
- Transformer Inrush
- Railway power systems - eTraX
- Renewable, T&D, Transportation & more - Time Domain Power Flow
- PlotView for element editors
- Capability Curve
- Fuel Cost Profile
- Solar/PV performance characteristics – P-V & I-V curves
- Harmonic spectrum
- Live Plots overlay with previous study results
- Embedded Live Plots on One-Line Diagram
- Utilize with all major ETAP modules
- Individual or Subplot views
- Export to Excel, Zoom, Pan, Hairline Based Value Tracking and more
- PlotView for Voltage Stability Analysis
-
AutoCAD® DWG™ - Streamline your work & enhance productivity with CAD
Streamline your work & enhance productivity with CAD
- Import CAD/DWG to ETAP
- Intelligently generate default mapping
- Customize scaling factor and margin
- Automatically generate a one-line diagram
- Automatically generate substation ground grids
- Export CAD/DWG from ETAP one-line diagram
- Automatically generate ETAP blocks
- Customize color for annotation & Datablock
- Import CAD/DWG to ETAP
-
PlotAnalyzer™ - Compare & analyze graphical plot results in a single view
Compare & analyze graphical plot results in a single view
- Efficient power system analysis by comparing graphical results from multiple studies using advanced & high-speed Python framework for charting
- Load Flow plots for Simulation Results vs. Distance
- Multiple selection plot list for Transient Stability and Motor Starting
- Advanced & high-speed Python framework for charting
- Available for all ETAP simulation modules with plot-based reports
- Automatic sizing & multiple sub-plot arrangements
- Tooltip & cross hair based value tracking
- Copy to clipboard & export values to Excel
- User-configurable plots & settings via Python scripts
- Automatic display of event information for time-based studies
- Automatic display of alert information
- Generate & utilize custom plot types using Python
-
Element Modeling
Intelligent equipment editors
- Synchronous Generator Capability Plot View
- Cable Operating Voltage, Current and Angle by Phase Type
- Motor circuit protector calculated trip amps for LVCB
- Cable Sizing – NF C13-200
- PV array performance characteristics PlotView
- Harmonic spectrum PlotView
- Capacitor – Arc flash energy
- Protection of IEC two-winding transformer – Withstand duration
-
etapAPI™ - ETAP RESTful API for Interoperability
ETAP RESTful API for Interoperability
- Connect to ETAP from any device, any platform
- ETAP now exposes its services over a REST API
- Readily implemented as a Python client in etapPy
- Run scenarios, studies, get project data, all from your tools
-
etapPy™ - Scripting & Study Automation using Python™
Scripting & Study Automation using Python™
- Integration of ETAP and Python scripting language
- Feature-rich Python editor for running python scripts
- Python API to run studies and generate output data reports
- Run ETAP studies remotely and in parallel across machines
- Customized Excel output reports using Python report generation for various modules.
- Detailed reference documentation (descriptions, example code)
- API expansion including:
- Device addition & deletion
- Get & Set device engineering properties
- Clear Message Log
- Access active scenarios
- Get user info, language, zoom level, etc.
- Get element service condition, and more
- Expanded Python commands for Voltage Stability & Harmonic Analysis
-
Engineering Libraries
Verified & Validated Equipment Libraries
- Solar/PV Array Library
- Expanded 16,000+ PV Models
- Solar/PV Parameter Estimation based on one & two diode models
- Graphical display P-V & I-V characteristics
- Expanded LV Circuit Breaker modeling capability
- New Protective Device models (13,000+)
- Expanded Circuit Breaker & Relay models
- New Protective Device models
- Updated Cable Libraries per cable regulation types
- New Lithium-Ion Battery models
- Expanded Circuit Breaker and Relay models
- New Protective Device models
- Updated Reliability Failure Rate data
- Updated Cable Libraries per cable regulation types
- Solar/PV Array Library
-
Project Tracking & Gantt
Project & Task Management made Easy
- Show Today’s date as an automatic marker
- Settings editor to improve look & feel for:
- Today’s date marker
- Row background
- Days off / Weekends
- Individual task, completed task & task groups
- Import of ETAP study scenarios and automatic task creation
- Create tasks & milestones
- Track project progress with automatic Gantt chart updates
-
DataX™ - Accelerate digitization & data exchange through built-in conversions
Accelerate digitization & data exchange through built-in conversions
SKM Import
- Improved one-line diagram layout, rotation & element mapping
- Automatic creation of Split-Bus including location and length
- Optimized creation of multi-function relays
- Node and bus creation logic based on number of connections
- Copy/paste support in library mapping for fuses, LVCBs and relays
- Additional data exchange support for
- three-winding transformer data import
- Power factor & efficiency for multiple loading
- Conversion automatically creates split-bus
- Improved one-line diagram layout & element mapping
ANAFAS & ANAREDE Import
- Import ANAREDE format to ETAP for load flow analysis
- Import ANAFAS format to ETAP for short circuit analysis
- Automatic One-Line generation
Milsoft WindMil Import
- Import standard text files (.mpt, .seq, .std) directly into ETAP
- Automatic GIS & OLV generation
- Supports incremental data file import
- Eliminated Java support
Data Exchange & Conversion Tools
- Latest built-in GIS import from CYME and Milsoft WindMil Map®
- Updated built-in import tool from SKM Power*Tools® 9.0
-
Multi-Language Edition
Multi-Language Edition - Localized
- Chinese
- French
- Japanese
- Korean
- Portuguese
- Russian
- Spanish
- English
ETAP 19 release delivers a brand new platform for team engineering and cloud-based collaboration - NetPM™, new Arc Flash IEEE-1584-2018 Standard, Grid Code Compliance tools, innovative analysis modules, Data Collection App, Revit® BIM and Data Exchange interfaces with faster performance and improved graphics.
Learn more-
Voltage Stability
Voltage Security Analysis & Loadability Limits
- Voltage Stability Limits & Proximity
- Simulate the Impact of Voltage Instability
- Sensitivity Analysis & Instability Indices
- Graphical Results & Plots
-
Grid Code Compliance
Fast & Automated Harmonic Compliance Studies
- Quickly Check & Validate Grid Code Compliance
- Comply with ANSI, IEC & Regional Grid Codes
- Python Scripted & Customizable Excel Reports
- Wind Turbine Generator Harmonic Source
- Utilize Grid Driving Point Impedance Locus
- Incremental Harmonic Distortion Calculation
Frequency Ride-Through Compliance Studies
- Perform LFRT & HFRT Dynamic Studies
- Grid Frequency Disturbance Events
- Frequency Ramp & Impact
-
Zone Selective Interlock
Protection & Selectivity, Arc Flash, Auto-Evaluation
- Improve Safety & Minimize Equipment Damage
- Validate ZSI Mitigation Technique & Scenarios
- Simulate ZSI Operation for Various Fault Types
- Intuitive & Graphical Zone Selective Interlocking
- Evaluate & Compare ZSI Performance
- Phase & Ground Zone Interlock Modeling
- Manufacturer Specific ZSI Schemes per Device
- Fast & Efficient Modeling of CB ZSI Settings
-
Arc Flash IEEE 1584-2018
IEEE 1584-2018 Latest Guide for Performing Arc Flash Hazard Calculations
- Enhanced arc flash analysis report
- User-defined Correction Factors
- Electrode Material – Cu, Al
- 3-phase to 1-phase arc flash
- Enhanced Arc Flash Analyzer
- TCC based enhancements
- Lockout relay delay time
- Overcurrent relay trip time tolerance
- Fuse clearing time tolerance
Unique Features
- Arc flash results based on each enclosure
- New Instrumentation enclosures - CT & PT
- Analysis for multiple electrode configurations
- Enclosure template for parallel feeders
- Enhanced arc flash mitigation
- Light detection
- Pressure
- Operational delays
-
Arc Flash Energy Boundary Curves
Constant Energy Line & Area Plots
- Optimal PD Settings in a Single Step, Boosts Productivity & Saves Time
- Graphically Evaluate Equipment Limits
- Update Datablock from Result Analyzer
- Enhanced Arc-Resistant Damage Point
-
ArcFault™ - High Voltage Arc Flash
- High Voltage Arc Flash Calculator
- Systems from 1 kV to 800 kV
- OSHA 1910.269
- National Electrical Safety Code - NESC
- LG, LL, 3-Phase arc faults
- Arc-in-a-box - 15 kV to 36 kV
-
Arc Flash Calculators - Powerful Graphical Calculators
Arc Flash Calculators
- AC – IEEE 1584-2018, 1584-2002 & Lee method
- BGI/GUV-I 5188 – German arc flash standard
- Schau.H. Halinka A, Winkle. W
- DGUV-I203-077
- DC – Stokes, Paukert & Max Power
- High Voltage Arc Flash per NESC
- Quick ‘What If’ scenarios & result assessment
- Batch process 1000s of calculations with a single-click
- Couture plots for incident energy & heat flux results
- Protective device type
- User-defined FCT
- Current Limiting Fuse
- LV Breaker
- Graphical display
- Incident Energy vs FCT
- Incident Energy vs Working Distance
-
Transformer Inrush
Energization Study & Impact Analysis
- Inrush simulation using Magnetization Characteristics
- Sympathetic Inrush - Single & Multi-Transformer
- Verified & Validated Calculations
-
IEC 61363 Device Duty Evaluation
Transient Short Circuit for Marine & Offshore Units
- Design Safer Systems & Improve Reliability
- Device Duty using Total Bus Fault Current
- Alert Visualization, Tabulation & Reports
- Consider Generator Preload Condition
-
Ground Grid Analysis - Soil Resistivity Calculator using Field Measurements
- Soil model estimation based on field measurements
- RMS error reporting
- Generate & compare uniform or two-layer soil model
- IEEE 80 & IEEE 81 standards
- 64-bit high-performance architecture
- Multi-core Calculations → Fast & Efficient
- Analysis of Fragmented Earthing Mats
- Handling of Very Large Grounding Systems
- Soil Resistivity Calculator
-
Advanced Fault Analysis System
Accurate Fault Location & Outage Management
- Fault Information Retrieval – COMTRADE
- Fault Type Identification
- Phasor & Frequency Estimation
- Fault Impedance & Location Identification
- Graphical Visualization & Reporting
-
NetPM™ - ETAP Network Project Modeling & Management
Network Project Modeling & Management
- Parallel power system modeling
- Simultaneous multi-user data collection & entry
- Concurrent system studies, analyses & validation
- Change Management
- Review & Approval Process
- Synchronization with etapAPP™
- Revision Data Synchronization
- GIS Data Synchronization
- Efficient Queue Management
-
etapAPP™ - Mobile Field Data Collection & Synchronization Version 3.0
Mobile Field Data Collection & Synchronization
- Available for tablets running Windows® or Apple® iOS
- Expanded information annotations: kV & equipment rating
- Geolocation info for assets
- Precision logic for information annotation
- Synchronize text boxes
- Download & show remote connectors
- Delete elements & connectors
- Touch & drop new elements
- Synchronization & integration with NetPM™
- Geo-Tagging
- Equipment Search
- Multiple Photos, Favorites, Editing, Camera Roll
- Full Screen Mode
- Support for Text Box, CT, Relay
-
Harmonics
- Frequency Dependent Cable Impedance
- User-Defined Input Data via Excel
-
Panel Systems
Panel Schedule Design & Calculations
- Enriched Graphical Panel Representation
- User-Defined Load Code Factor Tables
- Revit Load Code Factor Mapping
-
Renewable - DC Load Flow
Design & Analyze Hybrid DC Topologies
- Solar Photovoltaic (PV Array)
- Battery Storage
- DC-DC Converter
- Single & Multiple Grid Connected Inverters
- Constant Power Load & Rectifier/UPS
-
Cable Sizing – NF C15-100
Ensure Compliance using Trusted Calculations
- Fast & Accurate Cable Sizing per French Std.
- Complete Cable Sizing with Shock Protection
- LV Underground & Aboveground Cable Sizing
- Capacity Assessment & Overload Consideration
-
eProtect™ - Centralized Web Based Protection & Asset Management
Centralized Web Based Protection & Asset Management
- Complete Relay & Asset Management
- Increased Data Quality & Access Management
- Seamless Data Synchronization between Physical Relay & ETAP Star
- Automatic Processing & Relay Setting File Generation
-
eOTS™ - Operator Training Simulator
- Software-in-the-loop (SIL) System Operation
- Dynamic & Steady State Response with Controller & Relay Operation
- SCADA, PMS, EMS, DMS & OMS
- Trainer to Trainee Environment with Ad-hoc & Pre-defined Scenarios
- Evaluation of Trainee Performance
-
eTraX™ - Railway Traction & Signaling Analysis
Railway Traction & Signaling Analysis
- Train current limitation based on EN 50388
- Automated People Mover (APM) simulation
- Three-phase traction power system
- Calculate track to earth potential
- Import & create geospatial train network using LandXML format
- Static Var Systems
- SVC - Single Phase
- STATCOM / SVG – 3P & 1P
- Train Coasting Markers
- GIS Import
-
MicroGrid - Microgrid Control System
- User-friendly controller design
- Hardware-in-the-Loop validation
- ETAP-in-the-loop situational intelligence
- Control validation via real-time analysis
- Model-driven solution
-
ePPC™ - Power Plant Control
Intelligent Centralized Renewable Farm Control
- Model-Driven Power Plant Controller Solution
- Active Power, Reactive, Energy Storage Management
- ETAP-in-the-Loop Situational Intelligence
- Design & Operate for Grid Code Compliance
- Renewable Energy SCADA & Dashboards
-
Volt/Var Optimization & Control
Minimize Distribution Losses & Track Performance
- Intelligent Volt/Var Optimization
- Considers Capacitors, PV Inverters, Substation OLTC, Voltage Regulators
- Real-Time Optimization & Energy Use Tracking
- Graphical Visualization & Dashboards
-
eSCADA™ - Model-Driven Control & Data Acquisition System
- Thin client application for monitoring & control
- Customizable web-based interfaces
- Human Machine Interface (HMI) template library
- Web-based customizable HMI
- Localized Language HMI for Systems Operation
- Japanese
- Russian
- Spanish
-
PSMS™ - Power System Monitoring & Simulation
- Control & Validation
- Optimize Operations
- Situational Awareness
-
ILS™ - Intelligent Load Shedding
- Industrial & Generation Systems
-
ADMS - Advanced Distribution Management System
- Integrated SCADA + DMS + OMS
- Crew & Trouble Call Management
- Switch Order Validation
- Fault Detection & Location Accuracy
- Historical Data Storage in Oracle
- Area of Responsibility for Email & SMS Notifications
- Real-Time System Performance Tracing
- Scan, Close, & Open Inhibit Support
-
iDLS™ - Intelligent Distribution Load Shedding
Load curtailment application to execute the desired optimal strategies and perform the controls necessary to shed the minimum required load for distribution systems. -
etap iCE™ - Intelligent Control Enterprise Hardware
- Programmable Controller
- Remote Terminal Unit – iCE RTU
- High Performance & Availability
- Secure Controller
-
OSIsoft® PI Asset Framework
Electrical Digital Twin & Operating Data for PI™
- Direct Data Retrieval to ETAP SCADA
- Auto-Creation of Asset Framework from ETAP Model
- Real-Time, Historical & Property Data
- Two-way Communication
- Archive ETAP Real-Time Analysis Data
-
Alarm Management & Reporting
Intelligent Alarm Management & Processing
- Area of Responsibility with Access Management
- Alarm Reason Logic and Reporting
- Shift Report Summary
- Alarm Limit Overrides & Inhibition
- Alarm & Event Web Reports
-
Communication Protocols
Faster & More Secure Protocols
- IEC 61850 – GOOSE / MMS – Windows & Linux
- IEC 60870-5 – 101 / 104
- ICCP
- Modbus – Windows & Linux
- DNP 3 – Windows & Linux
- OPC UA – Server / Client
-
HMI Visualization & BI
- User Defined Symbol Editor
- Real-Time Generator Capability Monitoring
- Operator Load Shedding Overrides
- Load Inhibition Monitoring & Overrides
- UPS and DC System Dashboards
-
Web Clients & Apps
- Web Based Real-Time State Estimation
- Web Based Online Power Flow
- User Defined Themes with Energized, Area, & Grounding Coloring
- Estimated Outage & Fault Areas
- User Access Management
- System Redundancy
- Vehicle Location & Routing
- Crew – Dispatcher Two-way Communication
- Social Media – Twitter – Display & Updates
-
One-Line - Intelligent Graphical One-line Diagram
- Higher Resolution Display Support
- Snap-to-Grid
- Inline Remote Connector Insertion
- Bulk-Copy Paste for Equipment Cables
-
GIS - Electrical Intelligent Geospatial Diagram
Incremental import and enhanced data exchange format support.
- ESRI®
- MS EXCEL®
- GE Smallworld™
- CIM, XML, KML
- MultiSpeak®
-
Plot Manager - Advanced Multi-Study Plotting
- Plot Manager for Charts & Plots
- Plot Style & Interface Templates
- Auto-compare Consecutive Studies
- Batch Export to Excel & PDF
-
Engineering Libraries
Verified & Validated
- Expanded Circuit Breaker Models with ZSI Settings
- Updated Cable Libraries per Cable Regulation Types
- New Protective Devices
- Relays, Circuit Breakers & Fuses
-
Autodesk Revit® Interface
Improve Engineering Design Quality
- Direct Two-Way Communication with Revit
- Validate Revit Electrical BIM with ETAP
- Export ETAP Simulation Results to Revit
- Intelligent Default Auto Mapping
-
DataX™ - Data Exchange
Digital Twin – AVEVA Engineering Interface
SKM Power*Tools® Conversion Tool
New & Enhanced Built-in Conversions
- CYME 8.0 Import
- EasyPower 9.x & 10 Import
- MATPOWER Import
- RAW, SEQ, DYR V33 & V34 Import
- Excel Import
- Inverters
- Support for .xlsx format
- OpenStreetMap Import
- DC Railways
- Power Networks
Hardware-in-the-loop – HIL Testing
- Complete Workflow Linking ETAP & OPAL-RT
- Reduce Risk & Costly Commissioning Time
- System Validation before Implementation
- Export from ETAP to ePhasorSim
-
ETAP Application Environment Improvements
- Faster Calculation Speed
- Output Results to SQLite
- Multi-Language Release
- High Resolution Display Support
- Office 365 Compatibility
- Improved Print Preview quality
- Graphical Result Persistence
- License Manager Compatibility with IPv6
-
Multi-Language Edition
Multi-Language Edition - Localized
- Japanese
- Chinese
- Korean
- French
- Spanish
- Russian
- Portuguese
- Italian - Output Report
ETAP 18 offers a powerful set of new products and major features & capabilities. This game-changing release brings together innovative solutions for modeling, analysis, and operation at your fingertips.
Learn more-
etapAPP™ - Data Collection & Synchronization App
Collection & Verification
- Collect data, verify existing data & transfer to ETAP
- View ETAP data on mobile device
- Create new one-line diagrams on mobile device or append to existing
- Smart connections including auto-insert
- Layered diagram using composite networks
Mobile App
- Geotag asset information including pictures & synchronize with ETAP model
- Windows authentication for data security
- ETAP Data Connection synchronizes data with ETAP over the network
- Available for tablets running Windows® or Apple® iOS
-
StarZ™ - T&D Protection & Coordination
Protective Relay Performance & Evaluation
- Simulate model-specific protection settings & functions including distance, directional & load encroachment
- Plot R-X characteristics & seen impedances
- In-depth performance evaluation of impedance relays
- Evaluate protective device operation & coordination
- Intelligent alert viewer to identify & resolve setting & logic errors
- Virtually animate protective devices operation
- Breaker failure & relay communication
- User-editable scheme logic
- Use real-time operational data for system evaluation
- Intuitive relay setting editor
- Primary & secondary relay settings based on actual model
- Comprehensive relay library
Embedded Fault Analyses & Power Flow
- Sliding fault analysis
- Single fault analysis for unbalanced networks
- Unbalanced load flow & transmission line load-ability analysis
- Protective device sequence-of-operation
- Fault insertion between CT, VTs & CBs
- Multiple fault locations & resistances analysis in one-click
- Series compensated line evaluation with MOV action
- Support single-phase system & train applications
Plots & Reports
- Time state plots
- Time distance characteristic plots
- Time distance-resistance characteristic plots
- Detailed device setting reports
- Export relay settings to xml & Excel formats
Distance Relay
- Distance function
- Scheme logic (input, output, timer, latch, variables)
- Expanded current & voltage inputs
- Digital inputs
- Phase current summation
- Up to 6 setting groups with labels & copy/paste
Distance Relay Library
- Detailed distance protection element for over 40 relay models:
- Schweitzer
- GE Multilin
- ABB
- Schneider
- Alstom/Areva
- Siemens
- ZIV
- ERL Phase
- ARCTEQ
- Toshiba
- Universal (Generic)
-
ArcFault™ - High Voltage Arc Flash
ArcFault™ - High Voltage Arc Flash
- Arc flash analysis data for equipment above 15 kV
- OSHA 1910.269 Appendix E
- Arcing Fault Hazard Evaluation
- Model line-line & line-ground arc faults in open air
- Model three phase arc faults in open air (with Cf)
- Protective device sequence of operation for line-ground, line-line & three phase arc faults
- Auto-gap, working distance & auto-selection of minimum approach distance per NESC C2 2012/2017
- Minimum approach distance with or without tools
- Altitude & transient overvoltage correction factors
- Automatic or user-defined distance parameters
- Integrated with Arc Flash Result Analyzer
- Customizable coefficient editors
- User-definable PPE requirement editor
- Auto-update for worst-case incident energy
- Global or individual typical input data
- Integrated with Arc Flash datablocks
- Verified & Validated (V&V) against industry standards
Arc-in-a-Box- 15 to 36 kV
- Extended IEEE 1584-2002 model for 'Arc-in-a-Box'
- Typical and user-defined gaps between conductors
- Conversion factors from High Voltage Arc Flash (HVAF) to Arc-in-a-Box
- Incident energy reflectivity factors for box size
- Enhanced arc flash analysis data for equipment > 15 kV
- Designed for HVAF in renewable energy collector systems
Arc Flash - IEEE 1584 & NFPA 70E
- Compliance with NFPA 70E 2018 standard
- Customizable X-factors based on IEEE 1584-2002
- Inverter modeling for renewable systems
- Label formats for arc flash boundaries (ft.in, ft, in)
- Enhanced reports & labels for 64-bit MS Office
- User-defined arc flash boundary threshold
- Enhanced one-line diagram annotations
- Arc Flash Result Analyzer fields
Damage Point for Arc Resistant Switchgear
- Maximum arc current indicator & label
- Maximum arcing duration indicator & label
- Show arc resistant switchgear damage point on Star TCC plots
- Evaluate margin with actual arc current on TCC plots for compliance with IEEE C37.20.7-2007
- Designed based on IEEE PCIC-2017-03
-
eTraX™ - Rail Traction System
AC & DC Railway Simulation
- Tool for analysis & operation of tractions systems
- Solve transmission, distribution, traction, & signaling together
- Integrate GIS, planning, protection & operations
- Energy demand calculation based on train timetables
- Resolve challenges of unbalanced system operation
- Evaluate substation location & capacity
- Determine the impact of various rolling stock
- Determine capacity restrictions & analyze mitigation methods
- Determine impact of unplanned events on the traction power system using real-time data
- GIS for overhead catenary system
- Data exchange with third-party applications & templates
- Traction power equipment templates
- Utilize real-time data for Energy Forecasting & Switching Management
- Verified & Validated against benchmarks
Traction Elements
- Overhead Catenary System
- Track Resistance
- Traction Substation (TSS) & Switching Station (SSP)
- Traction Rectifier - Controlled & Uncontrolled
- Train Station & Platform
- Insulator, Insulated Overlap, neutral section & Isolator
- Traction transformers - Auto, Booster, Scott-T
- Signal, Speed Limit, Level Crossing
- Distance, Elevation & Bend Radius
Traction Analysis
- Train Performance Calculation
- Solve unbalanced AC & DC systems together
- Unified AC & DC Time Series Power Flow
- Optimized for multi-core CPU
Interface
- Track Editor & Warehouse
- Line Editor & Warehouse
- Route & Timetable Editor
- Automatically generate train timetable based on number of trains, head-way, dwell time, etc.
- Import train schedule from Excel format for faster data entry
Results & Plots
- Graphical plots using Plot Manager
- Rail energy consumption including maximum, peak & average rolling demand
- Trip profiles - acceleration, speed, elevation, etc.
- Substation power flows & voltages
- Train power flows & voltages per route
- Rail voltage, track potential
- Alerts based on EN 50163 & EN 50329 standards
-
TDLF - Time Domain Load Flow
Time Series Load Flow
- Simultaneous time series simulation of AC & DC networks
- Demand & generation
- Diversity factor, demand factor, unbalance factors, etc.
- Voltage drop, energy losses, yield, and costs
- Time series behavior of adjustable devices
- Transformer load tap changers
- Switched capacitor
- Voltage regulator
- Single & multi-year load growth analysis
- Irradiance, temp & load profile library
Unified Load Flow
- Solve AC & DC systems together
- Solve LV power panel, UPS circuits & facility network simultaneously
- Handle load & source connection below panel
- Allows for panel & UPS loop connections
- Enhanced current limit modeling for inverters
- Optimized for multi-core CPU
- Simultaneous time series simulation of AC & DC networks
-
DataX™ - Data Exchange
Autodesk Revit
- Import Revit drawings to ETAP one-line diagrams
- Supports incremental Revit model import
- Support for .RVT v2017 - v2019
- Identify & alert modeling issues
- Auto-generation of one-line diagram
- Smart Connect: Revit Plug-in to ETAP
ArcGIS Import & Export
- Import ESRI ArcGIS electrical information
- Map ArcGIS attributes with ETAP elements & properties
- Database mapping via graphic user interface
- Export ETAP GIS electrical data to XML
- Support for ESRI ArcGIS 10.x
MultiSpeak
- Import & export power system data
- User-defined mapping of elements & properties
- Supports MultiSpeak v3.0 & v4.0
Common Information Model, CIM
- Import & export data from ETAP using CIM XML
- User-defined mapping of elements & properties
- IEC 61970 & IEC 61968 standard
Universal Mapping
- Powerful element & property mapping
- Customizable logic definitions
- Pre-defined math & power functions
- Categorization of devices for easy recognition
- Supports CIM, ESRI ArcGIS, AVEVA Electrical, SmartPlant Electrical, MultiSpeak, MS Excel.
Model Conversion from SKM PTW
- Detailed built-in conversion tool from SKM PowerTools®
- Converts SKM PTW versions 6.x, 7.x, and 8.x
- One-line diagram conversion based on original layout
- Data consistency checking & validation
- Automatic protective device settings mapping
- Create & save device library mapping as templates
- Import of user-created Time-Current Characteristic (TCC) curves
- Support for multiple one-line drawings and MCCs into composite networks
-
Renewable & Microgrid
Wind Turbine Generator (WTG)
- Dynamic models based on IEC 61400-27-1-ed1
- Type 3A
- Type 3B
- Type 4A
- Type 4B
- Short circuit modeling per IEC 60909-2016
- Crowbar & current limit short circuit model with active & reactive
- Auto-trip voltage & duration for LVRT
Solar/Photovoltaic Inverter Modeling
- Current limit model for short circuit
- Reactive & power factor control with constant current limitation
- Minimum & maximum operating values for current limits
- Low-voltage ride through (LVRT) auto-trip voltage & duration for incident energy reduction
- Enhanced current limit modeling for inverters
- Inverter modeling for arc flash in renewable energy systems
Microgrid Modeling
- Transient Stability (TS) to User-Defined Dynamic Model (UDM) network control signal types
- Internal or external inputs from:
- Power system stability network
- Real-time input measurements or tags
- TS voltage & power flows from network can be accessed by UDM Microgrid Controller
- User-defined renewable energy models for Wind Turbine Generator & Photovoltaic Array
Transient Stability
- Line-to-line fault event simulation
- Line-to-line-to-ground fault event simulation
- Improved synchronous machine saturation model
- Enhanced built-in excitation systems
- Enhanced frequency-dependent network & generator modeling
- Microgrid Controller network parameter inputs to UDM
- Improved inverter transient response
- Enhanced UDM model library
- Plot Manager interface
- Dynamic models based on IEC 61400-27-1-ed1
-
ETAP-RT™ - Power Monitoring & Control
ADMS - Advanced Distribution Management System
- Long-Term Load Forecasting
- Automatically download weather data
- Automatic incremental model updates
- Improved dispatcher training simulator
- Integrated restoration & isolation plans
- Historical, library & Excel data sources
SCADA System & Architecture
- MCC / BCC redundancy with disaster recovery
- Encryption & authentication security
- Self-healing strategies
- Integrated front-end processor with native communication drivers
- Web services communication
- Automatic historical data replication
- Unlimited signals or measurements
- Native IEC 60870 protocol
- Native ICCP protocol
- Interface to ADMS & OMS
Visualization & Dashboards
- Common workstation & Web HMIs
- HMI objects library
- Alarms & Events displays
- Service Tags / Operator Notes integrated with advanced applications
Real-Time & Historical Reports
- User-definable scheduled & on-demand reports
- Real-Time & historical data
- Customizable Alarms & Events reports
- Web enabled reporting
- PDF & Excel formats
Intelligent Load Shedding
- Thin-client HMIs
- Monitor spinning reserve, load to shed, load status
- Automatic & manual trigger controls
- Graphical load shedding event analyzer & viewer
- Hardware communication dashboard
Load Preservation
- Steady-state & transient response
- Fast response time (10ms) with secured communication
- Priority optimization based on number of trips per time period
Switching Order Management
- Mobile interface
- Crew assignment & field confirmation of actions
- Link switching sequences to orders
- Scheduled & active order viewer
- Control center confirmation of order
- Estimated time to completion
- Classification & Area of Responsibility management
Switching Sequence Management
- Unbalanced system validation
- Transfer to Mobile Switching Order Management
Alarm Management
- Prioritizes events via graphical & tabular views
- Integrated SMS & e-mail services
Generator Operations & Maintenance
- Track life operating time & cost
- Multiple maintenance levels notifications
- Alerts for due maintenance schedules
-
etap iCE™ - Intelligent Control Enterprise Hardware
Remote Terminal Units
- Substation Data Acquisition & Control
- Field/pole mount RTUs
- Integrated RTU & fault deletion
Controllers
- Substation Automation
- Intelligent Load Shedding
- Generation Control
- Data Acquisition
- Secure & Scalable Controller
Communication Protocols
- IEC 60870-5-104/101
- DNP 3
- Modbus
- IEC 61850
- MMS/GOOSE
- GPRS, xDSL, VSAT, Tetra
-
System Modeling
One-Line Diagram
- Enhanced auto-build & layout
- Enhanced batch print & Zoom views
- Synchronized presentation views
- Region classifications & coloring
- Paste data to multiple elements
- Remote connectors
- Support remote connection for CT & VTs
- Split differential protection schemes across nested networks
- Avoid intersections for multiple input configuration
Geospatial Diagram
- Intelligent Geospatial Diagram
- Feeder & Substation Diagrams
- Geospatial model manager
- Import from 3rd Party geodatabases
- Synchronized with one-line diagram
- Download background maptiles from Bing or Google Maps using ETAP MapServer™ (requires API key)
- Edit Geospatial Diagram similar to the one-line diagram, such as add, modify, & reconnect elements
- Circuit & feeder tracing
- Decluttering, color themes, user-defined symbols
- Graphical display of study results & alerts
- Study result & alert animation
Plot Manager
- Plot & view results from multiple studies
- User-configurable plots & settings
- Customize properties & save as template
- Works with all ETAP modules
- User-defined application styles
- Automatic data fit to plot
- Automatic label layout
- Zoom, pan, tile, etc.
Datablock
- Expanded input data & study results
- Arc Flash & Motor Starting results
- Display results, input, tags
- User-defined templates
- Auto-adjusting protective device settings
- Independent tooltip & display
- Duplicate datablocks across multiple views
ETAP Application
- Installation wizard
- Keyless license manager
- Ribbon bar for Ground Grid & Cable Pulling
- Windows Active Directory authentication
- Library defragmentation & compaction
- Improved performance & analysis run-time
Elements
- Series Capacitor
- User-selectable capacitor location
- Calculate degree of compensation
- Consider MOV protection & bypass
- Switched Capacitor
- Automatic control modes: voltage, current, power factor
- Control buses & branches
- Distribution Voltage Regulator
- Automatic control modes: forward, reverse
- Include line drop compensation (LDC)
- Per phase voltage regulator adjustment
- Control based on load side voltage requirements
- ZigZag Grounding Transformer
- Consider effect in unbalanced studies & harmonics
- Alert based on nameplate rating
- Traction Power Elements
- Rectifier - Controlled & Uncontrolled
- Transformers - Booster, Auto, Scott-T
- Speed, Elevation, Signal, etc.
- Insulator & Isolators
- Distribution Elements
- Jumper, cut & open point
- Distributed load
- Busway (trunking busbar)
- User-defined or typical impedance
- Alert based on nameplate rating
Elements - Dynamics & Safety Modeling
- Busbar
- Inverter
- Wind turbine generator
- Photovoltaic array inverter
- HVDC - Voltage Source Converter (VSC)
Rule Book - Harmonic Compliance Limits
- ANSI/IEEE 519-2014
- IEC 61000-3-6: 2008
- User-defined grid code & local standards
Engineering Libraries
- Distance relay
- Distribution transformer
- Train rolling stock
- Traction rectifier library
- Sector & profile library
- Over 450 new V&V protective device models
- Over 40 detailed distance relay models with manufacturer specific settings
Equipment Warehouse
- Overhead line – phase, ground, tower/pole
- Overhead catenary
- Power cables
- Distribution transformer
- Low-voltage circuit breakers
- Power fuses
- Railway track
- Equipment reliability
-
Analysis Module
Harmonics & Power Quality
- Compliance with power quality standards
- IEEE 519-2014
- IEC 61000-3-14
- IEC 61000-3-6
- Global, local & individual location compliance rule book for voltage & current distortion
- New skin effect models for motors & transformers
- Enhanced current distortion alerts
- Automatic TDD current distortion limit evaluation
- Enhanced voltage & current alerts with percentile multipliers
- Enhanced load equipment cable modeling
Star™ - Protection & Coordination
- Compare Revision and Base Device Settings Report
- Sorting & filtering options for device settings report
- Globally include one-line diagram during batch print
- Expanded relay current & voltage inputs
- Added relay internal phase current summation
- Up to 6 settings group with labels & copy/paste
- Ground & neutral protection for overload function
Motor Starting
- Enhanced inverter model
- Plot Manager interface
Short Circuit
- Compliance with IEC 60909-2016 Ed. 2.0
- Variable fault current vs. voltage
- LV to EHV system fault current calculation
Reliability Assessment
- Reliability warehouse
- Multiple phase configurations
- GIS system element handling
- Unbalanced system reliability calculation
- Reliability new indices
- CTAIDI
- ALII
- ACCI
- Reliability momentary indices
- MAIFI
- MAIDI
- Optimized for multi-core CPU
Transient Stability
- Line-line & line-line-ground fault actions
- Improved synchronous machine saturation modeling
- Enhanced frequency-dependent network & generator models
- Enhanced Motor Parameter Estimation
- Enhanced built-in excitation system models
LV & Cable Systems
- Ground Grid & Cable Pulling user interface
- User-defined Final Temperature for cable damage curve plotting
- Compliance with power quality standards
