Marine Modeling & Visualization

Modeling & Visualization.

Model and visualize offshore and onshore marine power systems

Create, configure, customize, and manage your marine electrical system model. Core modeling and tools allow you to quickly and easily build 3-phase and 1-phase AC and DC network one-line diagrams with elements including detailed instrumentation and subsea components.

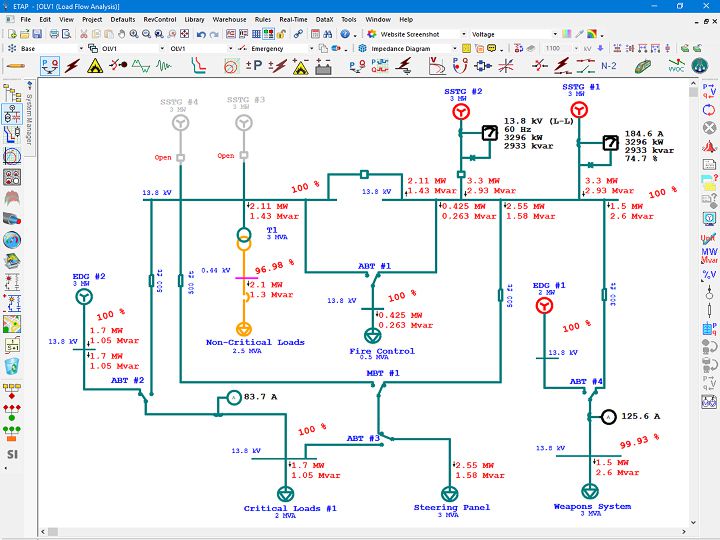

Marine Electrical Diagram

Intelligent modeling environment to create, configure and manage marine electrical system models.
Multi-Dimensional Database

Unique feature that combines unlimited system data, topology and views in one database

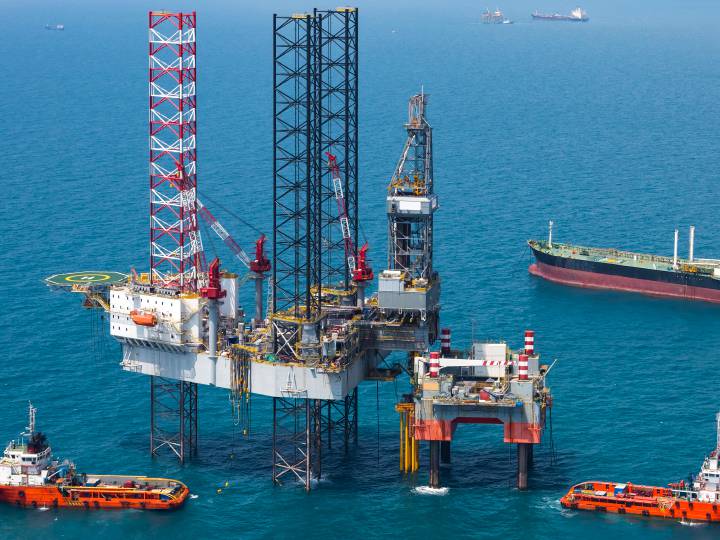

Submarine Cable

Sizing, & Ampacity Software for a complete analysis for subsea cable systems.
Subsea HVDC Link

Simulate HVDC response under steady-state and transient conditions
