Fast & convenient graphical result comparison from multiple studies built on Python™ Framework
Plot Analyzer is an advanced solution for graphical report comparison and data analysis. Plot Analyzer allows for multi-study simulation analysis in a single graphical plot view. Users can leverage its flexible and intuitive interface to compare, generate, and maintain high-quality plots for their power system studies in this manner, maximizing productivity and saving time on deliverables.

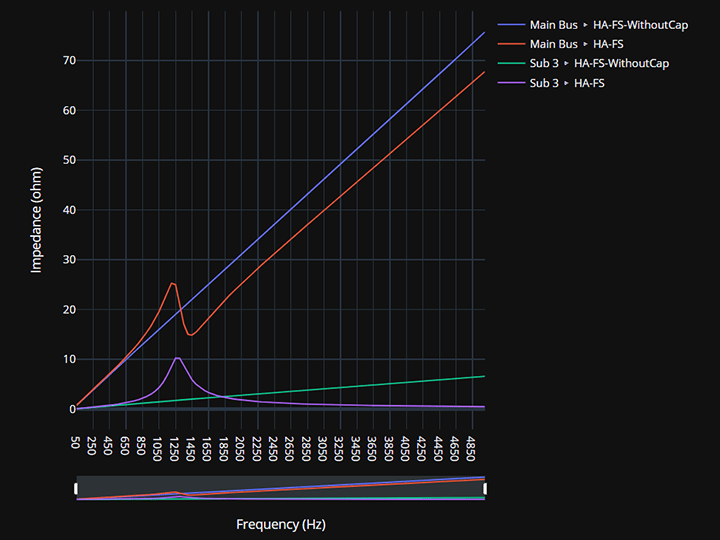

Fast & convenient graphical result comparison from multiple studies

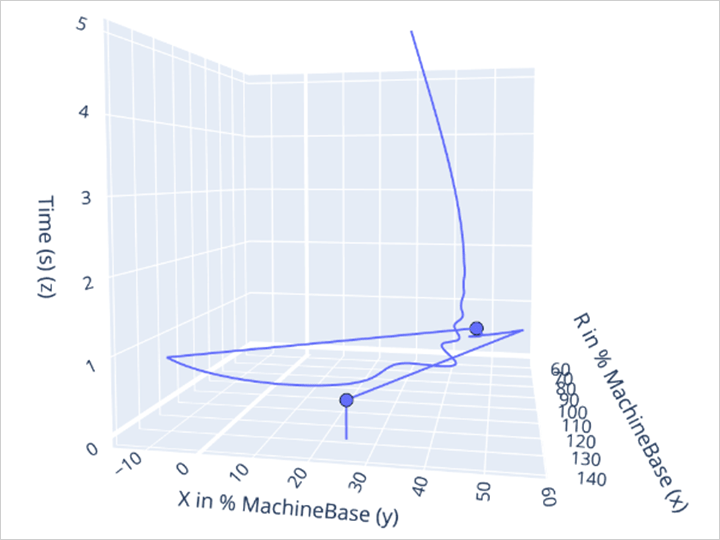

Automatically generates 3D plots based on results variables as applicable

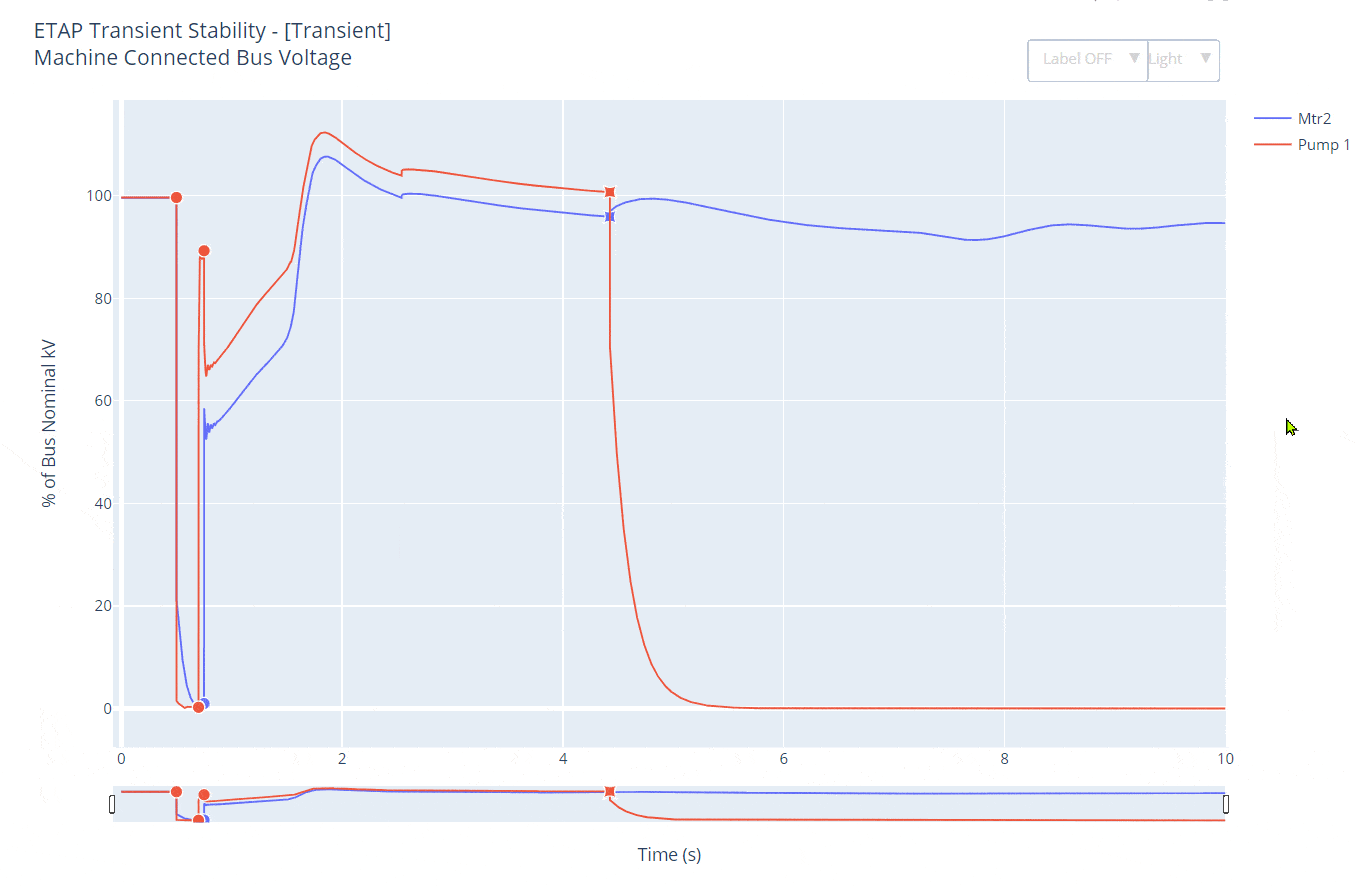

Switch between Dark and Light Mode based on your preference and style

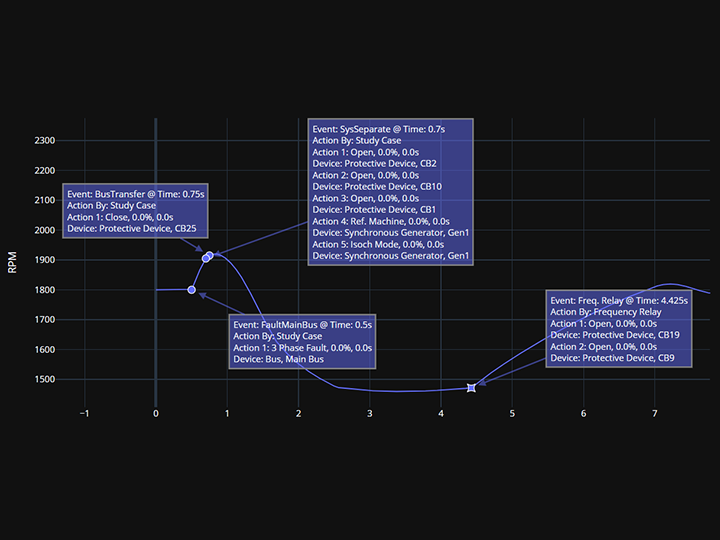

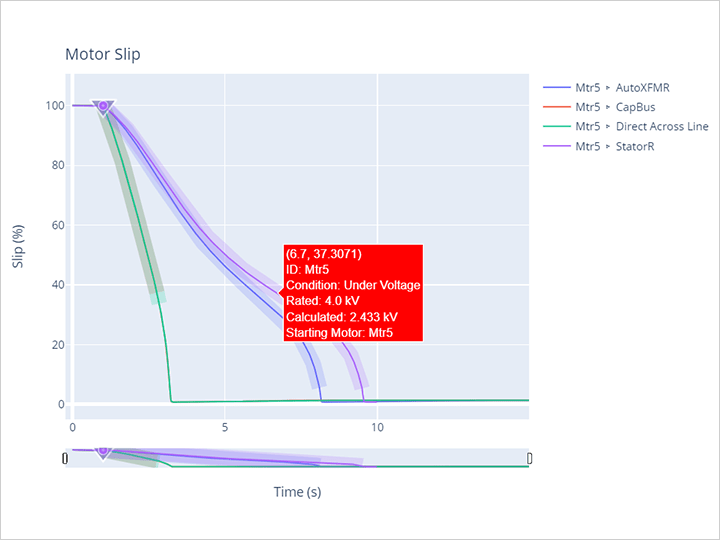

Hover tooltip or printable events from study case or automatically triggered

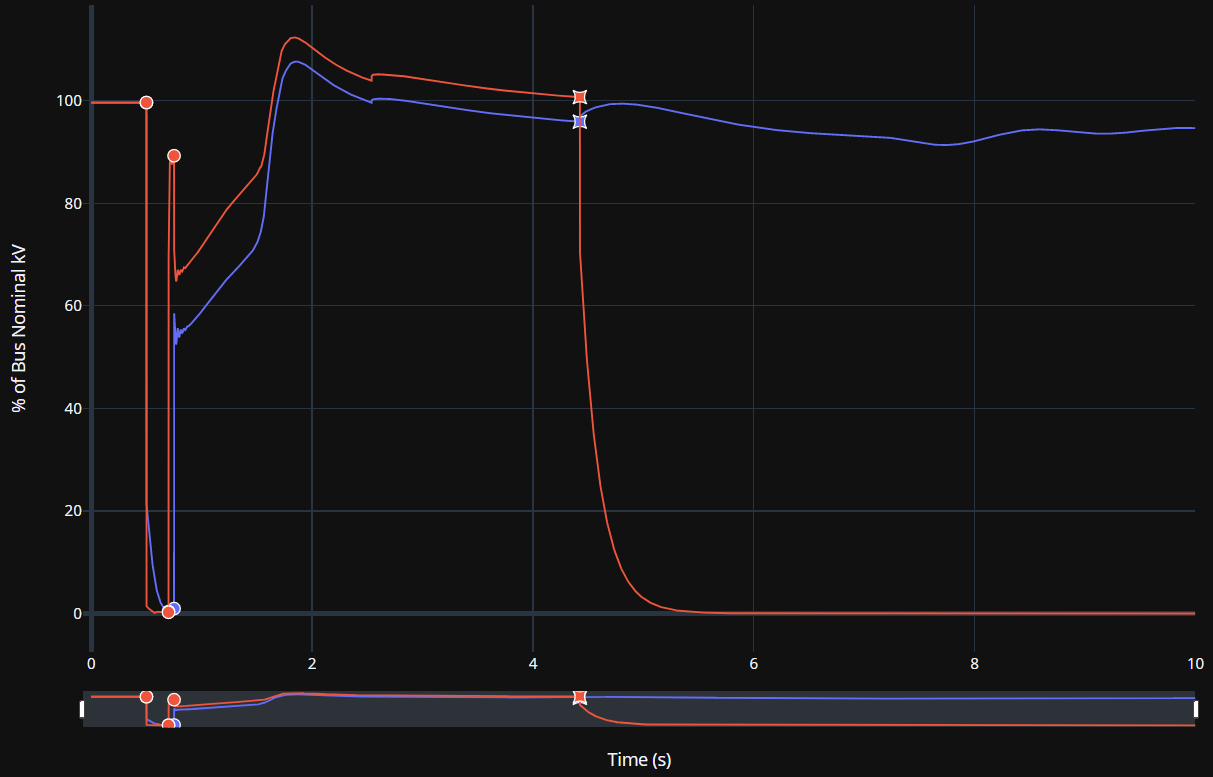

Move your mouse to hover on all traces or plots and view the values together with the device ID at the same time

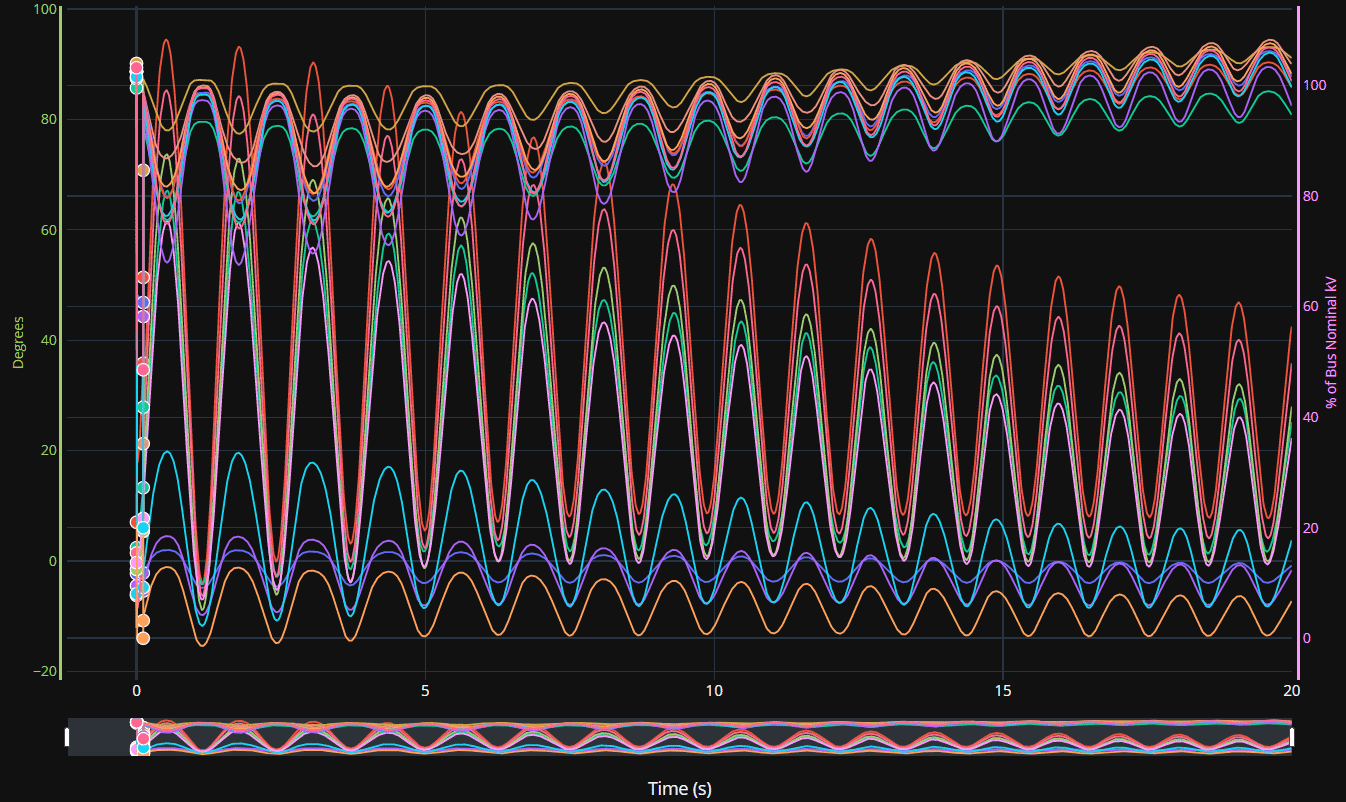

Convenient zoom and pan to explore and view plot details

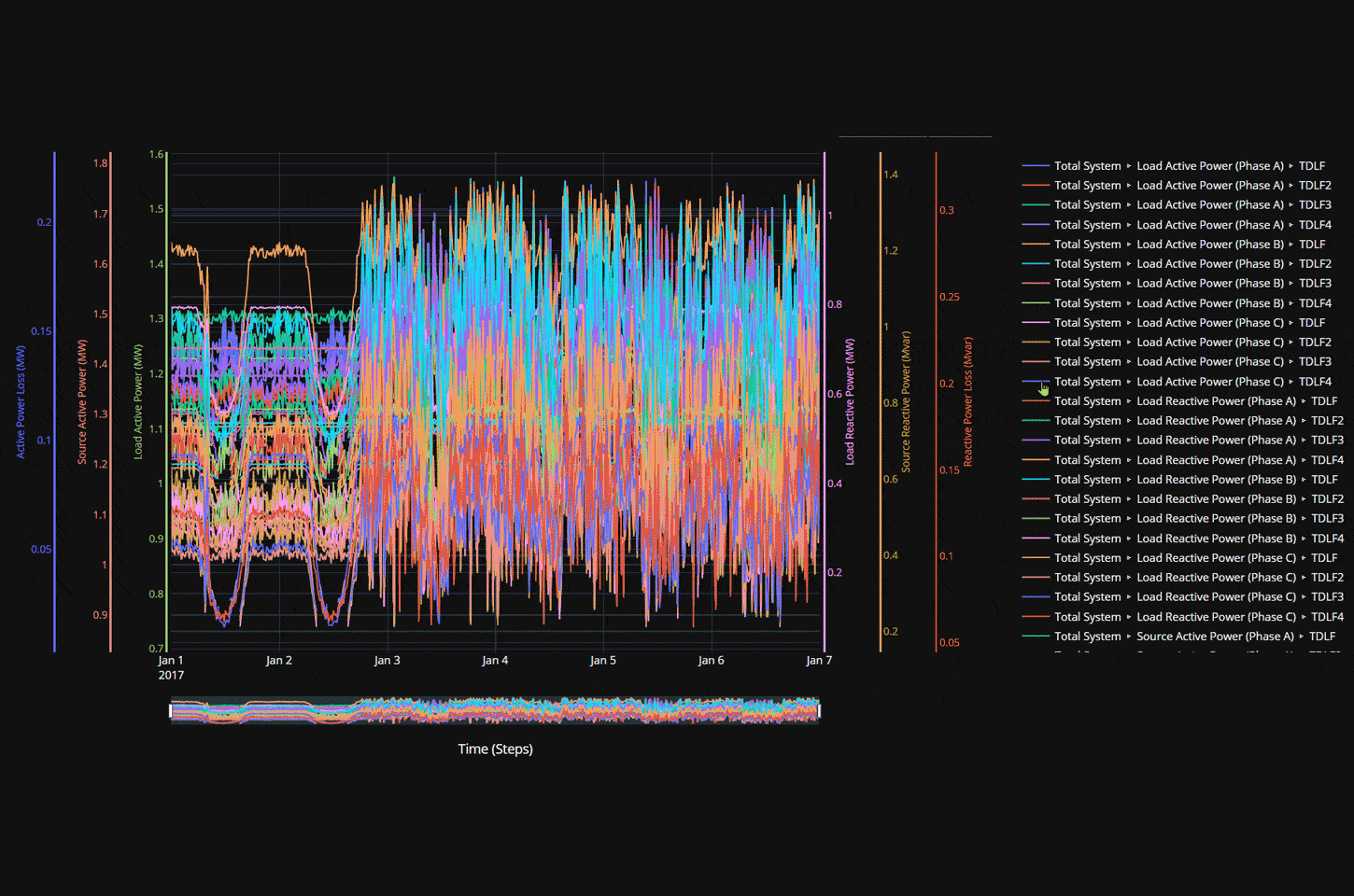

Convenient double-click method to isolate single or multiple set of traces

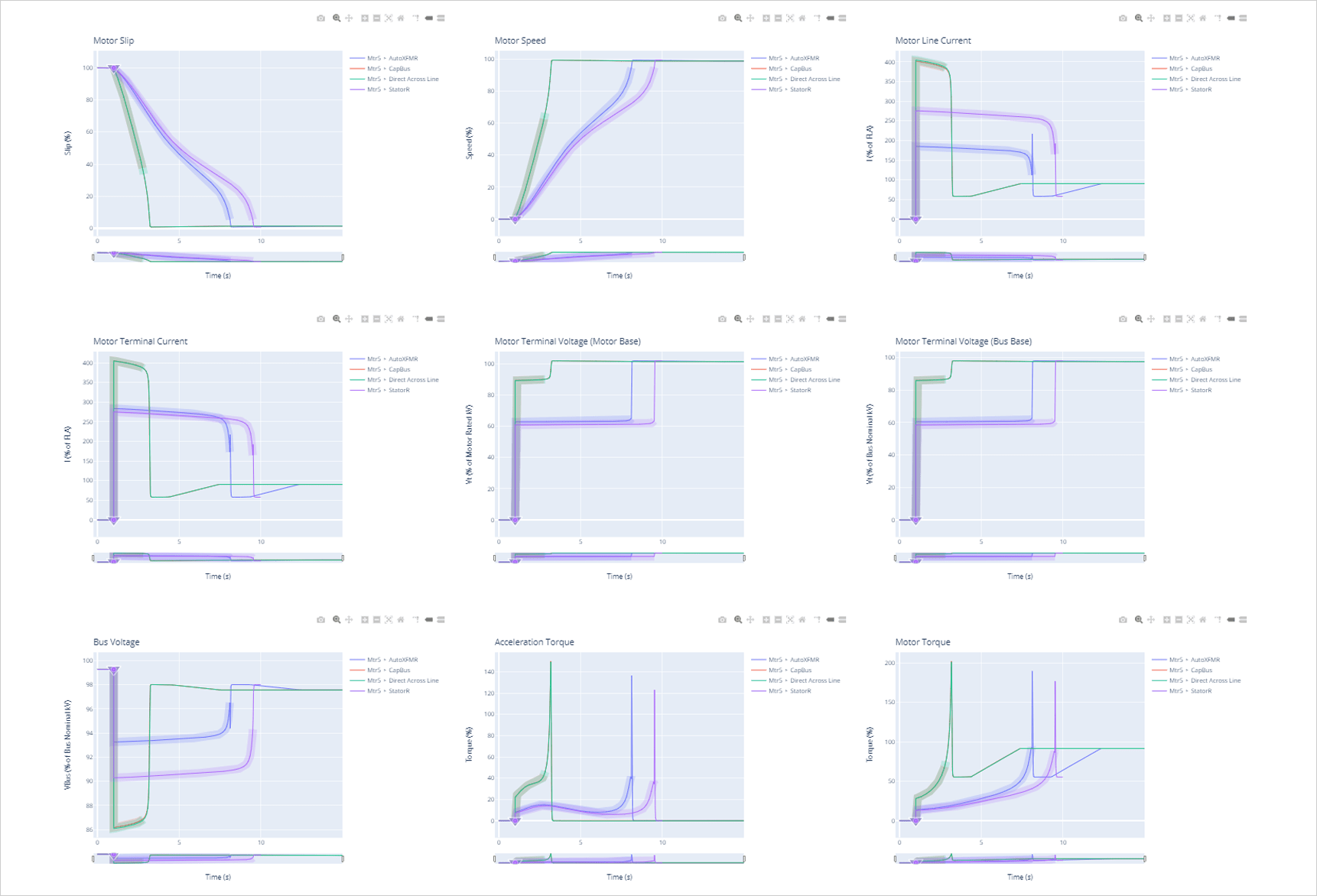

Consistent & Exact multiple chart responsive layout in your favorite web browser
