Transient Stability Software

• Plots, one-line display, & text reports
• Synchronous generator & motor rotor angle & speed
• Synchronous generator & motor voltage & current
• Synchronous generator & motor mechanical & electrical power
• Exciter voltage & current
• Induction motor slip & torque
• Motor current & terminal voltage
• Motor mechanical & electrical power
• Machine terminal impedance locus
• Branch power & current flow
• Bus frequency, voltage, volts/hertz, & more
• Bus volts/hertz vector difference
• Superimpose plots
• Time-varying graphical one-line display of results
• One-line playback with list of events
• Customize output reports using Crystal Reports^®

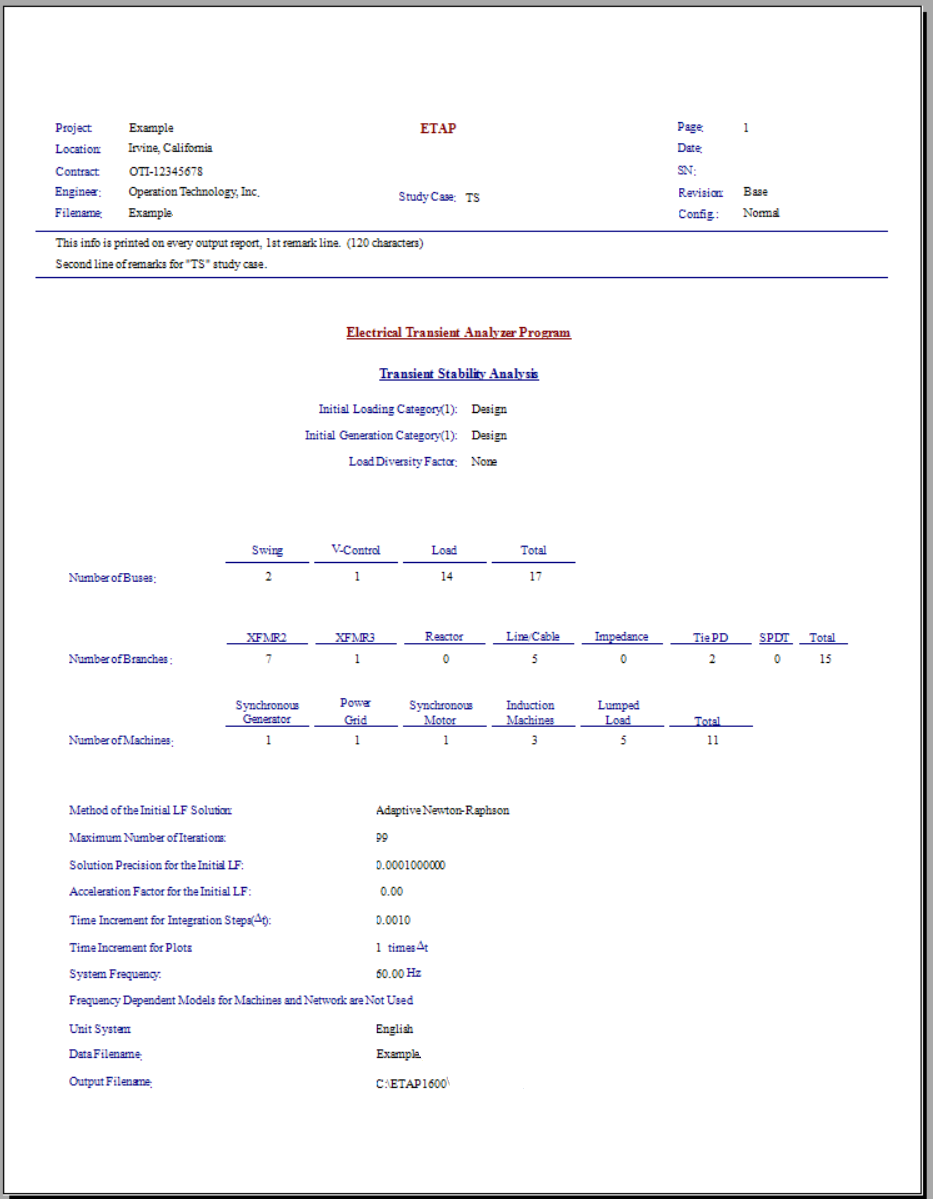

Transient Stability Software Plots and Reports
