ETAP-API – Connect Remotely to ETAP as a Service
ETAP API is ETAP's public-facing RESTful API. This API can be consumed from any language on any device. The device can be the machine ETAP runs on or another device on the same network. ETAP API enables interoperability with ETAP. This interoperability in turn fosters automation, scripting, and remote studies as a service to callers.
etapapi

The ETAP API is a RESTful service that runs inside DataHub.  DataHub is ETAP’s gateway for all data exchanges and is used by ETAP and third-party tools alike.  ETAP API is the most prominent DataHub addition.  While DataHub hosts various services (internal and public), ETAP API is the service mostly used by our customers.

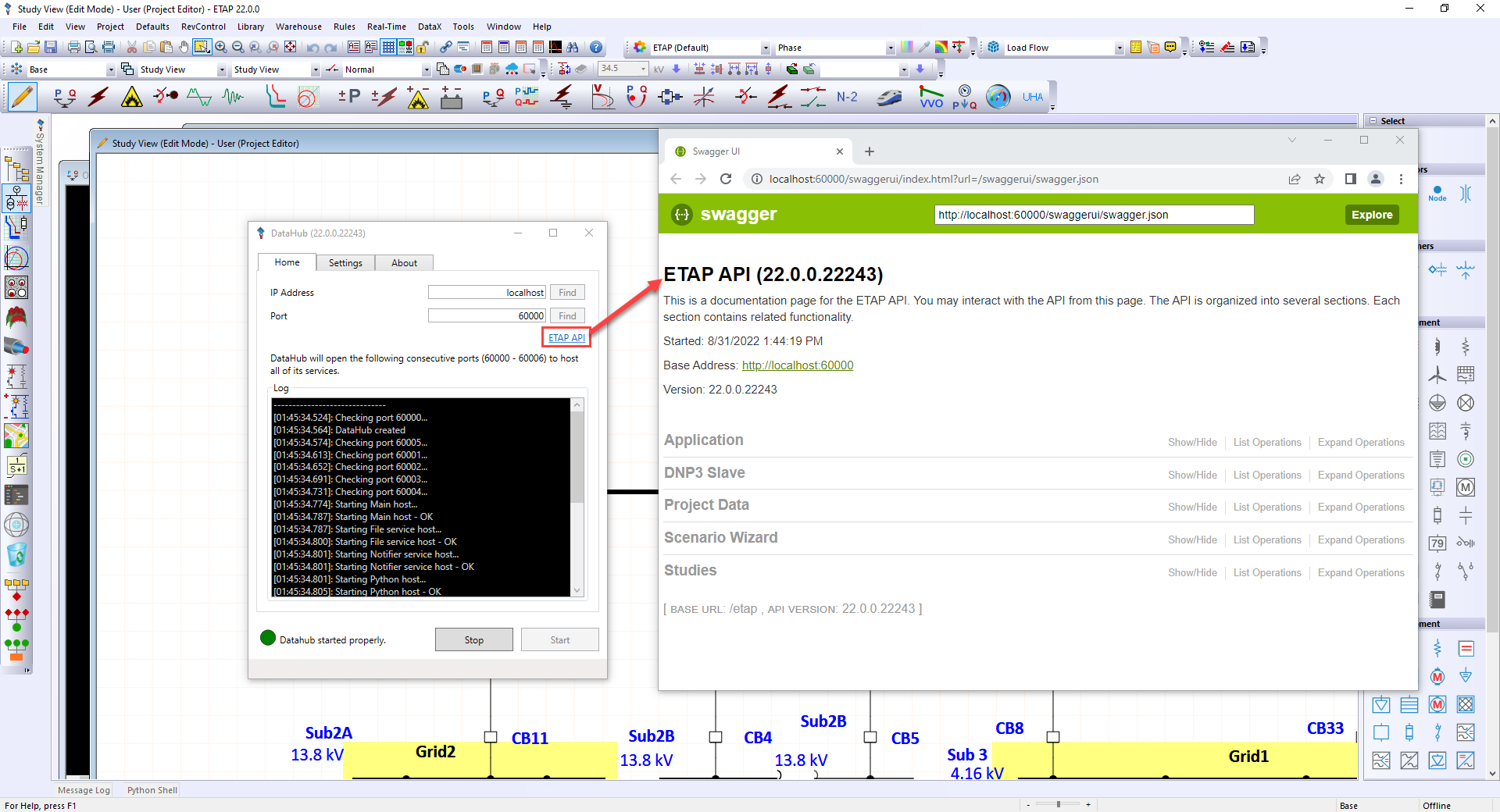

The ETAP API is divided into four major sections: Application, Project Data, Studies, and Scenario.  These sections can be all be explored via the Swagger page.  The Swagger page enables users to see and interact with the ETAP API without having to write client code.  It all works from the browser.  The Swagger page allows both for quick experimentation and as a place to see what is offered by the ETAP API.




Application Section

This section contains calls about the ETAP application. For example, in this section it is possible to retrieve both user name and project name.


Studies Section

This section contains calls to perform studies.  For example, one can request that ETAP run a load flow study from the Swagger page.


Project Data

This section contains calls that return project data.  For example, one can request to view all bus elements or get parameters for elements by type.


Scenario Wizard

This section contains calls that allow interacting with the ETAP Scenario Wizard.  With ETAP Scenario Wizard one can trigger pre-configured studies remotely and invoke UI updates.

ETAP API Sections

Networked Environment

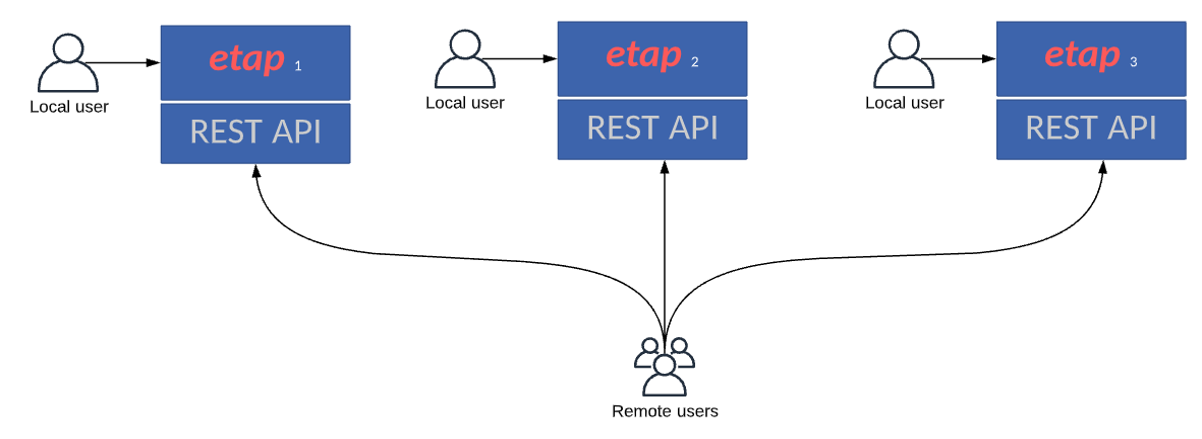

ETAP API offers endpoints for public consumption. When in a networked environment, a single client can access many ETAP instances. Each ETAP instance continues to function as normal to its local user—but it also becomes a service to remote users.

To enable this feature, users can write their own REST client or use ETAP's Python API which is our client-ready approach to consuming the ETAP API.

ETAP in networked environments gives rise to parallelism when running studies.  It also gives rise to test automation.  For example, a single client can command different ETAP instances to perform studies and return the results to a central location for comparison. One could then repeat the execution and even scale to batch studies over the network.


ETAP API Network Environment

What is a RESTful API

REST is an acronym for Representational State Transfer. It is an architectural style for distributed hypermedia systems and was first presented by Roy Fielding in 2000 in his dissertation.

Representational state transfer (REST) is a software architectural style that defines a set of constraints to be used for creating Web services. Web services that conform to the REST architectural style, called RESTful Web services, provide interoperability between computer systems on the internet. RESTful Web services allow the requesting systems to access and manipulate textual representations of Web resources by using a uniform and predefined set of stateless operations. Other types of Web services, such as SOAP Web services, expose their own arbitrary sets of operations.

SOAP Support

Historically ETAP supported SOAP services through WCF WSDL files as the backend. These services are being migrated toward the more interoperable alternative (REST). Therefore, while ETAP currently supports SOAP services, these will be deprecated soon.

API Organization

ETAP's REST API is organized into sections as summarized by the table below.

How can Software Communicate with ETAP

Each instance of ETAP exposes a dedicated REST API for public consumption over local http. One machine can run several ETAP instances (one per project)--or--one instance of ETAP can be commissioned on a per-machine basis. The latter is better suited for a large volume of parallel workloads (e.g., running a large number of studies in parallel).

Callers can call ETAP from any REST-compatible client. Some of the clients we currently work with:

  • C/C++
  • C#
  • cURL
  • Go
  • Java
  • Javascript
  • Nodejs
  • PHP
  • Python
  • Ruby
  • Shell
  • Swift
  • etc.
