Waveform Capture and Visualization

Waveform Capture and Visualization

Waveform Capture and Visualization

Automatically download, visualize, and archive electrical waveforms in COMTRADE formats from relays, meters, PMUs, and testing equipment.

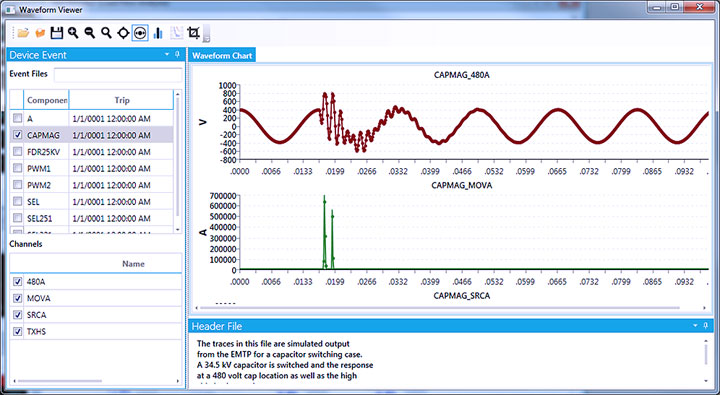

eSCADA Waveform Viewer

ETAP Real-Time automatically detects abnormalities in the system through Intelligent Electronic Devices (IEDs) forcing the interrogation of these devices for downloading waveform captures to the server. These will allow the engineers, controllers, and operators to perform assessments on their protection and control systems for the events captured.

Waveform Capture and Visualization Key Features

  • Automatic download of waveform captures
  • Automatic archive
  • Waveform capture viewer
  • Transfer data to DPET ETAP module for generator, governor, and exciter tuning
