SCADA Human Machine Interface

SCADA Human Machine Interface - HMI

Operation, Engineering & Management Views

ETAP offers powerful user friendly interfaces for operators, engineers, and managers to visualize, and make decisions on the operation of the electrical networks. ETAP provides various customizable views that allows the user to configure the HMI based on different system objectives.

ETAP’s embedded visualization tools, intelligent one-line diagram, and customizable notification views combined with prediction and simulation modules improve situation awareness by enabling the dispatcher to effectively and efficiently manage vast portions of the system.

Thin client application for monitoring & control
Customizable web-based interfaces & technology
SCADA Human Machine Interface (HMI) template library

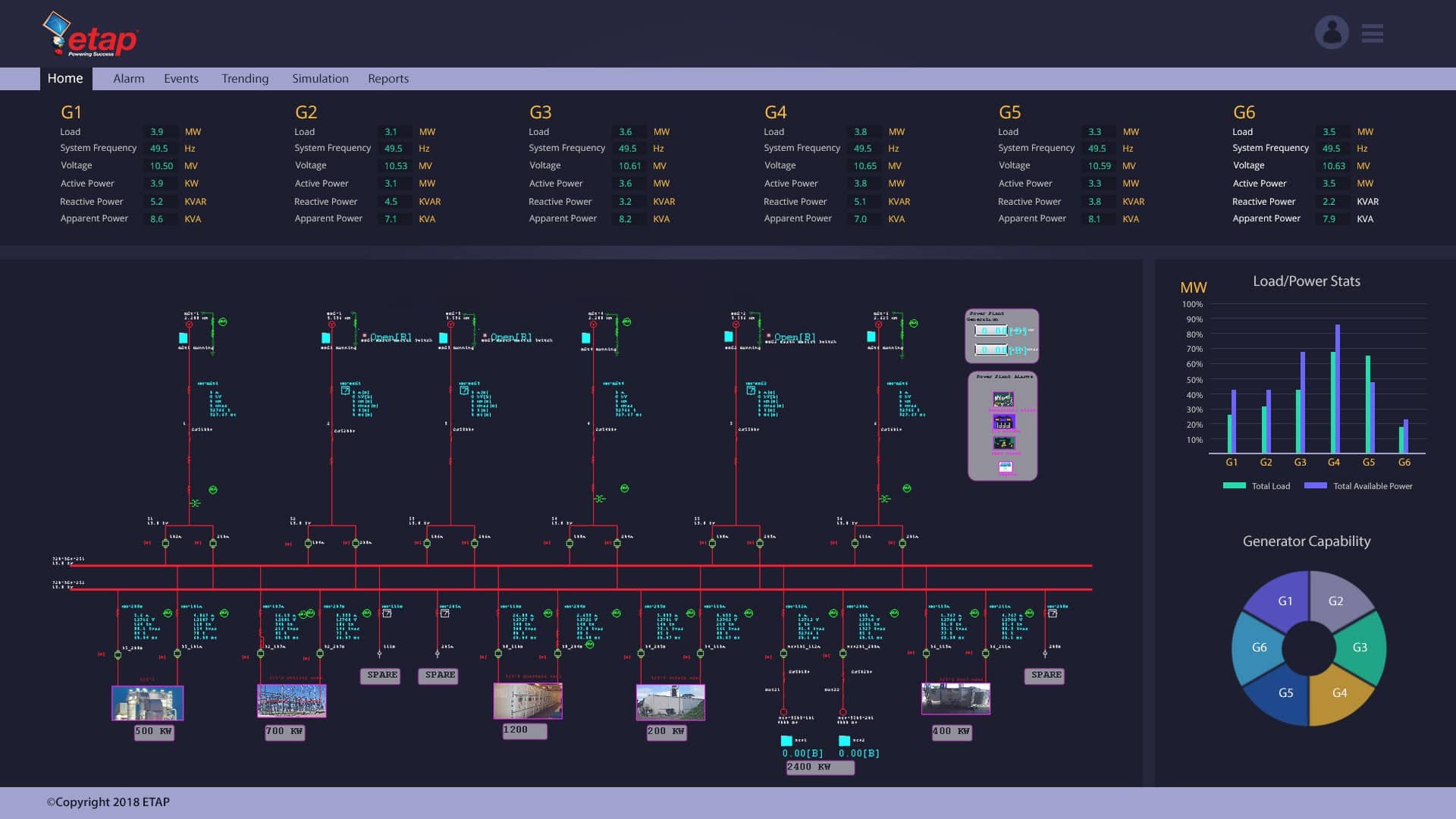

Web-based customizable HMI

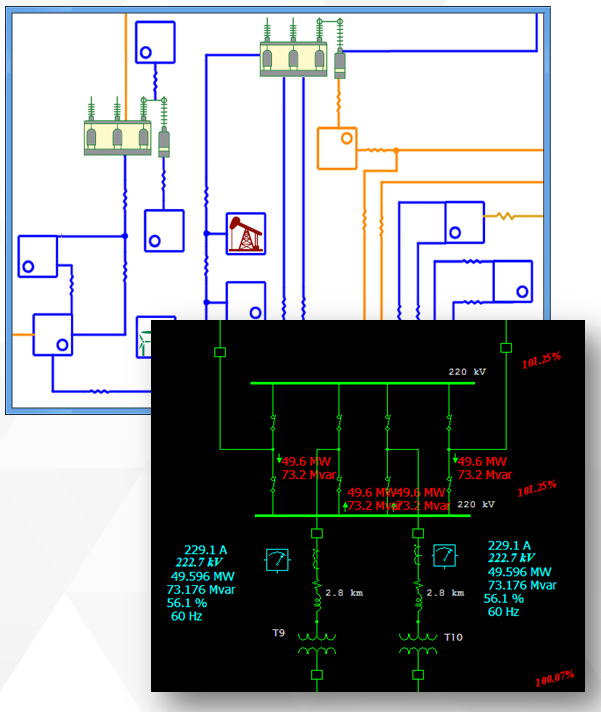

Substation Views

Create and manage single-line drawing schematic for 3-phase and 1-phase AC / DC, and grounding / earthling type’s networks with unlimited buses, distribution panel boards and other elements including detailed instrumentation.

Automatically generated form GIS model
Protective device online status
RMU, TMU, AMI & metering data display
Alarms & control displays
Feeder circuit breaker to end user display
Synchronized with substation & GIS views

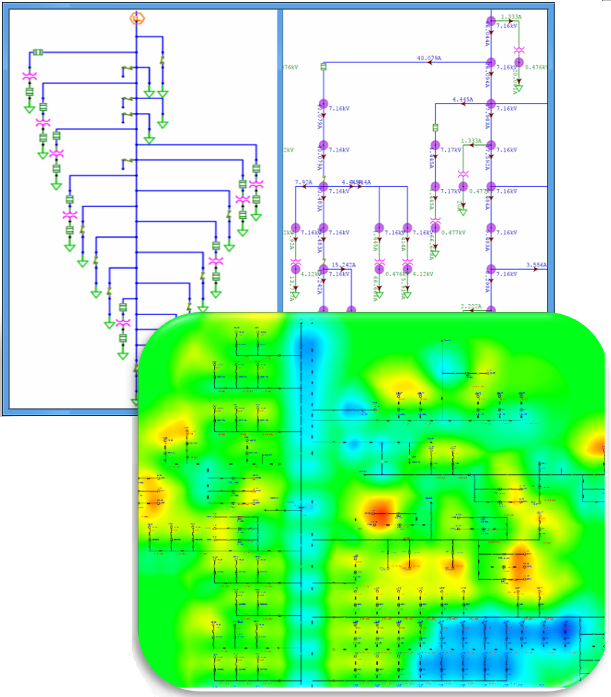

Feeder Schematic Views

The feeder schematic views allows operators to determine the status of each feeder topology in an orthogonal logical layout to easily identify portions of the systems affected by outages.

Automatically generated form GIS model
Protective device online status
RMU, TMU, AMI & metering data display
Alarms & control displays
Feeder circuit breaker to end user display
Synchronized with substation & GIS views

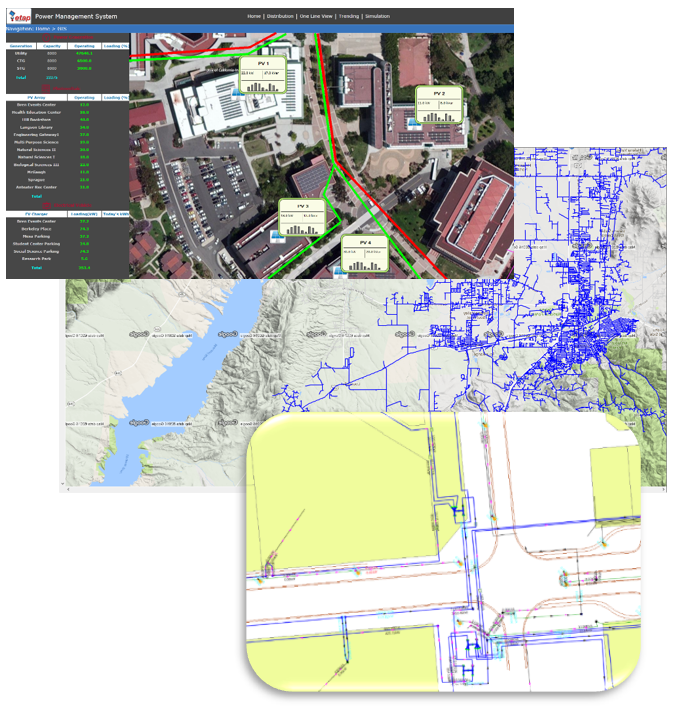

Geographical Views

Electrical assets and connectivity and geospatial data combined with real-time information. The ETAP Geospatial Electrical Diagram automatically generates substation, equivalent circuit and feeder one-line diagrams using the corresponding geographical data of power distribution systems.

Background shape files: Bing™, OpenStreetMap™
Tracing, energized coloring per feeder coloring
Fault Location

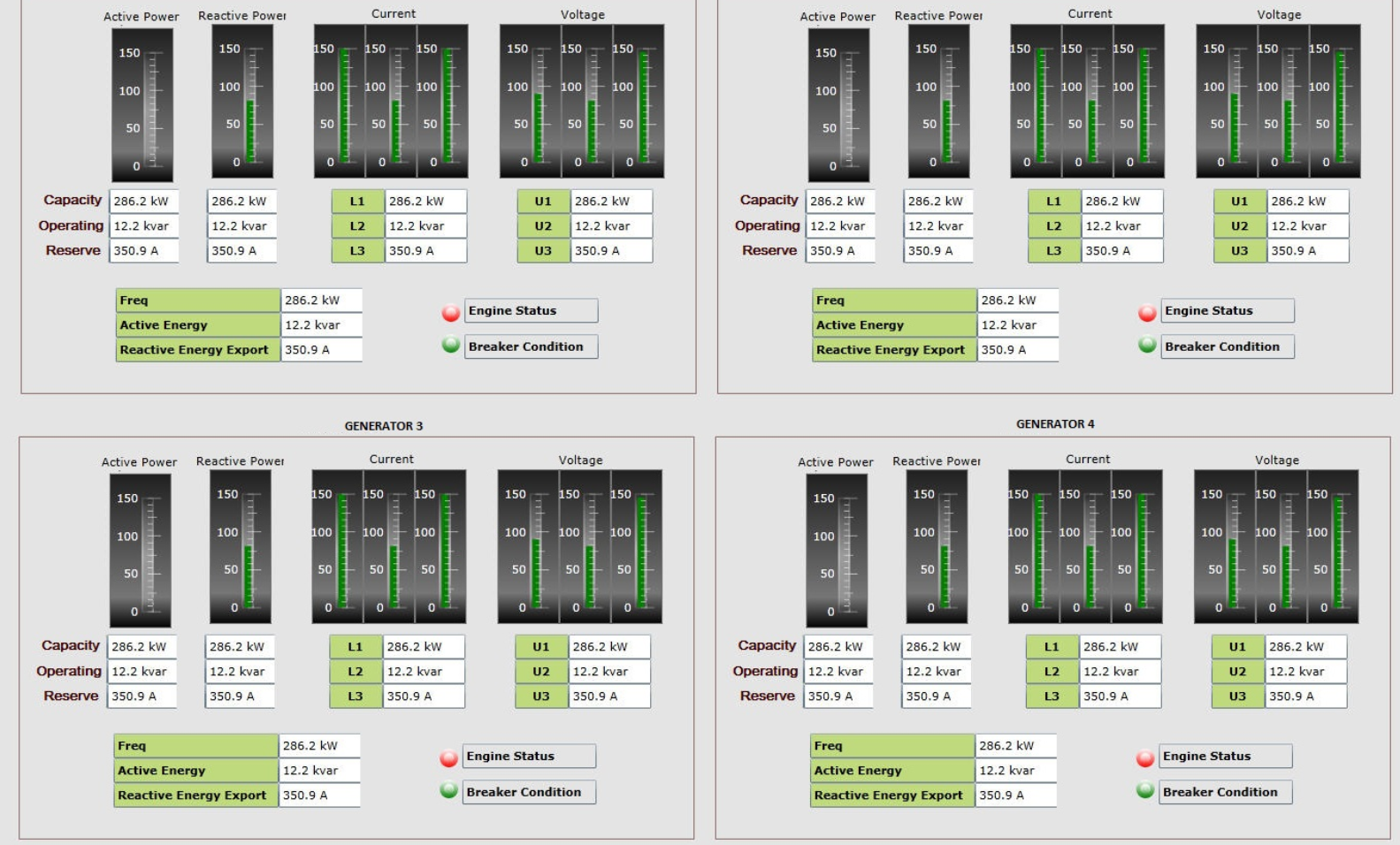

Operator Views

The operator interface provides graphical and tabular views of the network to allow the operators and dispatchers to make quick, accurate, and proactive decisions while performing critical tasks.

Customizable HMI
- Tabular, Schematic, GIS
- Gauges, Trends, Tabular. Control objects
Controls
Alarm & Event Log
Real-Time & archive data trending
Energy Accounting display
High level security client-server authentication
Operator Simulations

Web Views

ETAP thin client HMI operates within a fully distributed web based client/server architecture. Unlimited and customizable ETAP thin clients may be used to retrieve and display information using a web browser, WPF based SCADA HMI’s, etc. ETAP thin clients offer advanced visualization and rich user experience to the client location with minimum footprint.

High level security client-server authentication
User-defined report viewer
Remote load flow simulations
Alarm & Event Log
Real-Time & Archive data trending
