eMT™

Electromagnetic Transients Program

eMT™ - Electromagnetics Transient

Electromagnetic Transients Program

ETAP eMT™ offers a dedicated Electromagnetic Transients Program (EMT) for simulation and analysis of power system transients.
eMT - eMT is a simulator of AC power systems, low voltage power electronics systems, high voltage DC transmission (HVDC), flexible AC transmission systems (FACTS), distribution systems, and complex controllers

eMT provides an accurate and intuitive analysis software based on trusted EMT simulations powered by PSCAD.  eMT is a simulator of AC power systems, low voltage power electronics systems, high voltage DC transmission (HVDC), flexible AC transmission systems (FACTS), distribution systems, and complex controllers.

eMT integrates with Transient Stability program to offer eMTCoSim™ - CoSimulation of Electromagnetic and Phasor Transients to collectively solve large, complex, and multi-disciplinary system models with higher fidelity.



eMT Cable Energization Trapped Charge

Line & Cable Systems

  • Insulation coordination
  • Switching
  • Design
  • Wideband line & cable models
eMT Capacitor Switching

Switching Transients / Surges

  • Deterministic
  • Probabilistic
  • Single-pole switching
  • High-speed reclosing
  • Capacitor switching
eMT Type 1 WTG

Shaft Torsional Stress

  • Sub-synchronous resonance
  • Switching-induced

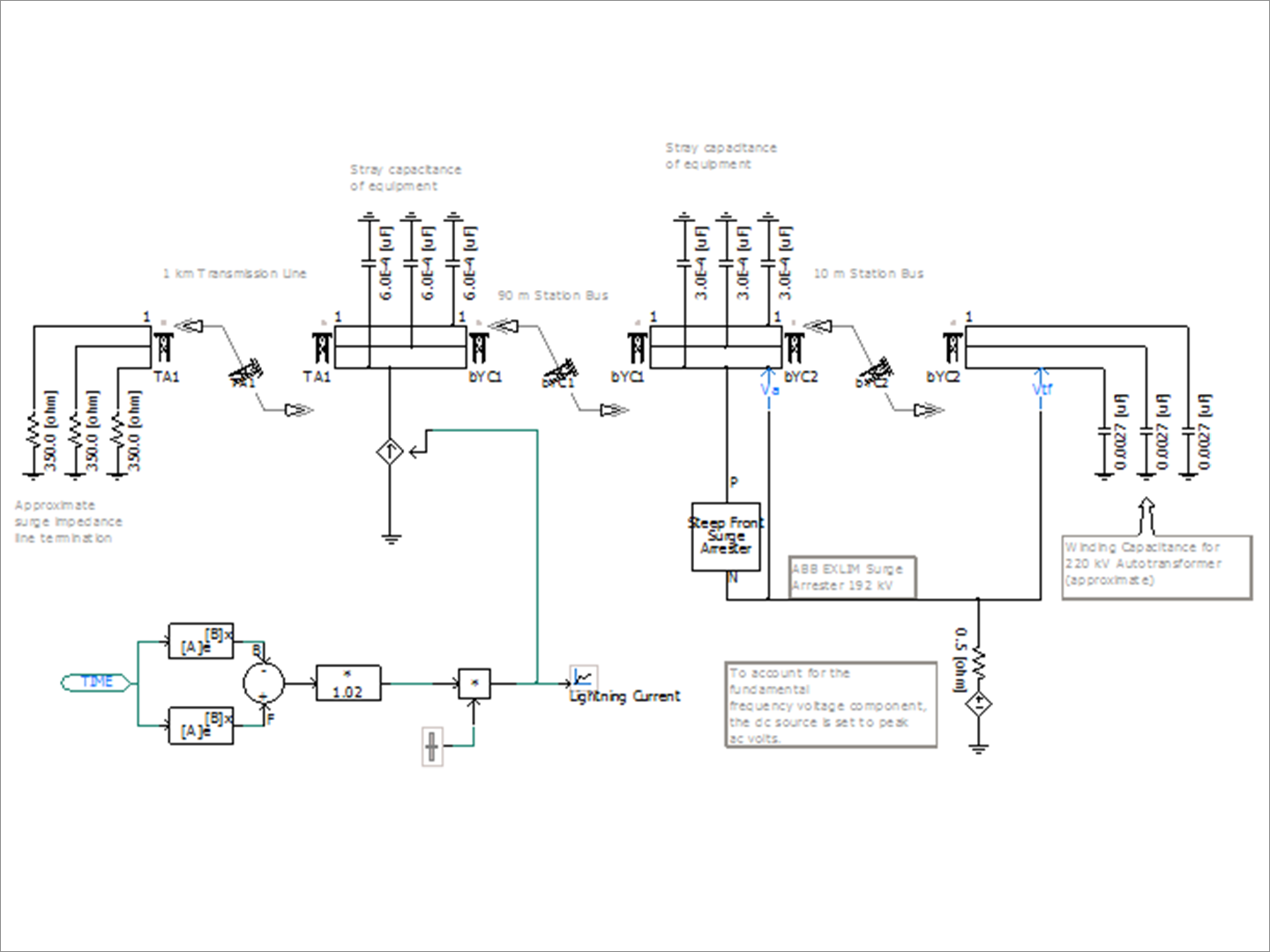

eMT lightning

Lightning Surges & Ferro-Resonance

  • Backflash
  • Induced surges
  • Incoming surges at stations
  • Power oscillations
  • Saturation problems
  • Surge arrester influences
  • Ferro-resonance

eMT Salient Sync Machine

Switchgear & Synchronous Machines

  • Transient Recovery Voltage (TRV)
  • Shunt compensation
  • Current chopping
  • Delayed-current zero conditions
  • Auto-excitation
  • Control

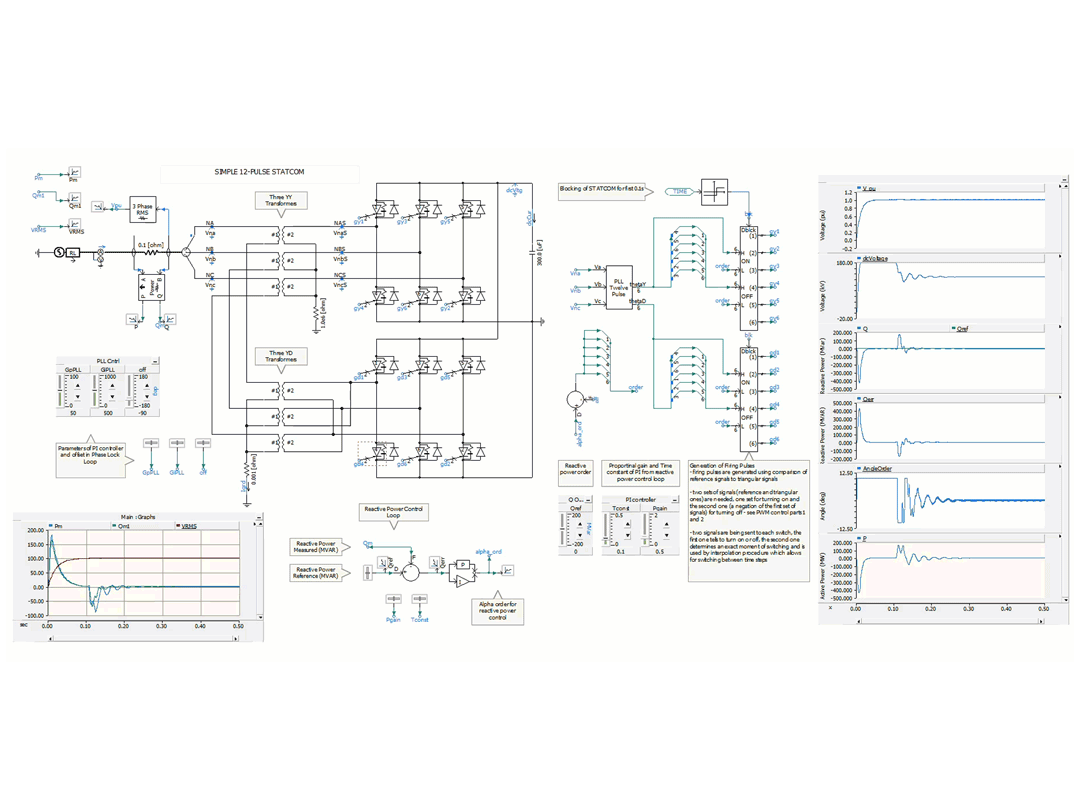

Statcom

Power Electronics

  • HVDC
  • FACTS
  • STATCOM

eMT™ Unlimited Package

eMT software is a value-added feature to ETAP solutions and offered in two versions to simulate small to large networks.

eMT Pro Unlimited version offer the following capabilities:

  • eMT™ Electromagnetic Transient Program - Professional License
  • Unlimited Node with 8 Parallel Simulations*
  • eMTCoSim™ CoSimulation of Electromagnetic & Phasor Transients (Requires Transient Stability)
  • ETAP – PSCAD One-way Data Exchange Interface



eMT™ 200 Package

This version is perfect for simulating small systems and co-simulation studies. eMT 200 is fully featured and restricted to network size of 200 nodes (Note that the control systems do not contribute to the node count).

  • eMT™ Electromagnetic Transient Program - Professional License
  • Total of 200 Nodes with 8 Parallel Simulations*
  • eMTCoSim™ CoSimulation of Electromagnetic & Phasor Transients (Requires Transient Stability)
  • ETAP – PSCAD One-way Data Exchange Interface



*Parallel Simulations
The parallel simulations feature permits projects to be run over multiple computer cores simultaneously, resulting in significantly faster results than when run in series over a single core. Parallel computing feature can be expanded to 16, 32, and 64 Cores as an option.

Videos

eMT™ - Electromagnetic Transient Program

eMT™ - Electromagnetic Transient Program

This webinar demonstrates EMT simulations of AC power systems connected to power electronic interfaced renewables (both transmission or distribution levels), applications of FACTS devices, and synchronous condensers to mitigate network dynamic response concerns and representation of complex control systems.

Literature

White Papers
