Arc Flash Analysis

  • Arc Flash

    Le logiciel Arc Flash identifie et analyse les zones d'arcs électriques à haut risque dans des systèmes CA.

  • ArcFault

    Analyse des défauts d'arc en utilisant les méthodologies NESC et OSHA pour les systèmes jusqu'à 800 kV

  • DC Arc Flash

    DC Arc Flash module calculates the incident energy for direct current networks.

Key Features

    Videos

    High Voltage Arc Flash for T&D, Industrial and Renewable Systems

    High Voltage Arc Flash for T&D, Industrial and Renewable Systems

    Arc flash analysis extends well beyond the scope of IEEE 1584 and NFPA 70E methodology for transmission, distribution, industrial and renewable energy systems. For many years, the industry has been lacking an ‘all-in-one’ solution for performing AC and DC arc flash analysis on LV, MV, and HV systems.

    IEEE 1584-2018 Arc Flash Incident Energy Calculation Method using ETAP

    IEEE 1584-2018 Arc Flash Incident Energy Calculation Method using ETAP

    This webinar will provide an overview of the fundamental differences between the IEEE 1584-2018 and existing arc flash methods. To better understand how the 2018 model combines empirical and arc flash physical behavior, the presentation will cover background and insights into the model development validation.

    Literature

    Arc Flash Analysis

    Arc Flash Analysis

    Introduction to ETAP Arc Flash Hazard Analysis module with instructions on how to setup arc flash calculations.

    ETAP Arc Flash IEEE 1584-2018

    ETAP Arc Flash IEEE 1584-2018

    ETAP Arc Flash Analysis software is used to perform arc flash analysis for systems from 0.208 kV to 15 kV in accordance with IEEE 1584-2018 “IEEE Guide for Performing Arc Flash Hazard Calculations.” The software determines the incident energy and arc flash boundary values required to comply with NEC equipment labeling. It also provides hazard evaluation for shock protection and arc flash PPE according to NFPA 70E 2018.

    DC Arc Flash

    DC Arc Flash

    This module calculates the incident energy for different types of DC applications.

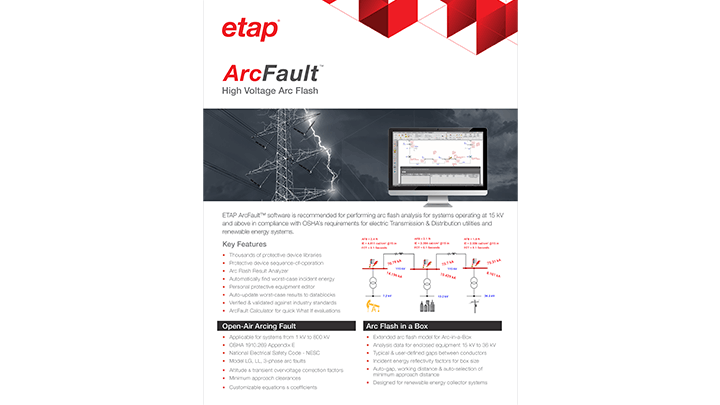

    ETAP ArcFault™ - High Voltage Arc Flash Analysis

    ETAP ArcFault™ - High Voltage Arc Flash Analysis

    ETAP ArcFault™ software is recommended for performing Arc Flash Analysis on electrical utilities and renewable power systems operating at 15 kV and above.

    High Voltage Arc Flash Assessment and Applications

    High Voltage Arc Flash Assessment and Applications

    Two-part technical article published by the InterNational Electrical Testing Association (NETA) in NetaWorld, co-authored by Albert Marroquin, VP of V&V at ETAP.
