Transformer Sizing & Tap Optimization

ETAP transformer analysis program enables users to apply the operating values from load flow calculations or use total connected load as represented in the one-line diagrams.

Transformer Inrush

Evaluate transformer inrush current and its impact on the system

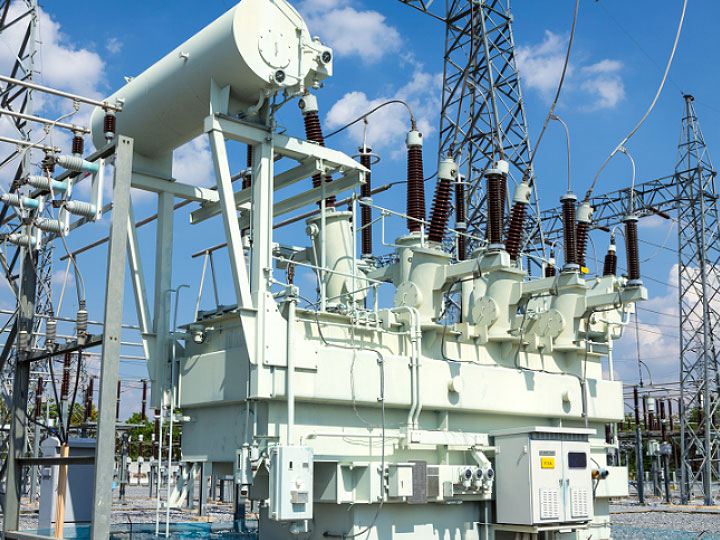

Transformer Sizing

Transformer sizing based on altitude, temperature, insulation, number of phases & cooling stage
Transformer Tap Optimization

Determine the optimal transformer turns ratio to deliver maximum reactive power output

Key Features

ETAP transformer assessment tool is a state-of-the-art computer program for all power transformer-related studies. With its vast application coverage going from transformer tap optimization analysis to transformer sizing analysis, ETAP transformer analysis module is a powerful and an extremely versatile tool for all users in power systems.
