Renewable System Analysis

Network Analysis for Renewable Systems

Integrated AC & DC Systems

Set of analytical tools that allow for analysis, prediction, design and planning of renewable energy system behavior utilizing an intelligent one-line diagram and the flexibility of a multi-dimensional database.

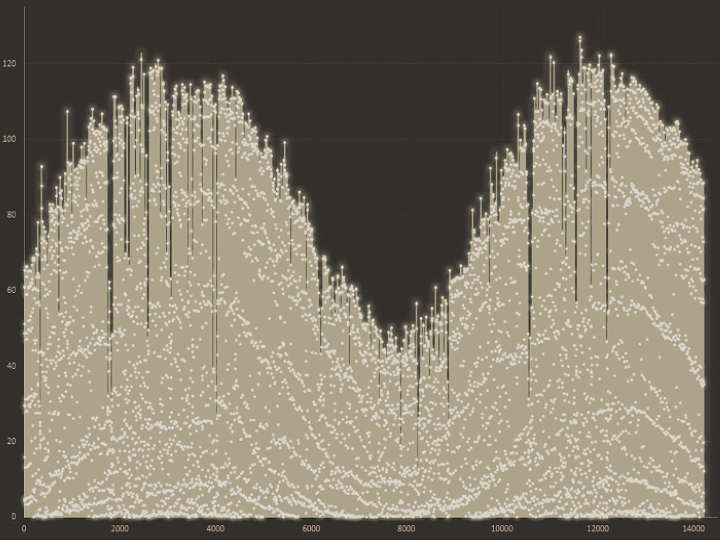

Time Series Unified Power Flow

Time Series Unsymmetrical Unified AC & DC Power Flow
Short Circuit

The Short Circuit module determines fault currents and automatically compares them against manufacturer ratings.
ArcSafety™ - AC Arc Flash

Arc Flash software identifies and analyzes high risk arc flash areas in AC systems.
DC Arc Flash

DC Arc Flash module calculates the incident energy for direct current networks.
DC Short Circuit

Evaluate system fault conditions and assess protective device ratings for direct current systems
Harmonics

Simulate harmonic current and voltage sources, reduce nuisance trips, and report distortion limit violations.

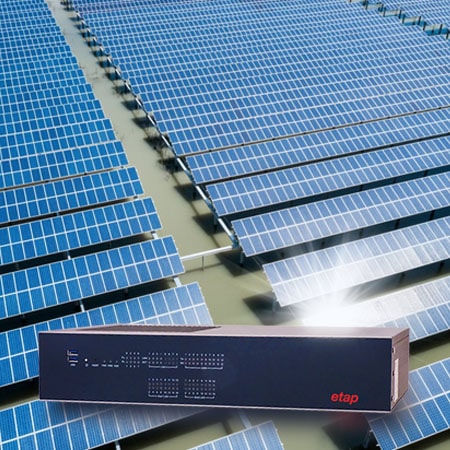

Situationally Intelligent Power Plant Controller

The ePPC interfaces with the renewable inverters, battery energy storage systems, power conditioning devices & capacitor banks.
