아크플래시 분석 프로그램은 완벽하게 통합된 모듈로 최악의 아크플래시 에너지 레벨 사례를 결정하기 위해 다양한 시나리오를 분석합니다. 아크플래시 계산 소프트웨어 모듈은 전문적 보고서 및 고품질 아크플래시 안전 라벨을 제작합니다.
아크플래시 분석 모듈은 포괄적인 단상 및 3상 아크플래시 평가 계산뿐 아니라 매우 유용한 아크플래시 분석기 툴을 통해 아크플래시 분석에서 얻은 결과를 요약합니다.
DC 아크플래시는 직류 애플리케이션을 위한 별도의 모듈도 제공합니다.
This webinar will provide an overview of the fundamental differences between the IEEE 1584-2018 and existing arc flash methods. To better understand how the 2018 model combines empirical and arc flash physical behavior, the presentation will cover background and insights into the model development validation.
ETAP Arc Flash Analysis automatically estimates the Incident Energy released in the event of an arc fault and determines the required Flash Protection Boundary.
ETAP makes the creation of multiple configurations and operating modes for the system being modeled easy once the model has been created and then the available incident energy for each bus in each configuration can be determined and compared. The worst case incident energy and corresponding personal protective equipment (PPE) can be put on arc flash labels to be applied to the equipment.
ETAP 7.1 now includes the ability to customize and link arc flash electrical safety labels using Microsoft Word. This webinar explains step-by-step instructions.
Compliance requirements of NFPA 70E - 2015 Edition using ETAP 14 Arc Flash Analysis: Compliance with the Latest Standards and Guidelines, New AC and DC Arc Flash Modes, Study Case, and Interface Arc Flash Analyzer Enhancement, New Sequence-of-Operation for IEC Arc Flash, New Enclosure Isolation for Main & Load Protective Devices, New Correction Factors for Arc Current and Incident Energy.

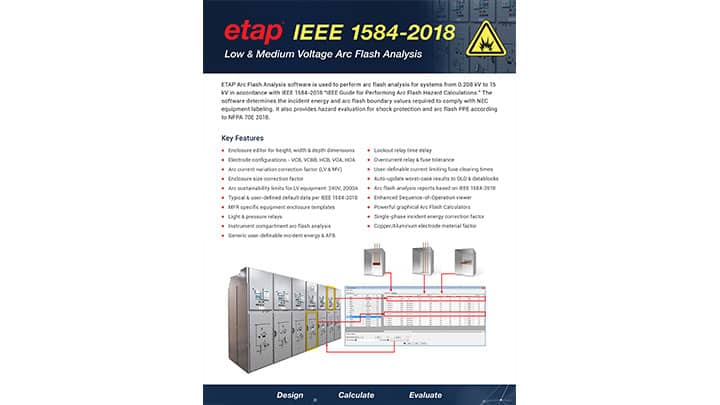

ETAP Arc Flash Analysis software is used to perform arc flash analysis for systems from 0.208 kV to 15 kV in accordance with IEEE 1584-2018 “IEEE Guide for Performing Arc Flash Hazard Calculations.” The software determines the incident energy and arc flash boundary values required to comply with NEC equipment labeling. It also provides hazard evaluation for shock protection and arc flash PPE according to NFPA 70E 2018.

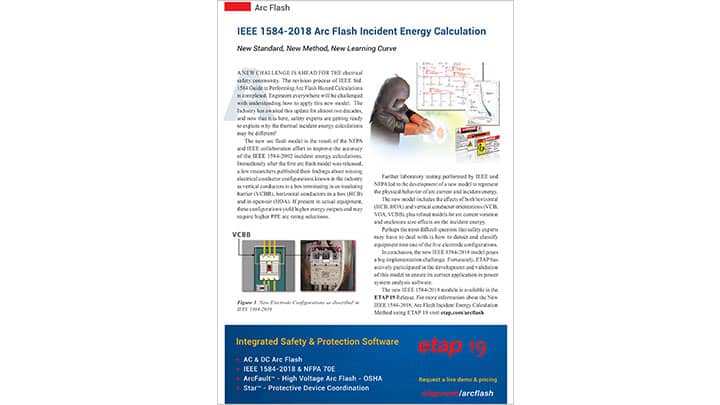

New Standard, New Method, New Learning Curve
Introduction to ETAP Arc Flash Hazard Analysis module with instructions on how to setup arc flash calculations.
This article presents different methods for assessing the hazards of high- and low-voltage 1-phase equipment.
One common question being asked is how to determine the hazard level associated with 1-Phase (1-P) Arc Flash (AF) incidents. There is very little information about this type of circuit in the available guidelines such as CSA Z462-08, NFPA 70E 2009 & IEEE 1584 2002.
If the right risk level is not properly determined, we run the risk of over-protecting or under-protecting personnel that are working on this type of electrical system. The objective of this article is to present different methods for assessing the hazards of high and low voltage 1-P equipment, and to justify the results taking into consideration the behavior of arc faults at different voltage levels.

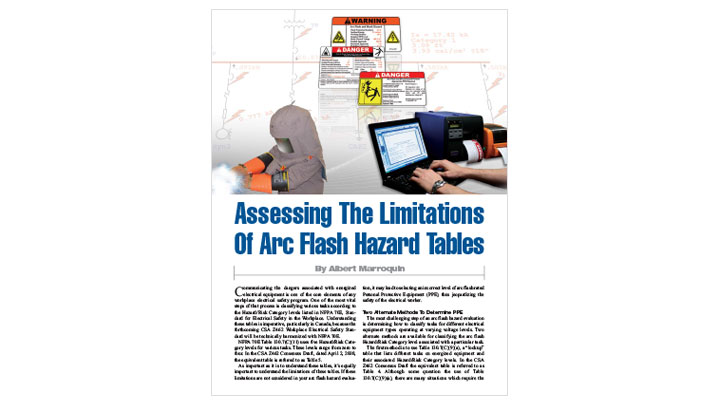

It's important to understand the Hazard/Risk Category levels listed in NFPA 70E, but just as important to understand the limitations of these tables.

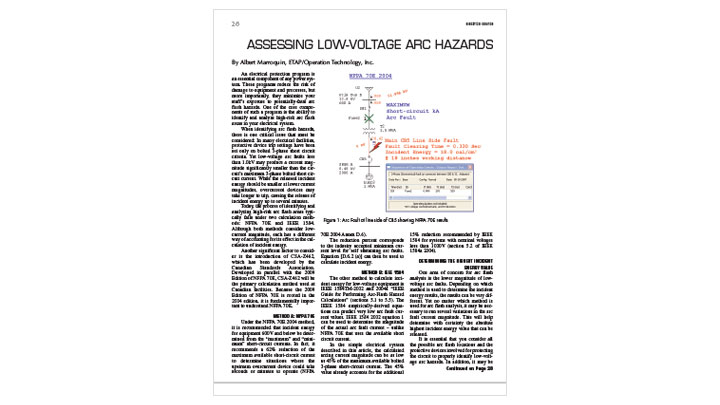

This article explains how arc flash software is essential to identifying and analyzing high-risk arc flash areas, so you can help keep your electrical staff safer.
