Unbalanced Network Short Circuit Analysis
Device Duty Calculation & Evaluation for Multi-Phase, Single-Phase, AC & DC Systems
Aperçu
ETAP Unbalanced Network Short Circuit is the most comprehensive unbalanced network short circuit analysis software to study shunt and simultaneous faults for distribution, transmission, and traction networks.
- 3-phase unbalanced and 1-phase networks
- Run and evaluate all fault types in one study
- Shunt and simultaneous faults
- Fault current as function of time with AC & DC decay
- Simulate protective device responses to fault currents and configuration changes
.bmp?sfvrsn=d774677c_2 "Distribution Short Circuit Software for Unbalanced Networks")
Key Features
- Unbalanced Network Short Circuit Standards
- ANSI C37.10 for AC systems
- IEC 60909 for AC systems
- IEC 61660 for DC systems
- GOST Russian Std. for AC systems
- Unbalanced / balanced faults on unsymmetrical systems
- Shunt fault – 3-phase, 3-phase - ground
- Line - ground – Phase A or Phase B or Phase C
- Line - line - ground
- Open circuit - Phase A or Phase B or Phase C
- Conventional short circuit calculations
- Pre-fault system loading consideration

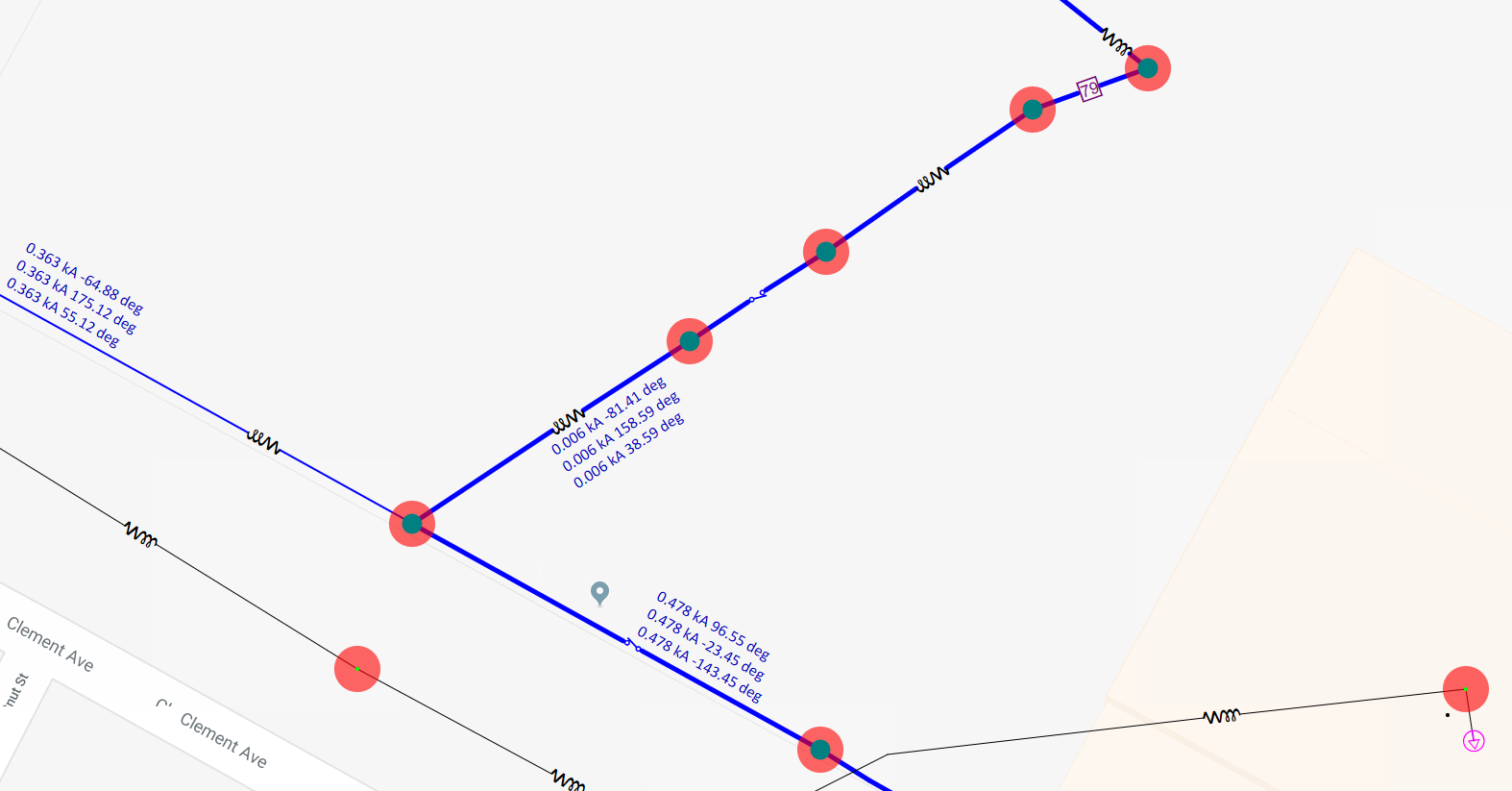

- Result visualization on OLV and GIS view
- Generator circuit breaker duty evaluation per IEC 62271 / ANSI
