Microgrid Energy Management Solution

Edge control solution for microgrids & distributed energy resources

Mission critical operations need a reliable power system that operates by supplementing the utility grid in parallel mode or autonomous island mode in a clean, optimized, low cost and resilient manner.

ETAP μGrid™ (Microgrid) includes an advanced electrical digital twin model combined with intelligent automation and system protection to optimize and control simple or complex microgrid electric and thermal systems.


End-to-End Solution

ETAP Microgrid Control offers an integrated model-driven solution to design, simulate, optimize, test, and control microgrids with inherent capability to fine-tune the logic for maximum system resiliency and energy efficiency.

Microgrid Design & Validation


ETAP Microgrid software allows for design, modeling, analysis, islanding detection, optimization and control of microgrids.

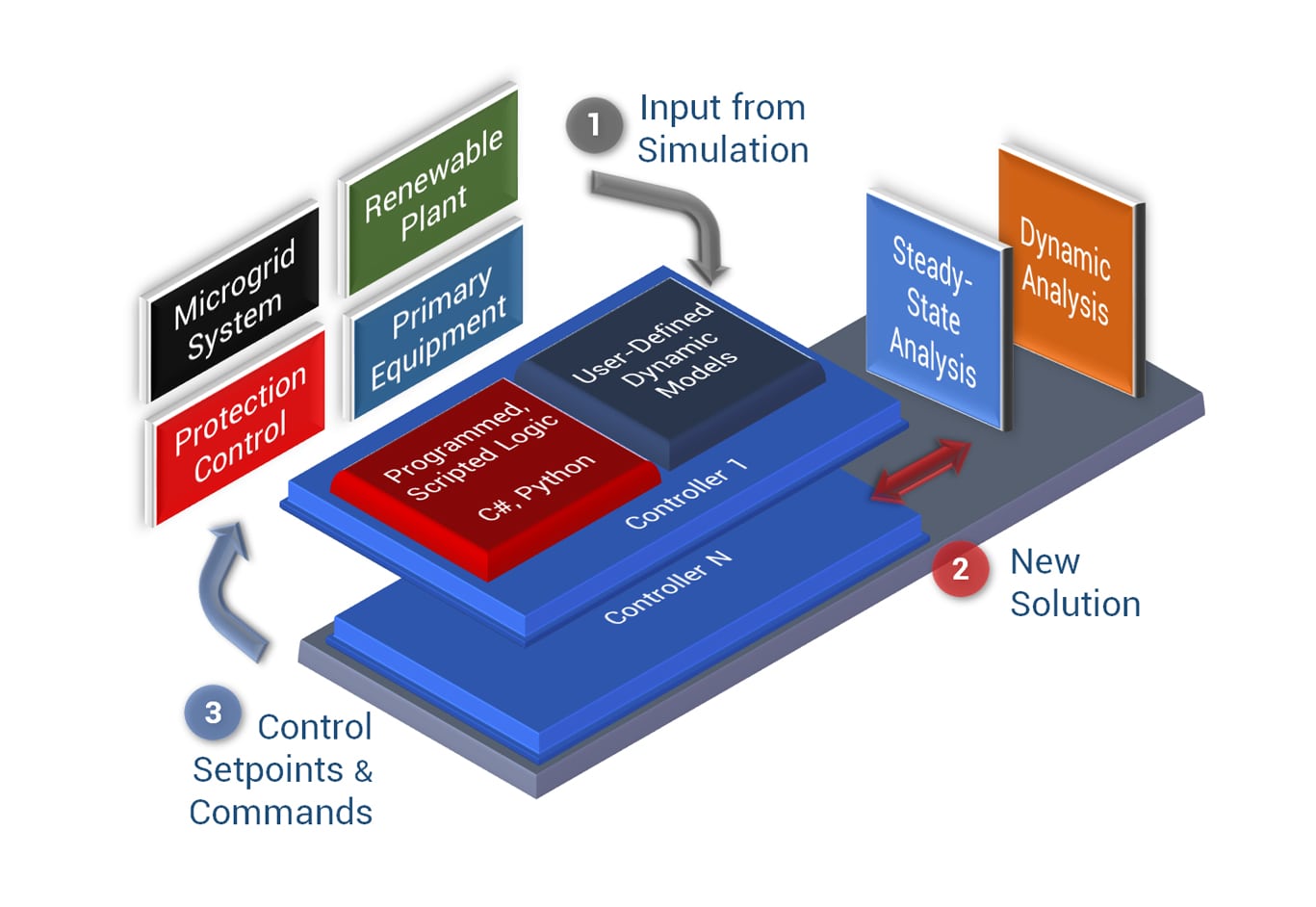

ETAP Microgrid software includes a set of fundamental modeling tools, built-in analysis modules, and engineering device libraries that allow you to create, configure, customize, and manage your system model. Microgrid controller response can be verified and validated prior to connecting it into the field.

Microgrid Design and Validation

  • Detailed modeling, simulation and optimization
  • Virtual microgrid controller element modeling and control logics
  • Develop new control functions
  • Enhance and tune existing functions
  • Test and validate logics
  • Modeling of photovoltaic, energy storage devices, diesel generators, wind turbines, gas & steam generators, fuel cells, etc.
  • Simulate microgrid systems on timescales of electromagnetic transients, dynamic & steady-state behavior
  • 3-phase and 1-phase AC & DC network one-line diagrams
  • Verified & Validated Engineering Libraries based on equipment manufacturers’ published data
  • Predictive analysis and forecasting of loads and generation

Microgrid Controller


ETAP offers a fully configurable model-driven microgrid controller that provides considerable flexibility to achieve desired control functionalities. Once the controller logic is deployed to the ETAP Microgrid controller hardware software-in-the-loop (SIL) or hardware-in-the-loop (HIL), testing can be utilized where the physical controller interacts with the model of the microgrid and associated devices.

ETAP Microgrid Controller hardware is designed for environments while delivering optimal performance, fast response, and security.

<1 MW
Portable Microgrid Controller

Portable Microgrid Controller

  • Core i5-7300U
  • 8 GB RAM
  • 4x LAN
  • 4x COM
  • 1x Mini-P

< 20 MW
Mountable Microgrid Controller

Moutnable Microgrid Controller

  • Core i7 1.7GHz
  • 16 GB RAM
  • 8x LAN
  • 10x COM
  • 2x Slot

> 20 MW
Mountable Microgrid Controller

Moutnable Microgrid Controller

  • Xeon E3 2 GHz
  • 32 GB RAM
  • 8x LAN
  • 10x COM
  • 2x Slot
  • Rugged design
  • Native DNP3, Modbus, IEC 61850 communication protocols
  • Update controller logics without decommissioning
  • Supports Linux and Windows
  • Local and system controllers
  • Collect data from field-deployed microgrid controllers
  • Get diagnostics and apply software updates remotely
  • Integrated alarm, warning & acknowledgement
  • IP40 ingress protection

Engineering Services


ETAP offers engineering services in the entire process of design, analysis, monitoring and programming of control functions based on user requirements.

Engineering Services

  • Microgrid planning and expert engineering services
  • Feasibility study & system Analysis
  • Microgrid design, logic & optimization
  • Derive controller settings
  • Renewable & battery sizing
  • Cost saving analysis
  • Controller evaluation
  • Microgrid deployment & integration
  • Microgrid Solution as a Service (MSaaS) with remote-hosting

ETAP Microgrid Energy Management System is an-all-inclusive holistic software and hardware platform that provides complete system automation for safe and reliable operation.

The solution integrates with onsite Cogeneration, Solar PV, Energy Storage, Absorption Chillers, and more to manage load demand and cost-effective generation in real-time.


Meeting Design & Operational Challenges

Optimal Microgrid Design & Validation

  • Optimization techniques to evaluate design feasibility
  • Configure and compare a variety of scenarios to analyze technical performance
  • Validate microgrid system design and logic incorporating historical, present, or forecasted conditions


Operational Resiliency

  • Safeguard against power interruptions
  • Proactively adapt to system changes, unexpected events and disturbances


Decarbonization & Decentralization

  • Demand for effective energy sustainability and carbon footprint reduction
  • Effective management and optimization of distributed generation and load assets


Lower the Cost of Engineering, Operation & Maintenance

  • Reduce the total cost of ownership (TCO) by reducing the cost of electricity (COE).
  • Manage and decrease the Operations & Maintenance cost
  • Ensuring that supply and demand are met and optimized at all times within the agreed and empowered electricity prices and programs.

Microgrid Controller Benefits


Use ETAP Digital Twin to design, analyze, and validate, and configure the microgrid system, objectives, and logics. Validate controller logic with ETAP software-in-the-loop (SIL) or hardware-in-the-loop (HIL) systems then simply transfer the model to ETAP Microgrid Controller to deploy.

After deployment, the controllers can control live microgrids via their communication systems and can be fine-tuned and re-deployed instantly without any decommissioning. Use the controller hardware to view, adjust parameters, set up function, update logics via easy to use HMIs that consolidates all necessary information.

Intelligent real-time situational awareness and forecast-driven predictive simulations to reliably and accurately determine short-term loading and generation, especially from inconsistent sources such as wind and solar.

ETAP Microgrid automatically identifies and adapts to system changes using proven control and optimization algorithms to handle unexpected events. Proactive generation dispatch and switching control logics regulate voltage and frequency for system preservation during and after an islanded condition.

ETAP’s Advanced Microgrid Management Control considers and responds to multiple contingencies simultaneously to preserve critical loads.

Evaluate energy-reducing strategies such as moving on-peak usage to off-peak periods or shifting from one rate schedule to another to improve the bottom line. Fast load curtailment and remedial actions based on load and generation changes and priorities.

  • Fully integrated system with ETAP SCADA, Load Shedding, DERMS- support all com protocols
  • Scalable, flexible, configurable, secure, redundant software / hardware controller platform
  • Optional advanced customization for special applications and functions to meet any customer’s needs
  • Expert services in microgird system design, automation, and operation
Key Features

Features & Capabilities

  • Model-driven microgrid solution supported with full spectrum AC & DC analysis
  • Detailed modeling, simulation and optimization of microgrid system in study mode
  • Intuitive graphical and scripting tools to develop and test control logics and user-defined functions
  • Virtualized functions implementation for flexible deployment across multi-platforms
  • Modeling of renewable sources and distributed resources, such as Solar PV, Wind, DGs, and Energy Storage System (ESS)
  • Built-in logics for dispatch, islanding and load forecasting
  • Load and generation forecasting
  • Automated predictive “what-if” simulation validates controller actions in real-time mode
  • Utilize archived data for system analysis
  • Integrated SCADA, ADMS, DERMS and Business Intelligence Dashboards
  • Incorporate predictive simulations as part of control decisions to achieve maximum system performance
  • Rugged microgrid controller hardware
  • Easy to set up and communicate with other microgrid assets
  • Tools to interact with real-time simulators for Software-in-the-Loop (SIL) and Hardware-in-the-Loop (HIL) testing


Microgrid Controller Applications

  • Dispatch energy resources
  • Facilitate transition to islanded mode and back
  • Facilitate microgrid black start
  • Supervisory control during islanded mode
  • Facilitate seamless integration of DERs
  • Improve the stability of system by supporting the frequency and voltage of the grid at PCC
  • Provide grid management functions: Real and Reactive power support
  • Load vs. Generation capacity balancing
  • Fast Load Shedding, Automatic Generation Control and Demand Management



Intelligent Microgrid Management - Part 1

49:25 Webinar

ETAP's μGrid™ solution combines model-driven microgrid controller hardware with advanced power management software to unlock system resiliency, optimized cost, security, and sustainability for microgrid systems. Part I of the webinar series focuses on microgrid design and software-based validation.



Intelligent Microgrid Management - Part 2

26:45 Webinar

This webinar examines the microgrid controller’s architecture, hardware deployment workflow, and a range of advanced monitoring tools. Learn how ETAP Digital Twin platform enables the design and deployment of ETAP's Intelligent μGrid™ solution.



Stability Studies for Power Systems with DERs

1:10:24 Webinar

In this webinar, learn how ETAP's Transient Stability module addresses needs and challenges of stability studies for power systems with DERs.

Webinar about how ETAP software manages Battery Energy Storage


Battery Energy Storage Systems

59:58 Webinar

This webinar demonstrated how the integration of battery energy storage systems improves system reliability and performance, offers renewable smoothing, and can increase profit margins of renewable farm owners.



Operator Training Simulator - Advanced Simulation Requirements & Solutions Benefits & Case Study

 Case Studies

The implementation of a Microgrid involve several stages, in which the engineer has to deal with the interaction of different processes and dynamics, taking into account the different modes, topologies and scenarios that the system could possibly have. This is the case of an ongoing project for an important Grid operator in Colombia, in which PTI S.A and OTI are working together to deliver a comprehensive Monitoring and Control system for an entire Microgrid, comprised of different energy resources as Diesel, Solar, Batteries and a connection to the Public Grid. Project stages involve Planning, Design, Validation, In site Deployment and Testings, and for that purposes, Etap PS/RT and Opal RT solutions will be used, on a Digital Twin Platform environment.



Unit Capability Validation, an Analytical Approach for MOD-25 Compliance

 Case Studies

A power plant's reactive power capability using a synchronous generator is the amount of reactive power that the unit can produce under design constraints and system operating limitations. Unit capability can determine the reactive power support to improve the Bulk Electric System's voltage profile (BES) if needed. Therefore, it is crucial to define the reactive power limits to evaluate the voltage support available under normal, abnormal and emergency operations with the unit's safe functioning. The published generator thermal capability curves define the limits required for the generator's safe operation. These curves are produced by the generator manufacturer based solely on the generator design's thermal limitations. But practically, when employed in a power plant, the available reactive capability differs from the published equipment curves due to the plant specific design and operating constraints.



Harmonic Mitigation Project in Steel Plant

 Case Studies

This presentation aims to explain the necessary stages to comply with the technical criteria established in the Mexican grid code. The case presented is a steel manufacturing plant with intensive use of induction furnaces and a THD that exceeded the Grid Code's limits. This presentation will highlight the compliance, diagnosis, engineering (studies of electrical power systems using ETAP), and equipment designed to comply with the technical criteria and mitigation. ETAP was used to size a filter to mitigate harmonics and improve the power factor for 34.5 kV transformers to comply with the Mexican grid code.



Remedial Action Scheme for Integrated G-T-D System

 Case Studies

This presentation highlights the use of modern technology to uncover opportunities available through power system studies, to improve the reliability and the efficient operation of a vertically integrated power system. Due to experiences of system shutdowns stemming from drastic frequency decline associated with the loss of relatively larger generating units, Fortis TCI embarked on exploring opportunities to curtail these events to improve system response. This was achieved through detailed modeling and validation of system parameters with event data gathered from previous events.

A carefully implemented Remedial Action Schemes (RAS) is currently being explored to provide cost-saving benefits to significantly improving frequency response, without the need for larger spinning reserve and likewise minimize investment costs for Battery Energy Storage System (BESS).
