鉄道輸送システム

Railways

鉄道牽引システムの解析と運用のためのソリューション
ETAP列車電力シミュレーション - eTraX™ ソフトウェアには、ACおよびDC鉄道インフラストラクチャの設計、解析、管理のための検証済みのユーザーフレンドリーで柔軟なソフトウェア ツールが含まれています。

主な利点

  • データ集中化

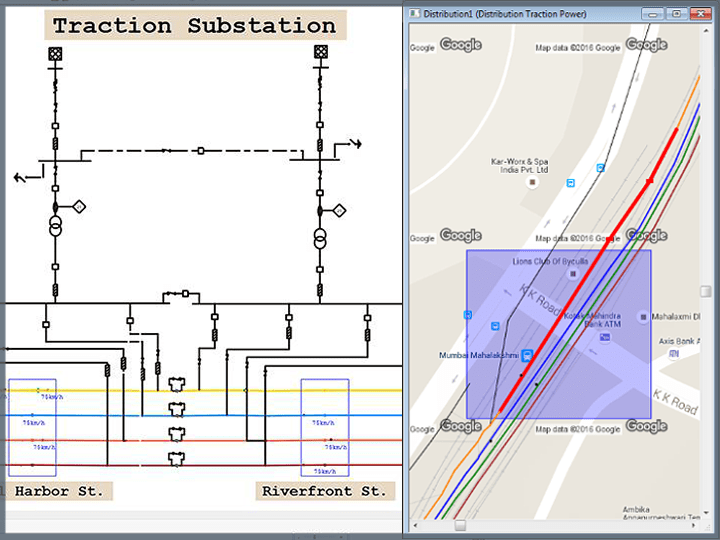

    - 地理空間、回路図、計画、保護、SCADA運用
  • 統合設計ソリューション
    - 送電システムと牽引電力システムを一緒にモデル化して解析
    - ACおよびDC電力ネットワークの同時解析
  • 包括的な設計と分析
    - 列車性能計算
    - 電力潮流/電圧降下
    - 障害分析
    - 高調波など
  • 検証済みおよび検証済み(V&V)
    - システム測定および世界標準にベンチマーク
    - ETAP原子力品質保証プログラムに基づいて設計および開発
  • 統合型トラクションeSCADA
    - リアルタイム予測シミュレーションで推測を排除
    - 根本原因と結果の分析のためのイベントシーケンスの再生
    - 提案された時刻表に基づく負荷予測
    - 電力フローに基づくスイッチプラン検証によるスイッチオーダー管理

機能

eTraXは、設計者、計画者、所有者/運営者によって、DC地下鉄、AC郊外鉄道、高速鉄道、貨物/鉱業、都市間、ライトレール (LRT)、自動旅客輸送車 (APM) などの設計と運用に利用されています。

eTraXは、コンサルティング会社、設計機関、鉄道車両メーカー、プロジェクト開発者、所有者/運営者によって以下の目的で利用されています。

  • システムの動作と操作を概念的に設計し、研究する
  • 列車の機械エネルギーとそれに対応する電力需要のマルチフィジックスシミュレーションを単一の統合ソリューションで実行します。
  • 列車サービスの電力とエネルギー消費量を決定し、牽引電源の容量を設計および分析します。
  • 最小運転間隔と運行時間計算を使用して列車数を安全に最適化します
  • 不測の事態(インフラの障害、遅延)をシミュレーションし、適切な緩和策を評価する
  • 鉄道車両の評価と比較
  • エネルギー貯蔵と回生ブレーキの効果
