Productos destacados
El diagrama unifilar eléctrico inteligente ETAP (iSLD) es una vista unilineal de múltiples capas del gemelo digital, que incluye funcionalidad avanzada y conocimiento de las características del dispositivo y el comportamiento del sistema. Es un plan activo y la base de su viaje hacia la transformación digital.
iSLD de ETAP es la interfaz de usuario definitiva para modelar, visualizar, colaborar y analizar redes eléctricas. Está diseñado para mostrar fácilmente resultados de análisis, información del sistema en tiempo real y datos estimados, para automatizar, validar y administrar sistemas de redes eléctricas de CA y CC. El diagrama unilineal inteligente visualiza datos en cualquier combinación de voltaje, fase, frecuencia, unidad de medición y estándar para cualquier aplicación e industria.
Enlaces rápidos
Diagrama unifilar de la red de transmisión
Diagrama unifilar de la red de transmisión y distribución

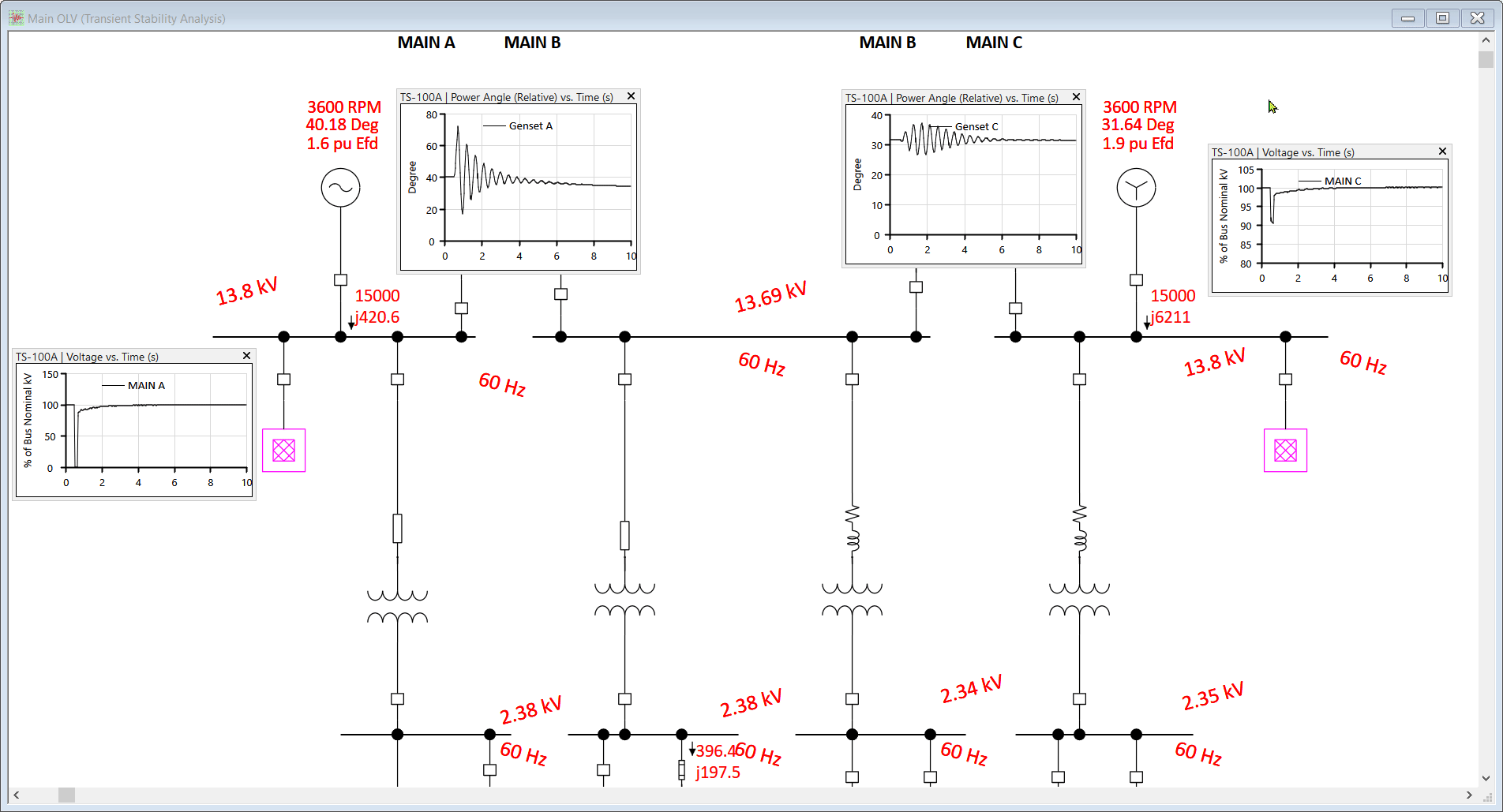

Gráficos en vivo con diagrama unifilar de red

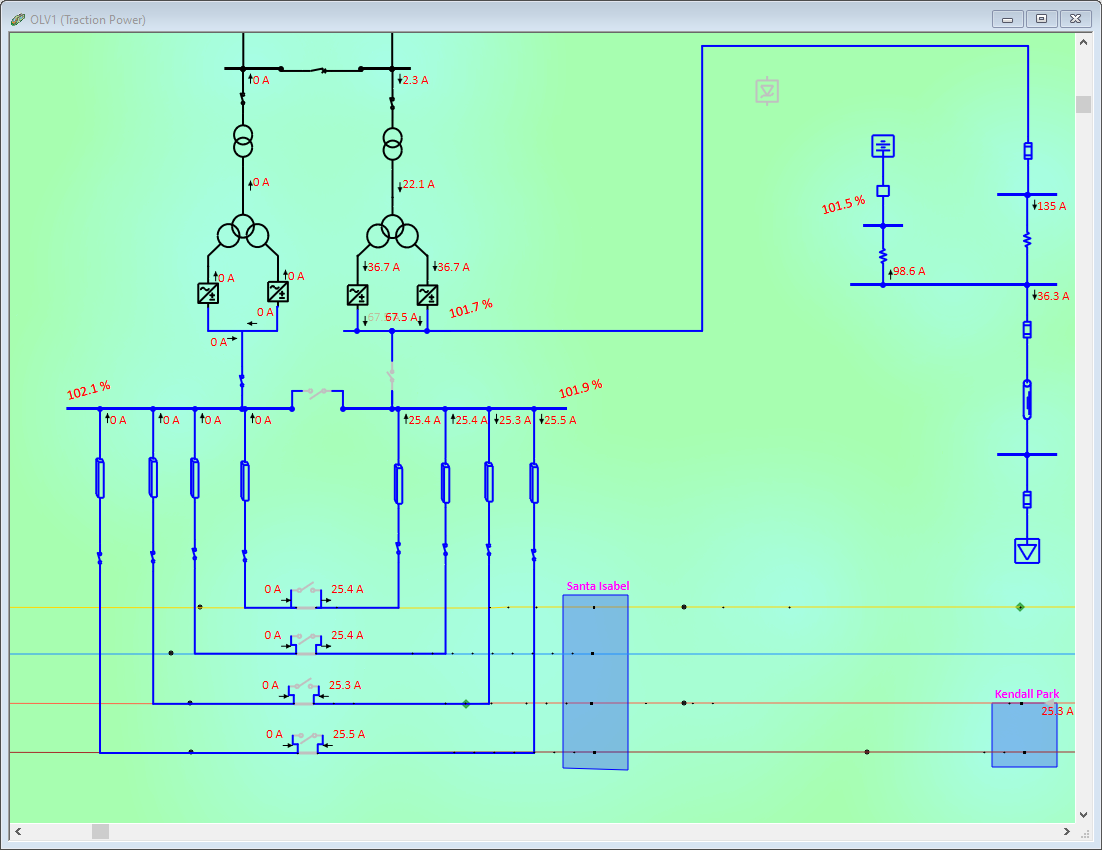

Diagrama unifilar del sistema de tracción ferroviaria – eTraX

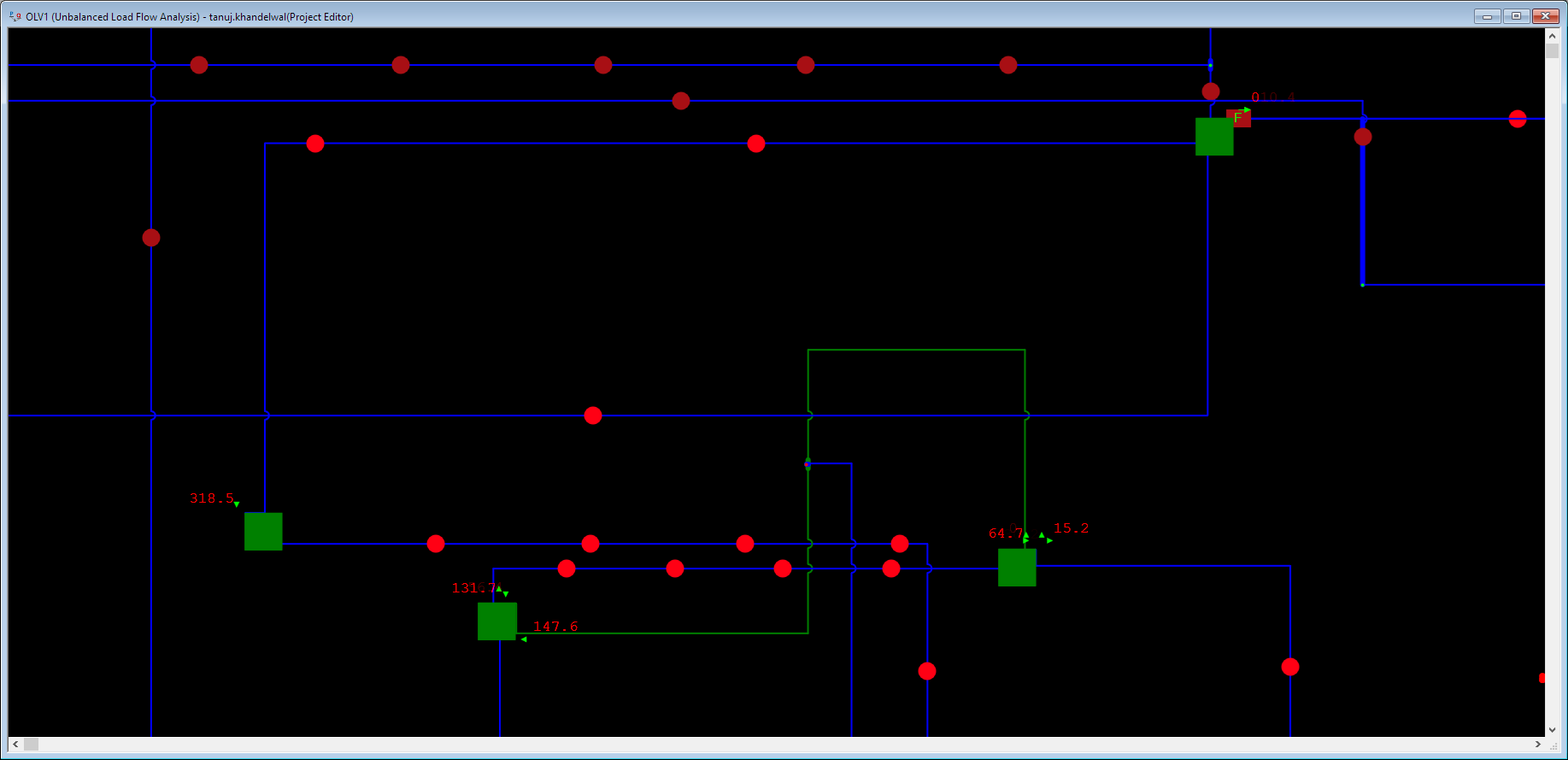

Diagrama unifilar de red de distribución con vistas de red

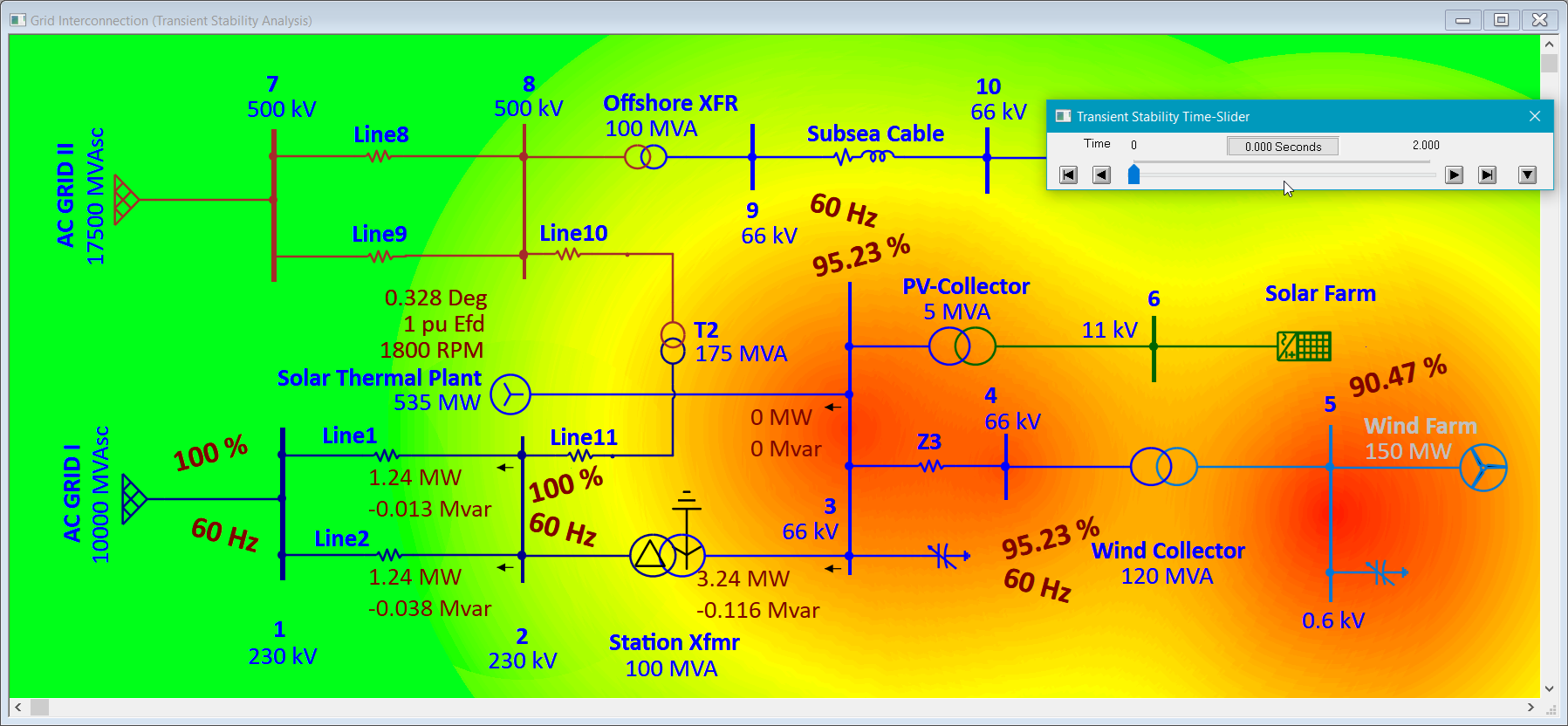

Diagrama unifilar de energía renovable
Diagrama unifilar del sistema de generación
Diagrama unifilar de interconexión de subestaciones
El diagrama unifilar eléctrico de ETAP se integra con todas las vistas del sistema ETAP aprovechando la base del gemelo digital multidimensional de ETAP, lo que permite una funcionalidad entre dominios. El diagrama unifilar eléctrico de ETAP se conecta a una capa de datos común, unificando la visualización en todo el ecosistema digital de ETAP y permitiendo una gestión más accesible y eficiente de los cambios.
ETAP NetPM ofrece una potente solución que ahorra tiempo para la transferencia de información a lo largo de todo el ciclo de vida de la red eléctrica.™ Administre el diagrama unifilar eléctrico de ETAP en una única ubicación en la nube, lo que admite la operación en tiempo real y asincrónica con la gestión de equipos mediante NetPM™
Aumente la accesibilidad a los proyectos ETAP para la recopilación y verificación de datos con la versión actualizada de etapAPP™, una aplicación para tabletas diseñada para ingenieros de campo.
Unificado con base de datos multidimensional
Integrado con vistas Digital-Twin
Diseño de acceso y operación de datos y controladores
La conectividad con reglas y diseño automático ahorra tiempo y elimina las conjeturas
Mantener entregables multigráficos en una sola base de datos
Visualice resultados múltiples, bloques de datos y gráficos en vivo
Ejecutar estudios hipotéticos utilizando datos de diseño, operativos en tiempo real o históricos.
Asistentes de estudio para ejecutar escenarios de diseño y operación para las condiciones pasadas, presentes y futuras del sistema.
Colaboración en tiempo real en la misma línea única
Visualizar e imprimir datos de ingeniería
Recopile datos y sincronice datos de una sola línea desde el campo hasta su oficina
Convierte automáticamente datos de una sola línea desde software heredado y formatos estándar
Su navegador no soporta la etiqueta de vídeo.

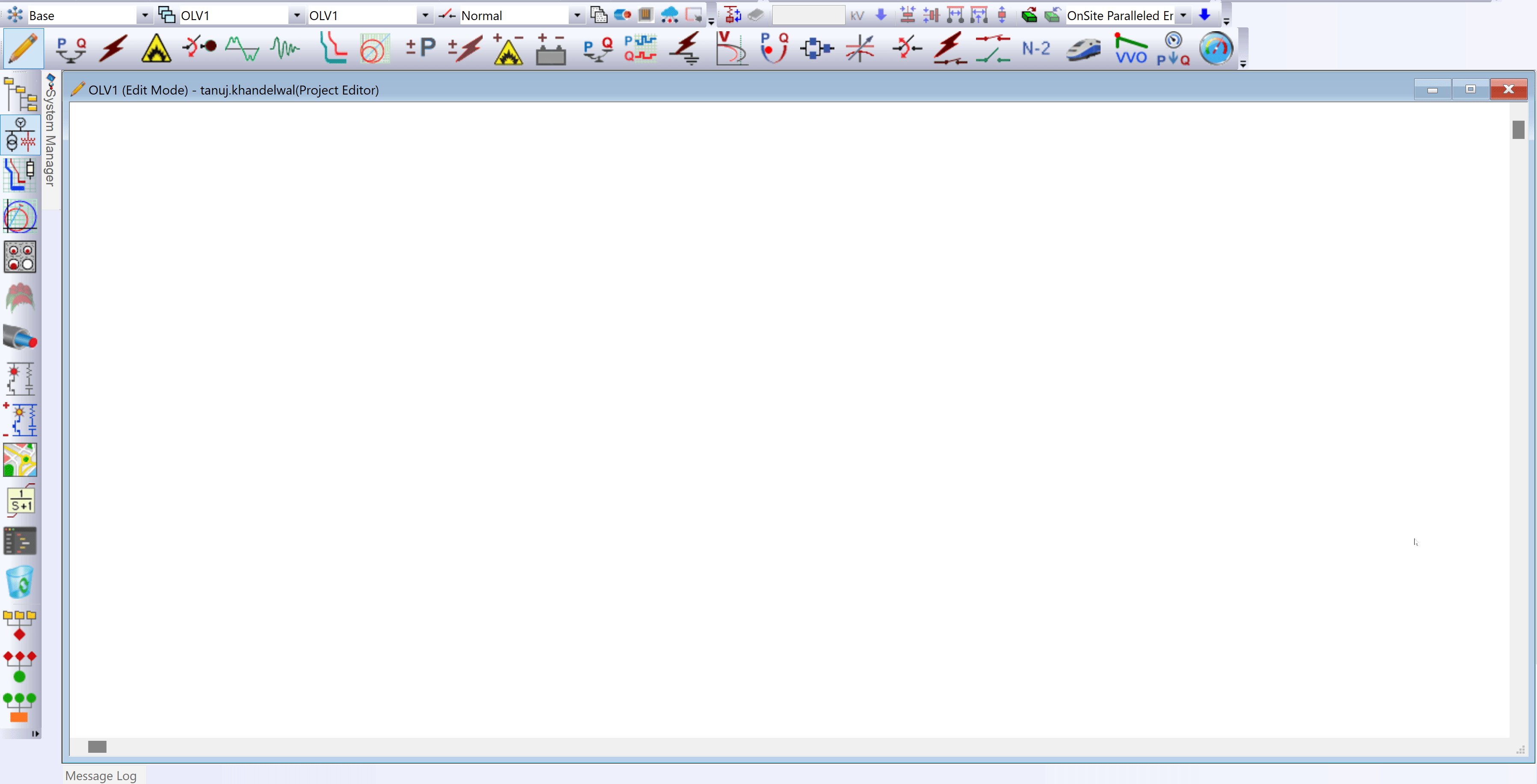

El diagrama unifilar inteligente lleva las tareas diarias de diseño y modelado de sistemas a un nuevo nivel de velocidad, facilidad y precisión. Con el diagrama unifilar de ETAP, los usuarios pueden gestionar todos los aspectos de su gemelo digital eléctrico durante el diseño y las operaciones.

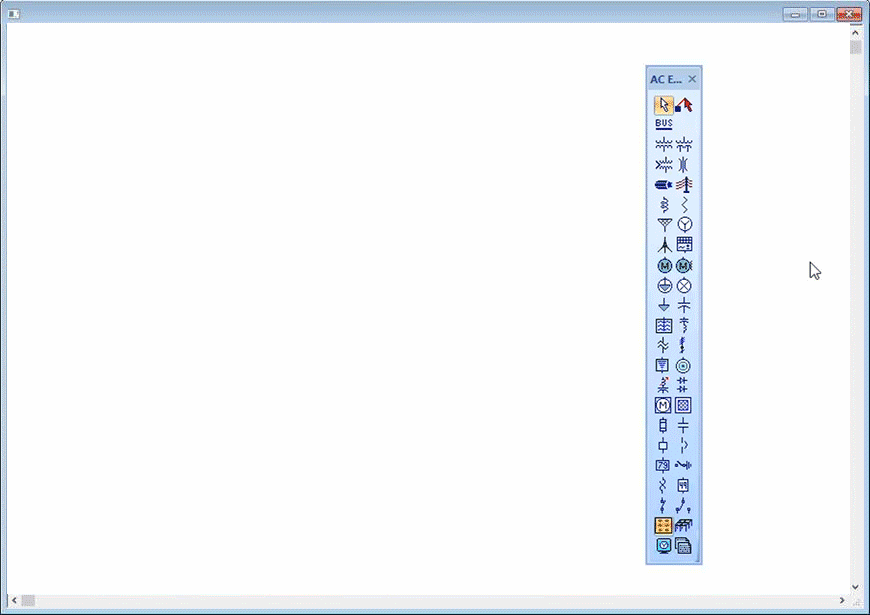

Auto-Build es una herramienta automatizada y potente para crear y editar el diagrama unifilar. El diseño basado en reglas de Auto-Build puede reducir significativamente el tiempo dedicado a crear un diagrama unilineal.

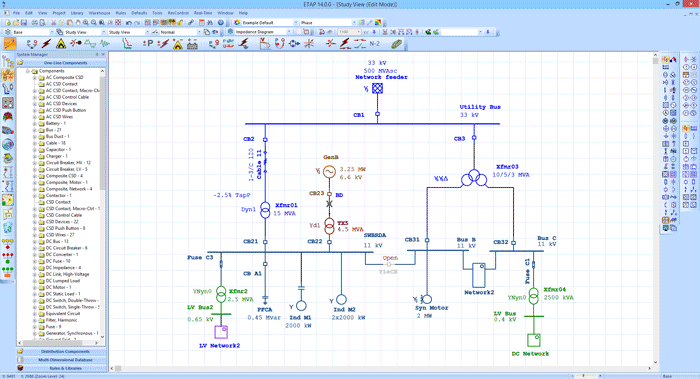

Establezca temas ilimitados para diagramas unifilares individuales o múltiples. Los temas pueden ser preestablecidos o configurables por el usuario, lo que permite la codificación por colores según las propiedades de ingeniería y las conexiones de los elementos.

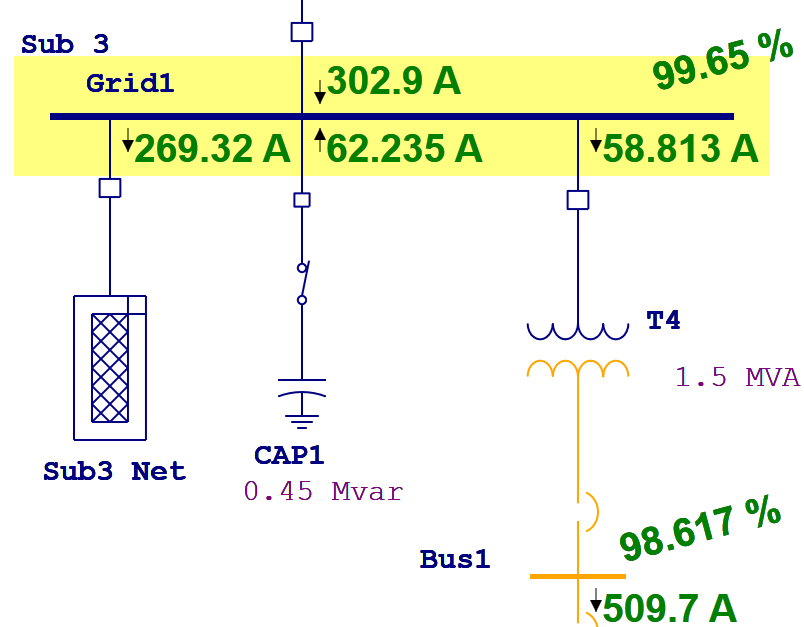

Formato de datos inteligente que puede mostrarse u ocultarse según:
Las redes compuestas permiten a los usuarios modelar y dividir gráficamente la red en vistas multianidadas, todo en un solo proyecto. Los motores compuestos combinan centros de control de motores (MCC), cargas, motores y dispositivos de protección y los representan como un solo elemento. Estas diferentes vistas proporcionan una apariencia más organizada y sencilla. Las redes compuestas se pueden anidar con subredes ilimitadas, lo que permite tener múltiples capas en un proyecto.

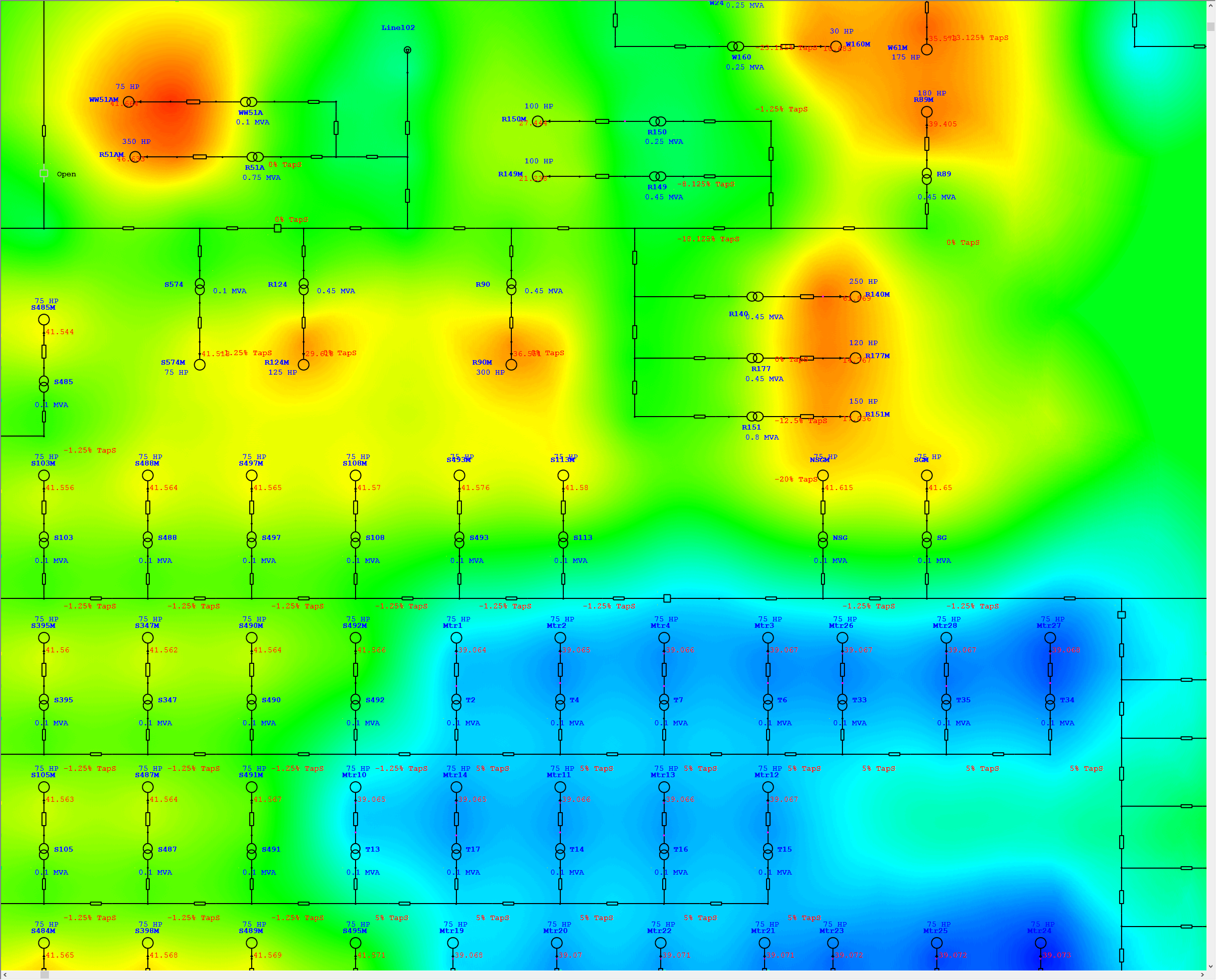

La funcionalidad de contorno de color permite al usuario aplicar un mapa de colores preestablecido o configurable por el usuario al diagrama unifilar. Estos mapas están codificados por colores según el voltaje o la magnitud del flujo de energía y proporcionan una imagen instantánea de las áreas normales y anormales del sistema eléctrico o geoespacial, especialmente para redes extensas.

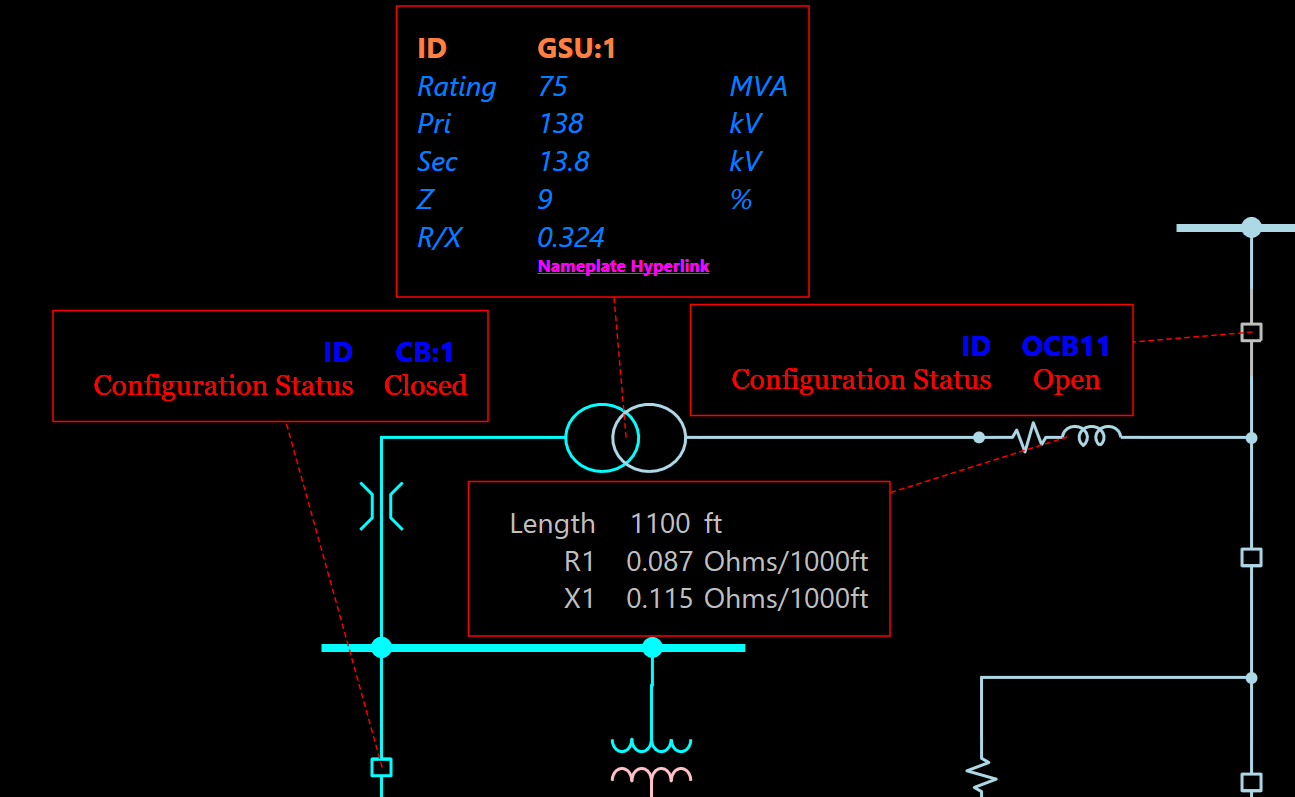

Vea información del dispositivo, como datos de entrada y resultados del estudio, en un solo bloque de datos directamente en el diagrama unifilar. Los bloques de datos pueden aplicarse desde plantillas o ser personalizables por el usuario. Utilice uno o más diagramas de una sola línea para mostrar, ocultar, organizar y formatear según la información específica. Amplíe las capacidades de análisis con Datablocks mostrando propiedades y resultados de diferentes estudios y dentro del mismo diagrama unifilar.

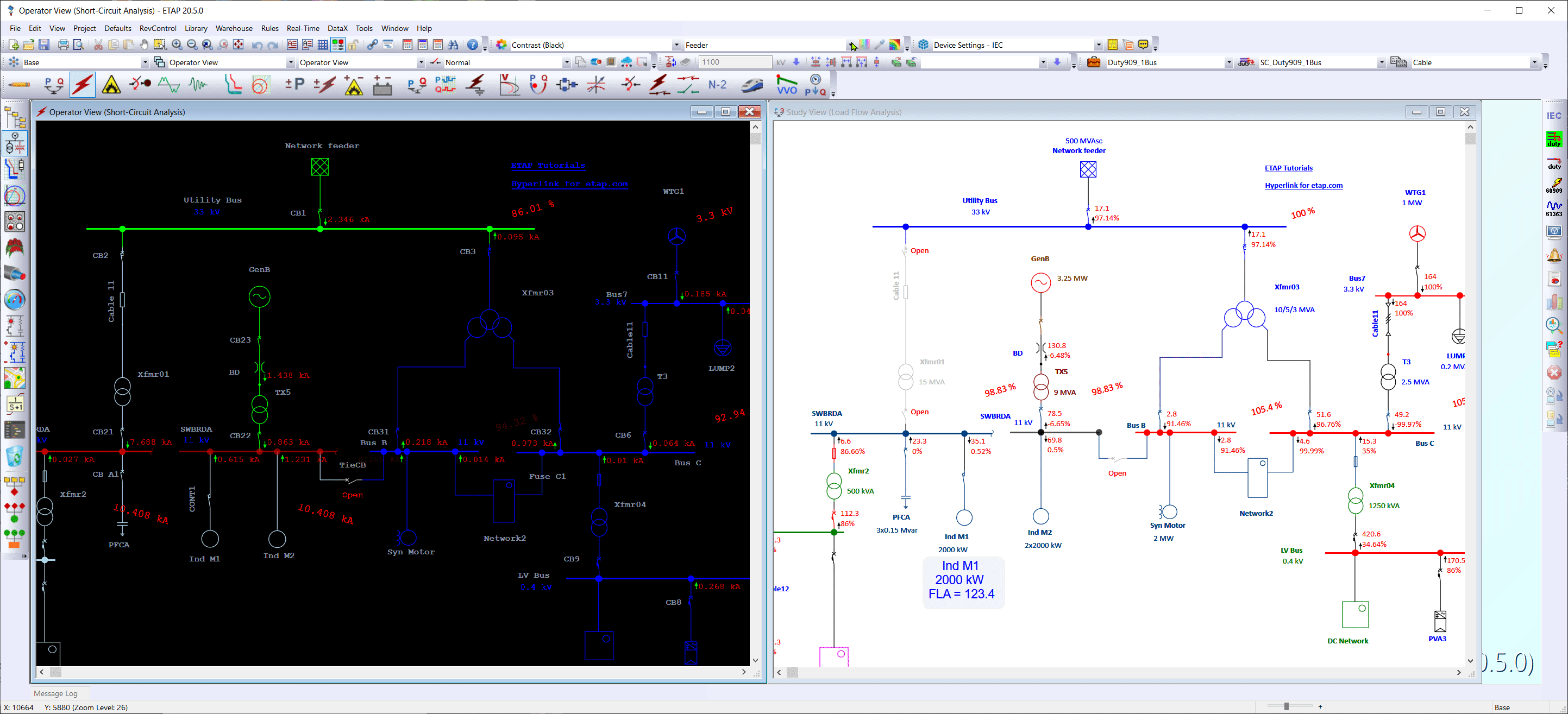

La verificación de continuidad dinámica muestra los dispositivos desenergizados como "semitransparentes" o de la manera preferida por el usuario. Utilice la continuidad del circuito como base para el procesamiento de la topología de la red y muestre gráficamente el efecto de los cambios de configuración del sistema realizados por el usuario o automáticamente a través del análisis.
Se pueden crear plantillas de diseño de equipos y de referencia basándose en modelos existentes y compartirlas con colegas de ingeniería dentro de su organización, lo que garantiza una generación de diseño eléctrico más rápida. Las plantillas de equipos pueden contener información de dimensionamiento y protección o simplemente conectividad básica del equipo. Utilice las plantillas existentes proporcionadas por ETAP o cree su propia biblioteca para garantizar una entrega más rápida de sus proyectos.
PlotView es una solución avanzada todo en uno para la creación de informes gráficos y análisis de datos. PlotView utiliza marcos avanzados y de alta velocidad para crear gráficos y diagramas. Con un diseño integral y una interfaz intuitiva, los usuarios pueden maximizar la productividad del trabajo y ahorrar tiempo al comparar, generar y mantener gráficos de alta calidad para sus estudios de sistemas de energía.
