ETAP 自动故障分析软件 (AFAS)

自动故障分析软件

概述

ETAP AFAS 利用 ETAP 的数字孪生技术,以其强大的模型驱动方法彻底改变了电气故障分析。专为实时和事件后分析而设计。

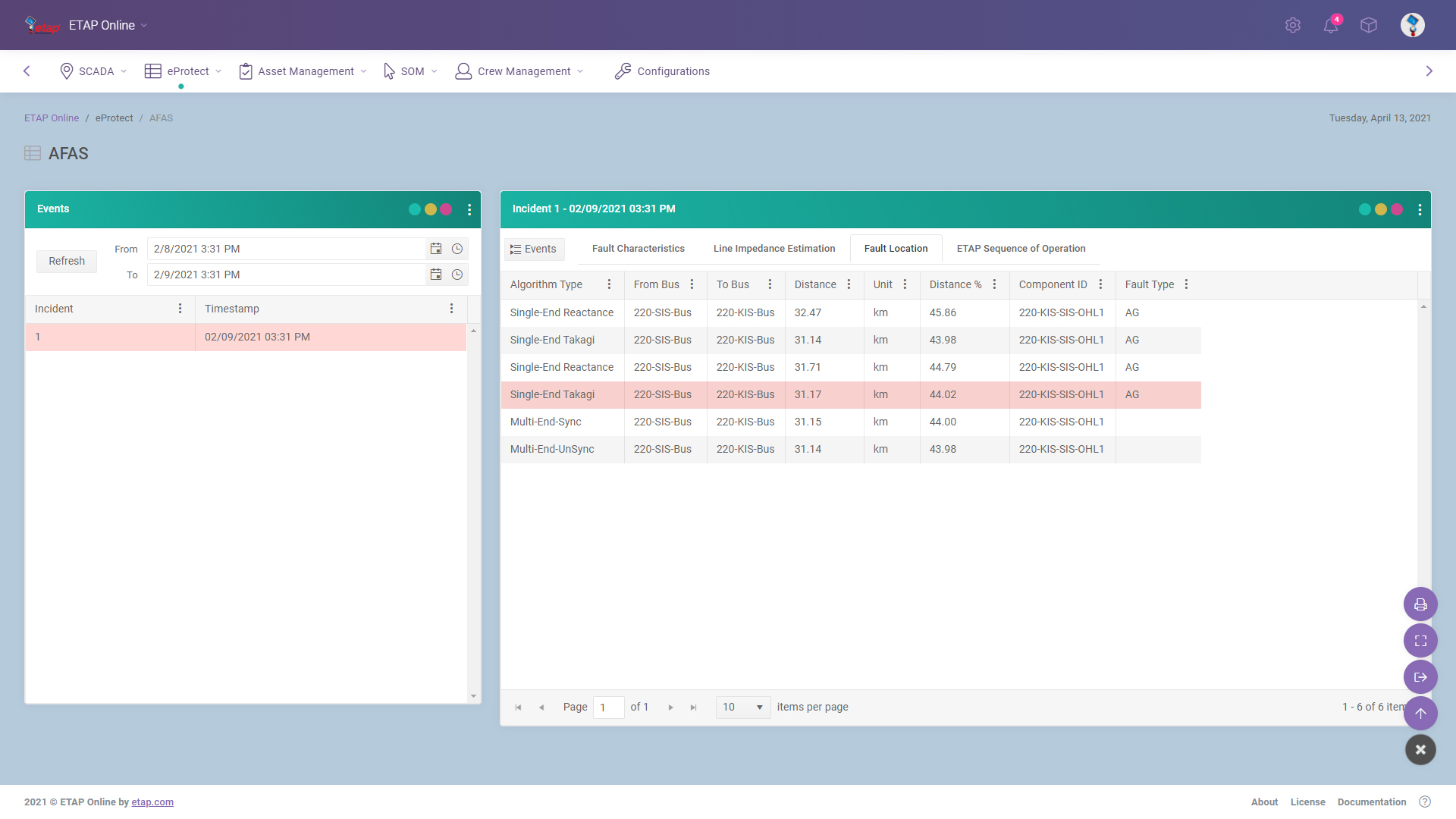

AFAS_CalculationResults

AFAS 主要功能

AFAS 通过提供以下功能来优化运营效率:

  • 自动化 COMTRADE 文件分析
    • 使用精确的时间对齐轻松地对相关事件进行分组。AFAS 在收到 COMTRADE 文件时会自动存档事件,确保高效的事件管理。
  • 高级故障检测与分析
    • 通过多种单端和双端算法识别故障类型、位置和严重程度。AFAS 提供有关故障幅度、阻抗和操作顺序的见解。
  • 集成故障分析与恢复
    • 与 ETAP FLISR 模块协同运行,为具有传输和配电组件的系统提供同时故障检测、分析和恢复策略。
  • 带有高端图形的波形查看器
    • 通过直观的界面可视化系统数据,支持同时进行 COMTRADE 文件分析。用户可以探索相量、RMS 和谐波值以及自定义信号定义。
  • 可定制的配置
    • 为用户提供根据其独特操作需求定制的灵活分析设置,以定制状态和干扰分类,包括负载流、故障、热、电压骤降、再加速等。
  • 模型验证和信号注入
    • 利用线路阻抗估计和信号注入(回放数据)来验证模型准确性,确保保护方案按预期运行。
  • 用于结果可视化的 eWeb 应用程序
    • AFAS 结果可通过 eWeb 界面访问,这是一个安全且用户友好的事件分析和可视化平台。eWeb 可通过内联网或安全网络访问,提供灵活性和增强的数据保护。

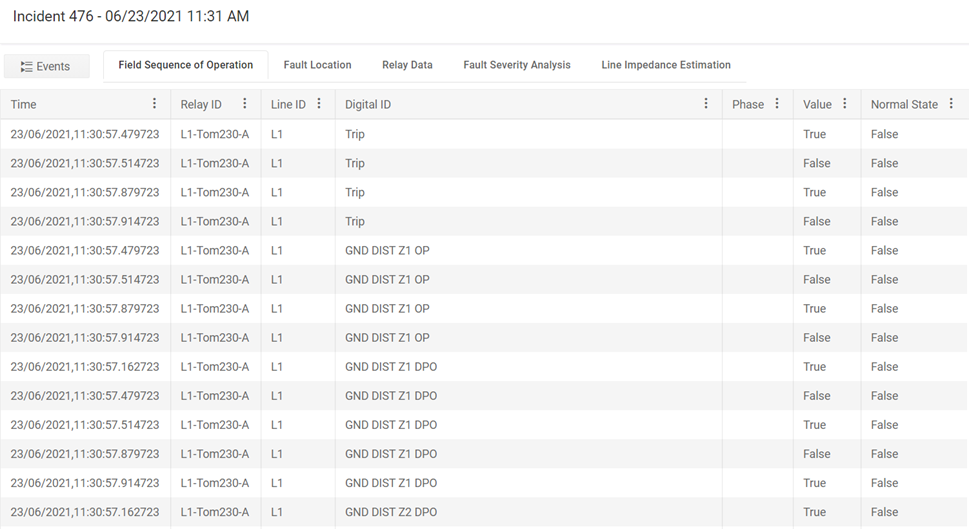

AFAS-Incident Report

AFAS 的优势和功能

  • 体验 AFAS 的无缝故障分析
    • 轻松浏览 AFAS 的强大功能。我们用户友好的界面可确保快速访问关键数据,帮助您自信地做出明智的决策。通过我们的交互式演示深入了解实际应用,展示 AFAS 在各个行业的适应性。AFAS 解决方案使用经过验证的分析引擎,通过确定故障类型、启动时间、跳闸时间、故障幅度、故障阻抗等来提供故障识别。信号注入功能允许用户将记录的数据回放至继电器模型中,以验证设计与实际继电器响应。电气数字孪生利用操作事件序列来验证系统响应,以确保在预期的响应时间内执行正确的保护方案。
  • 为每个行业量身定制的解决方案
    • 无论您从事公用事业、石油和天然气还是其他任何行业,AFAS 都能提供定制解决方案来满足您的特定需求。从配电系统中精确的故障严重程度分析到石油和天然气应用的定制联锁逻辑,我们的平台可以适应您的行业需求。AFAS 还包括用于管理基于逆变器的资源 (IBR) 中的故障响应的专用功能,确保传输、配电和工业应用的最佳性能和可靠性。
  • 与 FLISR 集成,实现无缝故障分析和恢复
    • AFAS 与 ETAP 的 FLISR 模块的集成可实现同时进行故障分析和网络恢复,从而提高运营效率。这种强大的组合使运营商能够利用 AFAS 的故障检测功能以及 FLISR 的最佳恢复策略,为具有传输和配电组件的系统提供全面的见解。这种双重功能可确保准确的故障定位、最佳的恢复计划和最小的服务中断。
  • 综合报告和可视化分析
    • AFAS 提供详细的报告和可视化效果,将复杂的数据转化为可操作的见解。我们增强的波形查看器支持高级分析,提供 RMS、相量和谐波评估工具,确保您拥有优化系统性能所需的清晰度。

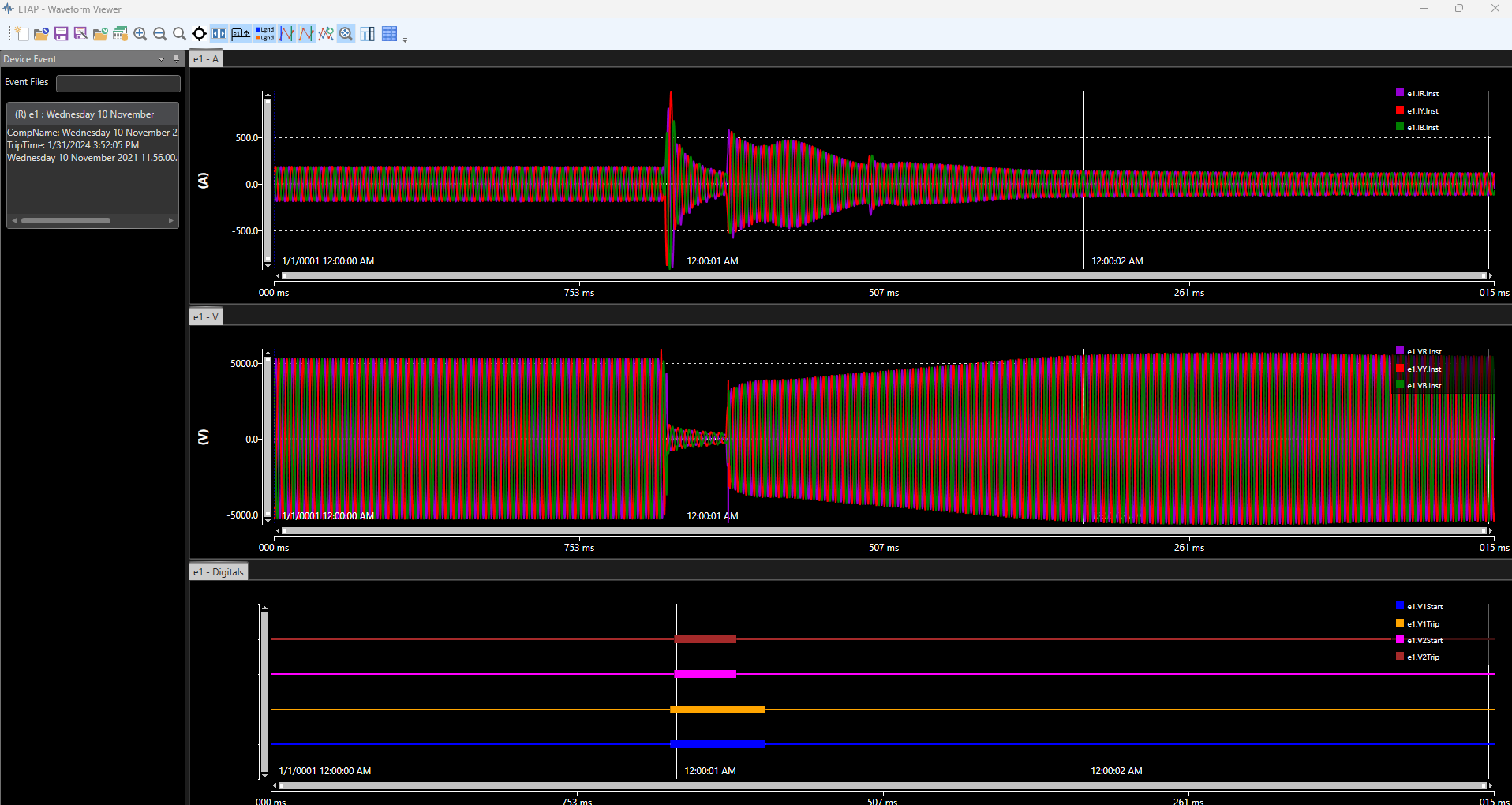

AFAS Wave Form

相关产品

探索附加组件和其他相关产品。

查看所有产品

相关解决方案

了解重点介绍该产品的解决方案。

查看所有解决方案

相关软件包

查找包含该产品作为其集合一部分的包装束。

查看所有套餐

相关行业

了解该产品在各个行业中的应用。

查看所有行业

相关系统

了解该产品在工程系统中的用途。

查看所有系统

评价

常见问题解答

    How to maximizing Efficiency in Industrial Operations with ETAP AFAS

    How to maximizing Efficiency in Industrial Operations with ETAP AFAS

    In Industrial applications, time is money. Quickly identifying faults and restoring assets is crucial to minimize downtime and costs. The ETAP AFAS (Advanced Fault Analysis Software) leverages disturbance records and telemetry data to locate faults and provide steps to restore assets while the fault is being addressed, increasing the chances of a quick resolution.

    Furthermore, ETAP AFAS seamlessly integrates several other ETAP software applications such as with the centralized relay management software (eProtect), eSCADA, and Intelligent Load Shedding (iLS) to provide a fully integrated solution for managing your industrial system. With this complete solution, engineers and operators can manage faults efficiently, minimize downtime, and maximize operational efficiency.

    Play 23:25
    Learn about ETAP Automated Fault Analysis Software

    Learn about ETAP Automated Fault Analysis Software

    ETAP Automated Fault Analysis System (AFAS) solution provides Real-Time and advanced analytics of electrical faults for your complex networks. Using the ETAP digital twin combined with disturbance records, engineers and operators have a clear forensic picture of any electrical fault in the network. Using proven ETAP analysis solvers, AFAS identifies faults, including fault type, start time, protection trip time, fault magnitudes, and fault distance/impedances. A novel signal injection features allow users to playback recorded data into the protection model to compare "as designed" vs. "as found" relay response. This comparison using ETAP electrical digital twin is used to validate system response per the configured protection scheme, and the sequence of operation was followed within expected time durations.

    Play 27:31
    Demystifying IBR Fault Response with Parametric Modeling & Analysis

    Demystifying IBR Fault Response with Parametric Modeling & Analysis

    The fault response characteristics of synchronous generators are inherently governed by their physical attributes and construction. In contrast, the fault response traits of Inverter-Based Resources (IBRs) are intricately tied to manufacturer-specific control schemes and settings. This intricacy adds complexity to accurately representing IBR behavior during fault conditions, particularly given the rapid advancements in inverter technology and the diverse control strategies employed by manufacturers.

    Play 51:34
