Traction One-Line Diagram is a user-friendly interface to interactively create and manage railway network models using schematic visualization.

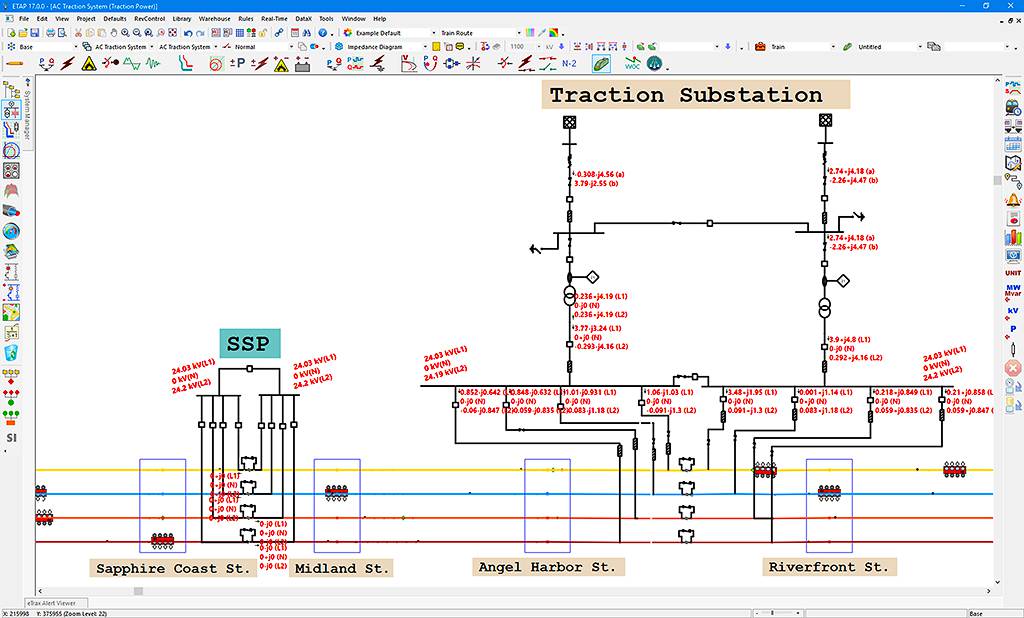

Traction one-line diagram is used to model, monitor, and manage electrical networks as well as execute simulation scenarios and analyze their results in a simple and intuitive manner. Other features include multi-level nesting of sub-systems, multi-color symbols, interfaces for management of switching devices, and a unique multi-dimensional database.
Utilize flexible heatmap based background coloring scheme to visualize key results when working with large networks. Theme and contouring allow for identification and easy understanding of key information at-a-glance.
Color coding may be based on phase, AC or DC, voltage level, area classification, grounding, LV earthing, train route, etc.

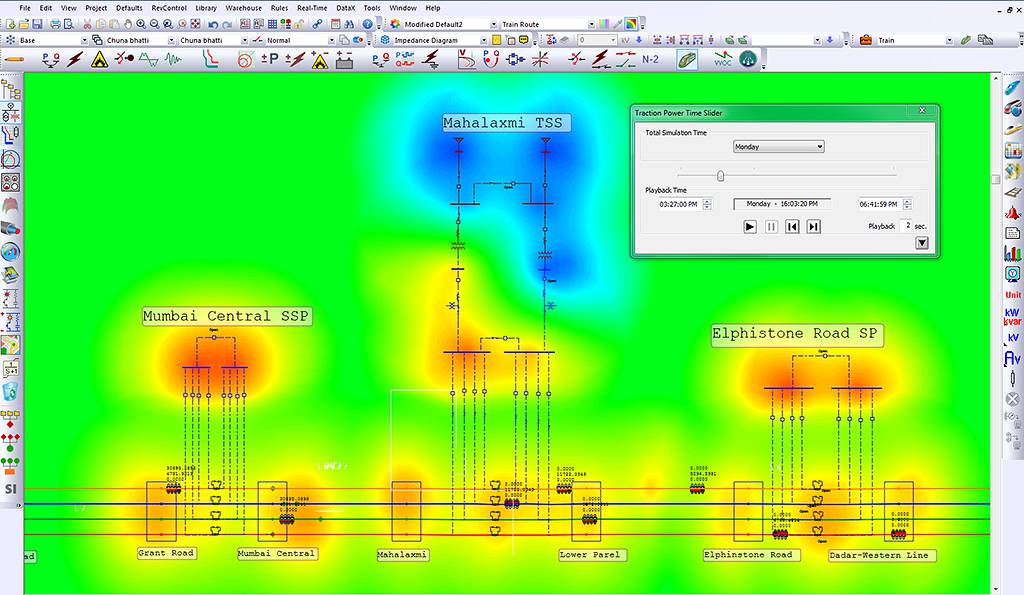

Color contouring via heat maps allows for a user-configurable heatmap behind the diagrams. These maps may be color coded based on voltage or power flow magnitude.
