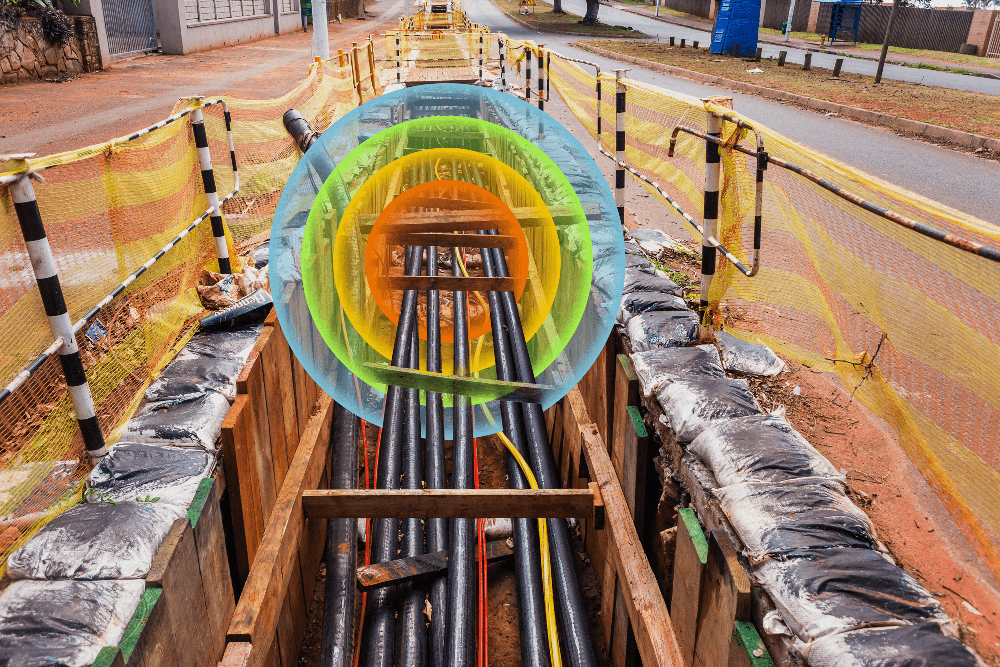

Electromagnetic Field Intensity Evaluation

Underground Conductor Electromagnetic Fields

Underground Conductor Electromagnetic Fields

Electromagnetic Field Intensity Evaluation
The magnetic field exposure analysis tool is integrated with the underground cable systems (UGS) analysis module, and it determines the worst-case magnetic fields produced by conductors in underground raceways. The tool handles various 3-phase conductor layouts including flat and trefoil as well 1/C and 3/C 1-phase cables, dc cables, etc. The tool uses balanced & unbalanced load-flow currents and angles to determine the location and surface-level height of the worst-case magnetic field because of all conductors in the raceway.



Key Features

  • Based on CIGRE JTF 36-0121
  • Exposure to Surface Magnetic Fields from Underground Conductor Installations
  • Evaluate Field Intensity Limits per IEEE C95.6-2002,
    ICNIRP – 2010 & ACGIH – 2002
  • Consider 3/C, 1/C, 3-P and 1-P AC & DC Conductor Currents
  • Automatic filtering of Ferromagnetic Conduits
  • User-Defined Permeability CF
  • Validated against actual site measured magnetic fields

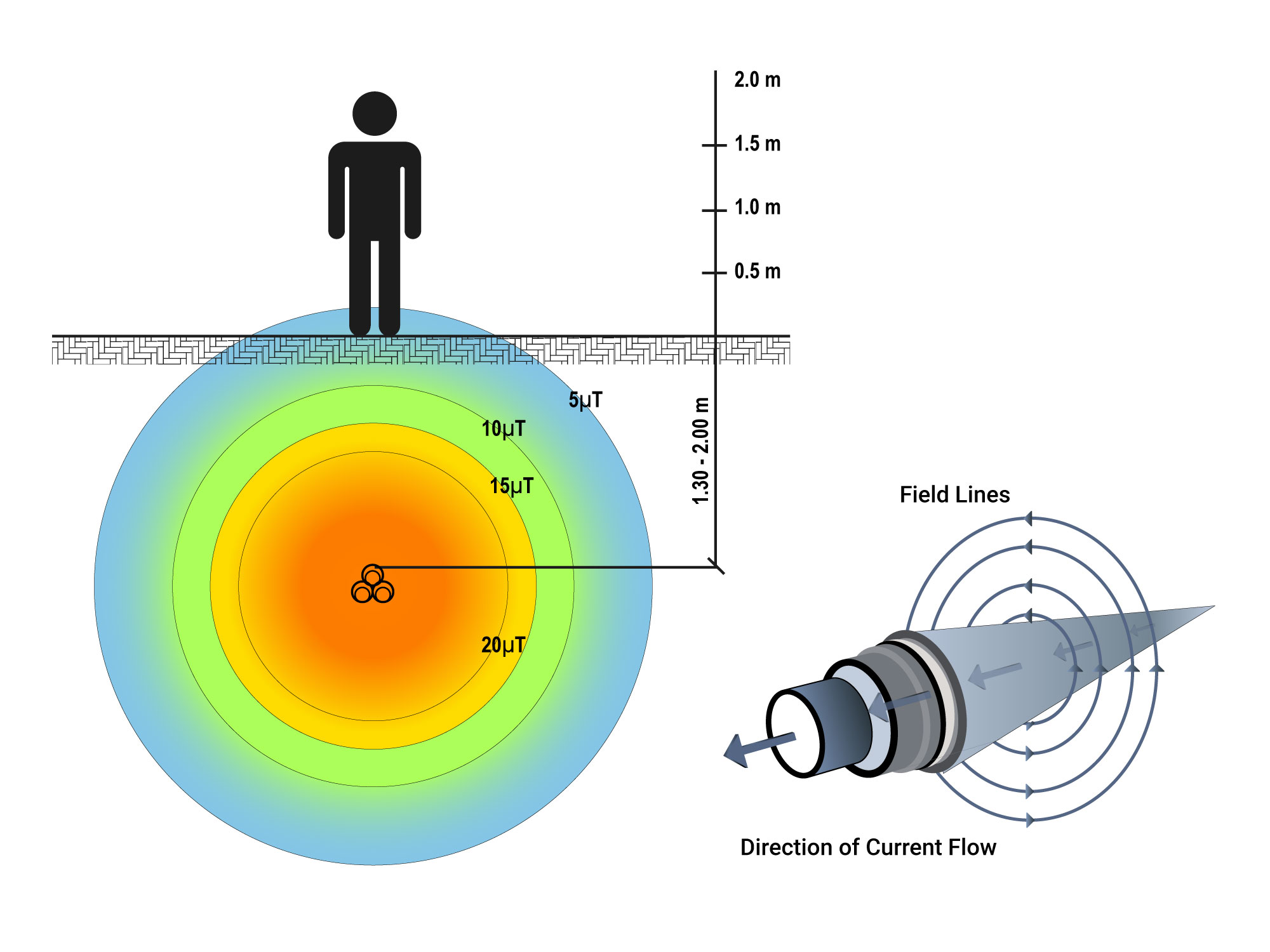

Magnetic field exposure analysis features

Capabilities

  • Single-Plot / Multi-Plot / Plot Range
  • Raceway Cable Location Depth View
  • Graphical data visualization - Tooltip results, Scale breaks, Zoom in/out
  • Export evaluation results to SQLite from any UGS Steady-State calculation
  • Auto-filter selected conductor currents
  • Consider Ferromagnetic Conduits
  • Include Effect of Sheath Currents

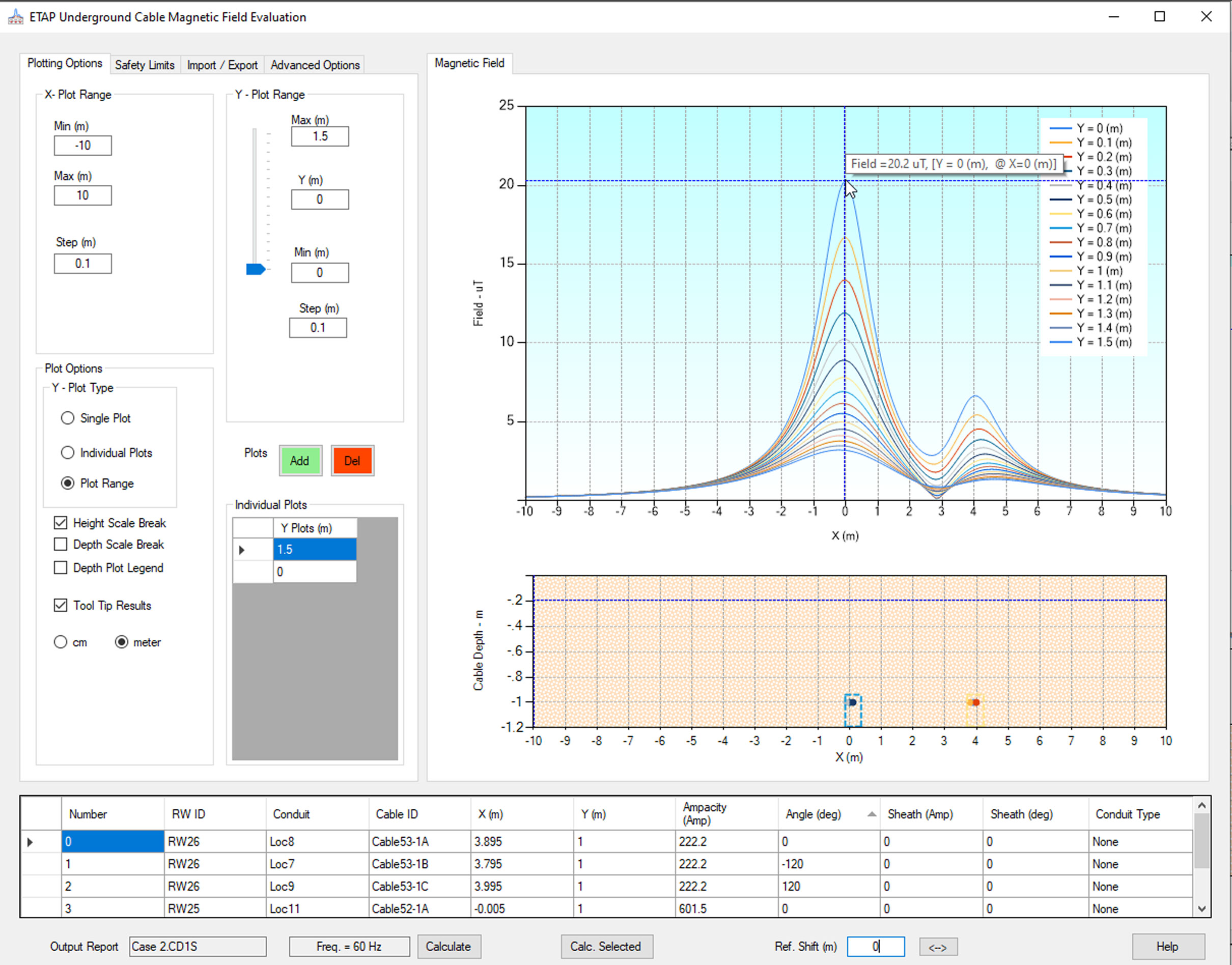

Underground Conductor Electromagnetic Fields

Benefits

  • Determine if your installation complies local magnetic field exposure limit regulations
  • Identify magnetic field intensity for individuals with medical conditions
  • Optimize cable layout and location to reduce magnetic field intensity problems
  • Provide safer work environment and reduce long-term exposure to magnetic fields for workers and the public

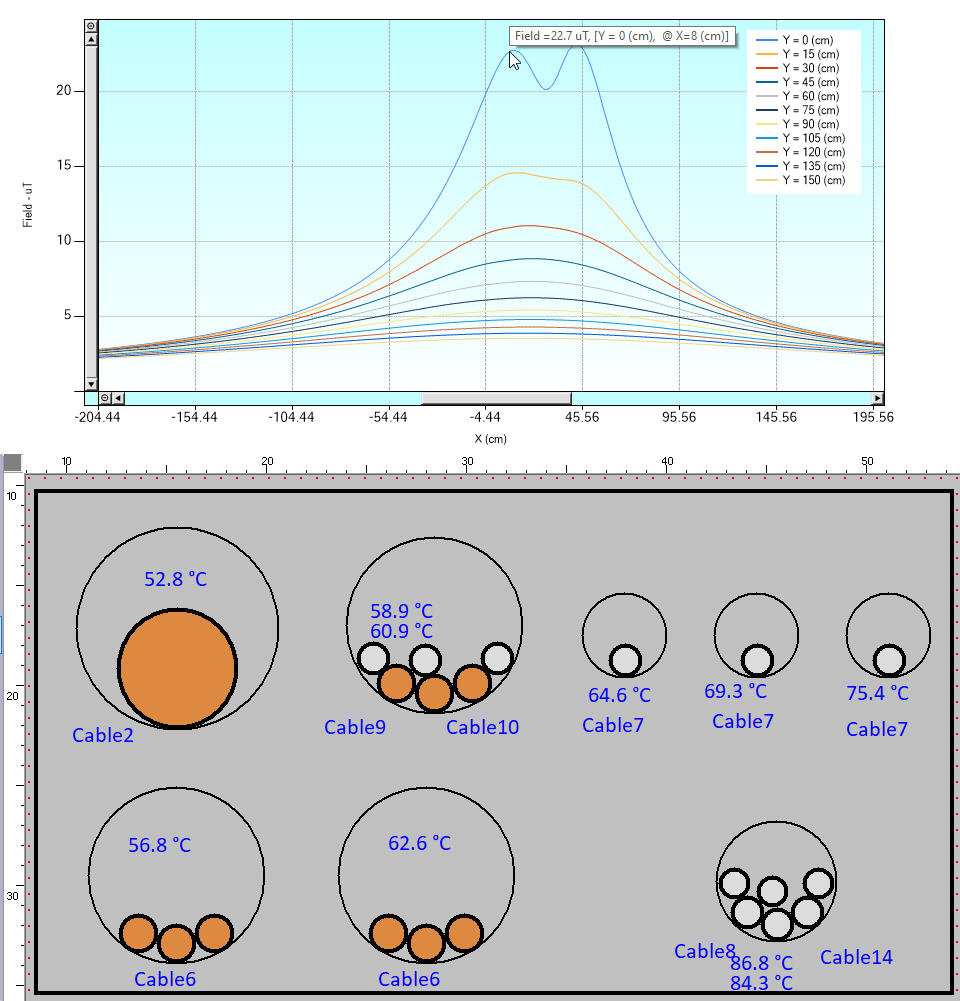

Underground Conductor Electromagnetic Fields graph

Videos

Underground Conductor Electromagnetic Fields Analysis

Underground Conductor Electromagnetic Fields Analysis

The ETAP electromagnetic field exposure analysis tool is integrated with the underground cable systems (UGS) analysis module, and it determines the worst-case electromagnetic fields produced by conductors in underground raceways. The tool handles various 3-phase conductor layouts including flat and trefoil as well 1/C and 3/C 1-phase cables, dc cables, etc. The tool uses balanced & unbalanced load-flow currents and angles to determine the location and surface-level height of the worst-case magnetic field because of all conductors in the raceway.
