Situationally Intelligent Power Plant Controller
Situationally Intelligent Power Plant Controller
ETAP PPC interfaces with the renewable inverters, Battery Energy Storage Systems (BESS), power conditioning devices such as STATCOM and capacitor banks. The interface is two-way communication between these devices and ETAP PPC. Real-time information is measured from these devices and analyzed in real-time to provide closed-loop (supervisory) or open-loop/manual (advisory) control.
ETAP PPC supports both national and international grid codes, thus enabling grid-compliant feed-in from renewable systems at medium-voltage and high-voltage levels. ETAP PPC facilitates comprehensive regulation of active and reactive power as well as the voltage of heterogeneous renewable systems.

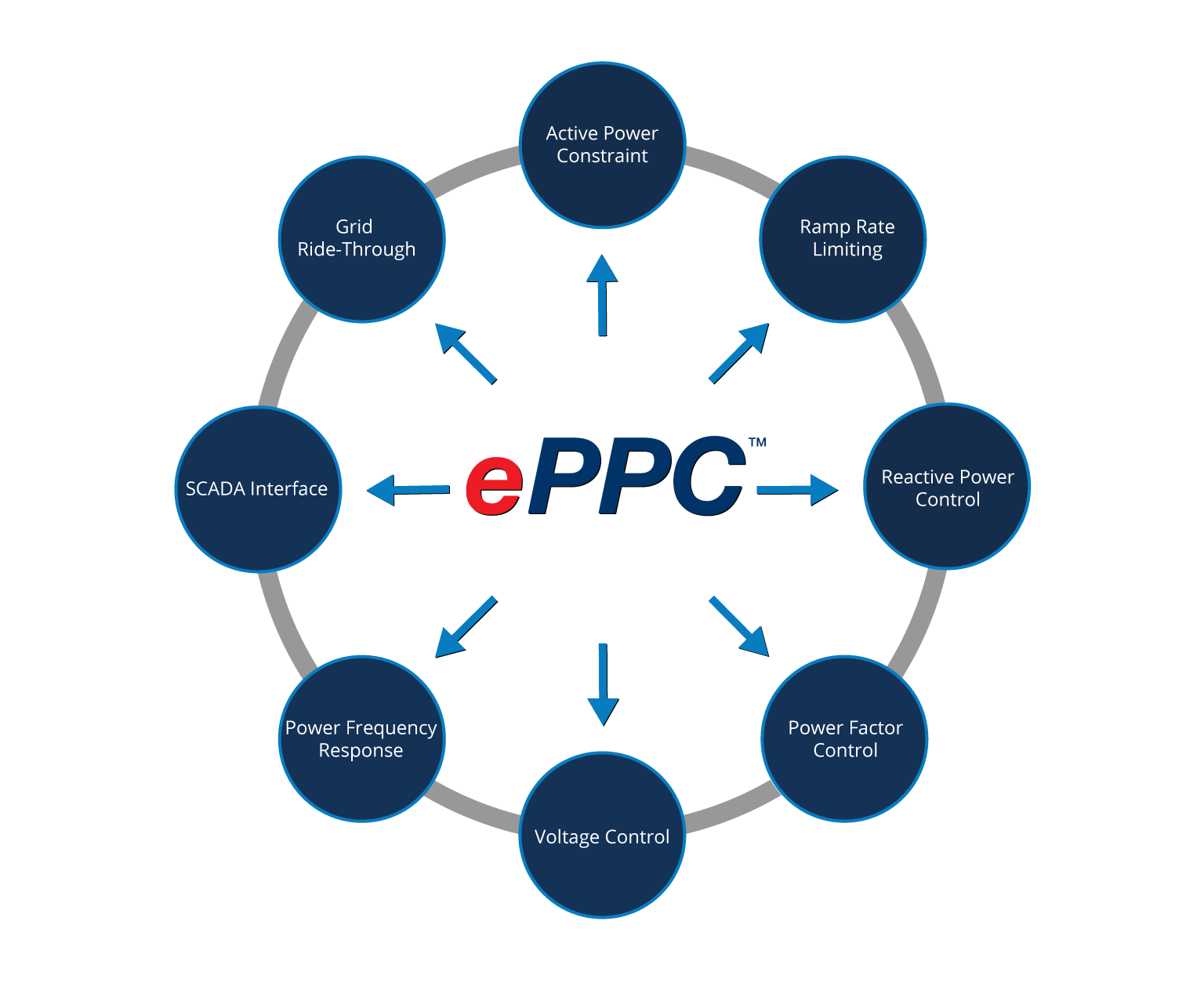

Key Features & Capabilities
- Comprehensive Regulation of Active, Reactive Power & Voltage
- High-Accuracy Power Quality Analyzer records all Grid Parameters during Operation
- Fast and Stable Control at the Grid Connection Point
ETAP PPC supports both national and international grid codes, thus enabling grid-compliant feed-in from PV systems at medium-voltage and high-voltage levels.
ETAP PPC facilitates comprehensive regulation of active and reactive power as well as the voltage of heterogeneous PV systems.
ETAP PPC graphical user interface provides optimal support during commissioning and requires no programming knowledge on your part. Parameterizing, instead of programming, allows for easy and quick compliance with complex grid connection regulations.
ETAP PPC supports customization through graphical and software programming means to handle evolving grid codes and interfaces with nearly all inverter controllers.
Essential control loop functions can be set with the predefined parameters to meet the Grid Utility requirements of most power plant projects.
For large power plants, challenging Grid Codes, or customer requests, the essential control loop functions are augmented with more advanced functions depending on the plant-specific needs.
Active Power Management
- Active Power Constraint
- Characteristic Curve Control
- Ramp Rate Control
- Reconnection Soft Start
- Safety Shutdown
- Over Frequency Control
- Under Frequency Control
Reactive Power Management
- Fixed Setpoint Control
- Characteristic Curve Control
- Ramp Rate Control
- Reactive Power Control
- Reactive Power Limitation
- Power Factor Control
- Voltage Control
- Capacitor, Reactor, STATCOM Control
- Overnight Reactive Power or Voltage Control
Energy Storage Management
- Frequency support
- Power smoothing / ramping
- SOC balancing with multiple BES
- SOC management
- Peak Power Shifting
Data Exchange
- Interface with ETAP SCADA
- Setpoint commands for signal monitoring
- Status signals for alarming
- Electrical parameters at PCC
- Environmental parameters at plant location
Dynamic Grid Support
Interactive features including LVRT, OVRT, FRS, FRT, Anti-islanding, active, and reactive power management.
Voltage Control
Maintains the grid voltage to the reference voltage at the POC by supplying or absorbing reactive power. The Voltage Control can be set without any droop or with a droop (between 0% and 10%).
Power Factor Control
Maintains a constant Power Factor at the POC, whatever the grid voltage or losses in the transformers of the power plant.
Constant Reactive Power Control
Maintains a fixed reactive power exchange at the POC, whatever the grid voltage and the power plant production.
Active Power Curtailment
For several reasons, like the overload of the lines, excess of intermittent energy production, the Grid Utility may request to curtail the production. Active power curtailment may be applied with or without ramp rate control.
Frequency Control
During an over-frequency event, the PPC can quickly decrease the active power injection at POC proportionally to the frequency deviation. During an under-frequency event and when an active power limitation is in progress, the PPC for the power plant can partially or fully release the active power limitation to participate in grid stability.
